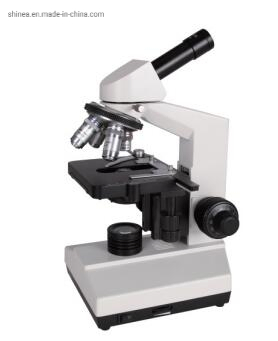

107bn
Viewing head :Monocular head inclined at 45 degree ,360 Rotatable Eyepiece:WF10X,WF16 Wide field Eyepiece WF10X,WF16Objective :achromatic objectives 4X,10X,40XS,100XS(oil)Nosepiece:quadruple nosepiece Condenser:Abbe condenser NA1.25with Diaphragm . Filter Focusing system :Coaxial Coarse and fine Adj......
Send Inquiry
Product Description
Viewing head :Monocular head inclined at 45 degree ,360 Rotatable
Eyepiece:WF10X,WF16 Wide field Eyepiece WF10X,WF16
Objective :achromatic objectives 4X,10X,40XS,100XS(oil)
Nosepiece:quadruple nosepiece
Condenser:Abbe condenser NA1.25with Diaphragm . Filter
Focusing system :Coaxial Coarse and fine Adjustment ,Moving Range 30MM
Stage :double layer Mechanical stage 140*130,Moving range 75MM*45MM
Illumination :6V/20W halogm lamp brightness adjustment
Product single size :22*20.5*38CM
Eyepiece:WF10X,WF16 Wide field Eyepiece WF10X,WF16
Objective :achromatic objectives 4X,10X,40XS,100XS(oil)
Nosepiece:quadruple nosepiece
Condenser:Abbe condenser NA1.25with Diaphragm . Filter
Focusing system :Coaxial Coarse and fine Adjustment ,Moving Range 30MM
Stage :double layer Mechanical stage 140*130,Moving range 75MM*45MM
Illumination :6V/20W halogm lamp brightness adjustment
Product single size :22*20.5*38CM
