Product Description

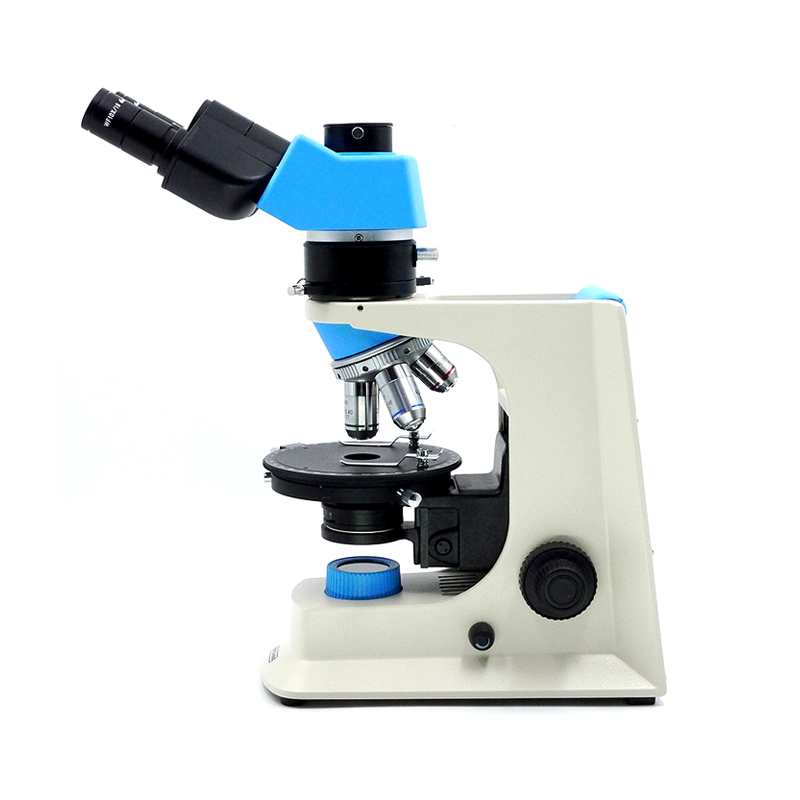

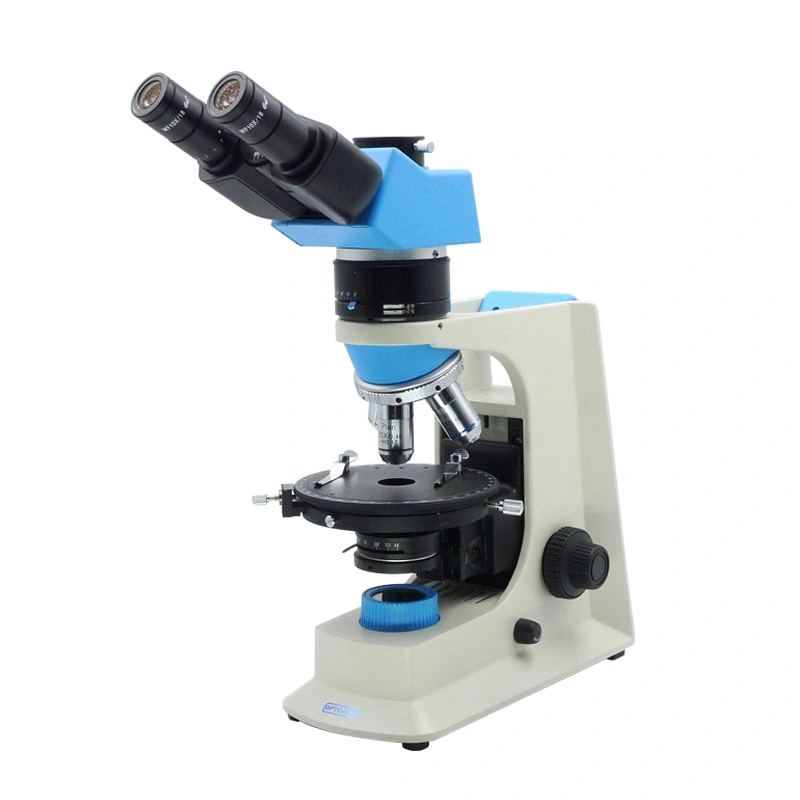

2603-B Trinocular Polarizing Microscope For Sale

2603 Polarizing Microscope, with full polarizing function and high quality performance, is the best tools for school and student use.

--Infinity achromatic correction optical system, infinity without stress flat field objective.

--Polarizer unit built-in condenser, with scale, rotatable 360°, can be locked.

--Analyzer unit insert to polarizing media, rotatable 0-90°, can be moved out of optical path.

--Optical compensator: λ slip (first class red), 1/4λ slip.

2603	-A	-B
Head	Binocular	Trinocular
	Seidentopf Head, Inclined 30°, Rotatable 360°, Interpupillary Distance 48-75mm, Left Eyepiece Tube Diopter Adjustable +/-5°, Trinocular Head Light Split 20:80.
Eyepiece	WF10x/18mm, 1 pc
	WF10x/18mm, With Micrometer 0.1mm Div., 1 pc
Nosepiece	Quadruple, Center Adjustable
Objective	Non-Stress Infinity Plan Objective
	4x/0.10
	10x/0.25
	20x/0.40(S)
	40x/0.65(S)
Stage	Round stage, Rotatable 360°, Center Adjustable, Division 1°, Vernier Division 6'
Condenser	Abbe N.A.1.25, With Iris Diaphragm, Non Stress
Focusing	Coaxial Coarse and Fine Focusing Knob, Coarse Focusing Range 26mm, Fine Focusing Scale 2μm, With Tension Adjustment
Polarizing	Polarizer: Unit Built-in Condenser, With Scale, Rotatable 360°, Can Be Locked
	Analyzer: Unit Insert to Polarizing Media, Rotatable 0-90°, Can Be Moved Out Of Optical Path
	Polarizing Media, Between Head & Body, Including Compensator
	--Bertrand Lens, Built-in, Center Adjustable, Can Be Moved Out Of Optical Path
	--λ Slip (First Class Red)
	--λ/4 Slip
	--Quartz Wedge I~IV Class Slip
Illumination	Transmit 6V20W Halogen Lamp
Power	110V~240V Wide Range Voltage
