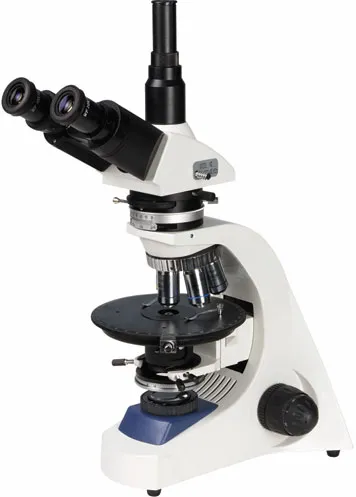

40X-600X Trinocular Head Transmission Research Polarizing Microscope Series with Infinity Optics (BM-148PLT)

40x-600x Trinocular Head Transmission Research Polarizing Microscope Series with Infinity Optics  (BM-148PLT)

1. Viewing Head
   Compensation Free Trinocular Head Inclined at 30°(55mm-75mm)
2. Eyepiece
   10×Gridding Eyepiece
   10×eyepiece with reticule
   WF10×/22mm
3. Nosepiece
   Quintuple Nosepiece with centering adjustable
4. Objective
     Stress-free Infinity Plan Objectives: 4×,10×,25×,40×(s),60 ×(s)
5. Stage: Rotary stage ,Size: 172mm ,Moving Range:360°
6. Condenser:Swing type N.A.1.25 Abbe condenser with iris diaphragm
7. Testing Piece
   Gypsum 1λ testing piece
   Mica 1/4λ
   Quartz wedge testing piece
8. Focusing
   Coaxial coarse & fine focusing   adjustmen. With rack and pinion
   mechanism. Fine focusing scale value 0.002mm
9. Illuminator: High brightness fixed illumination
10. Light Source:Halogen Bulb 6V/30W.AC85V230V, Adjustable Brightness
11. Checking Tool
    0.01mm Micrometer
