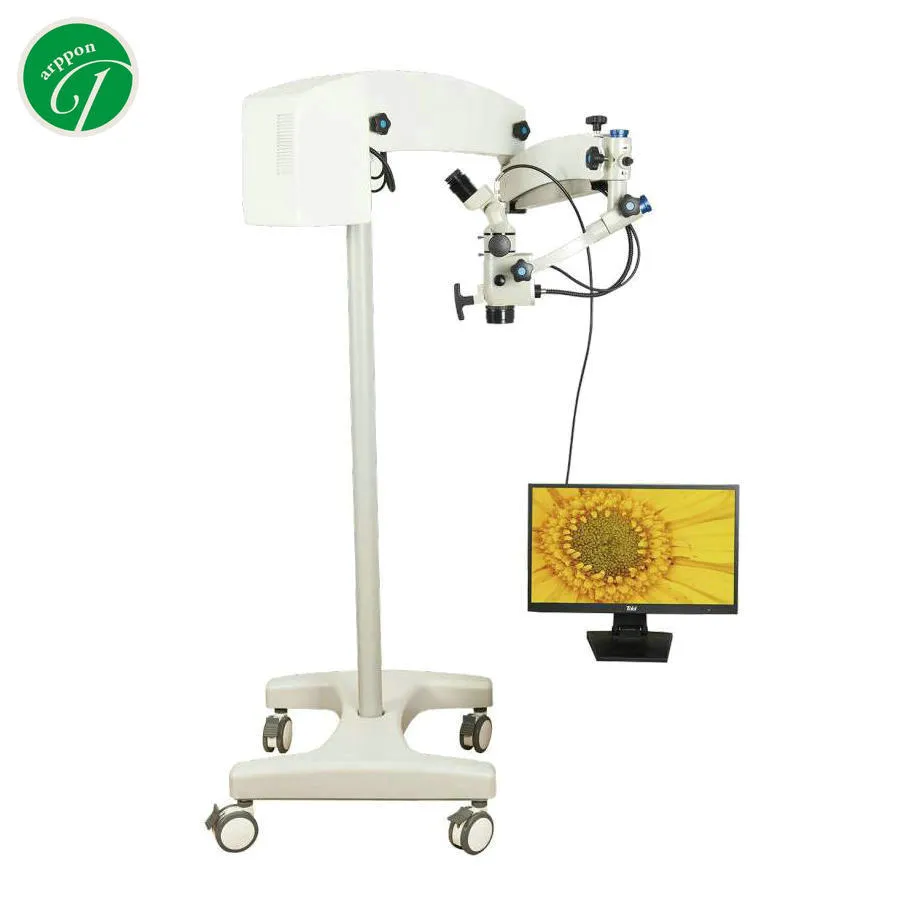

45 Degree Zeiss Type Ent Microscope Surgical Microscope Ear Nose Throat Surgery
Surgical microscopeThe 3600 sugical operation microscope, suitable for the mirco-surgery, can be suitable for the micro-operations and check of dept. of stomatology, dentistry,ENT dept, cranial surgery, department of neurosurgery. Can also carry on teaching, take pictures and make a video recoding b......
Send Inquiry
Product Description
The 3600 sugical operation microscope, suitable for the mirco-surgery, can be suitable for the micro-operations and check of dept. of stomatology, dentistry,ENT dept, cranial surgery, department of neurosurgery. Can also carry on teaching, take pictures and make a video recoding besides observing deep cavity.
Features:

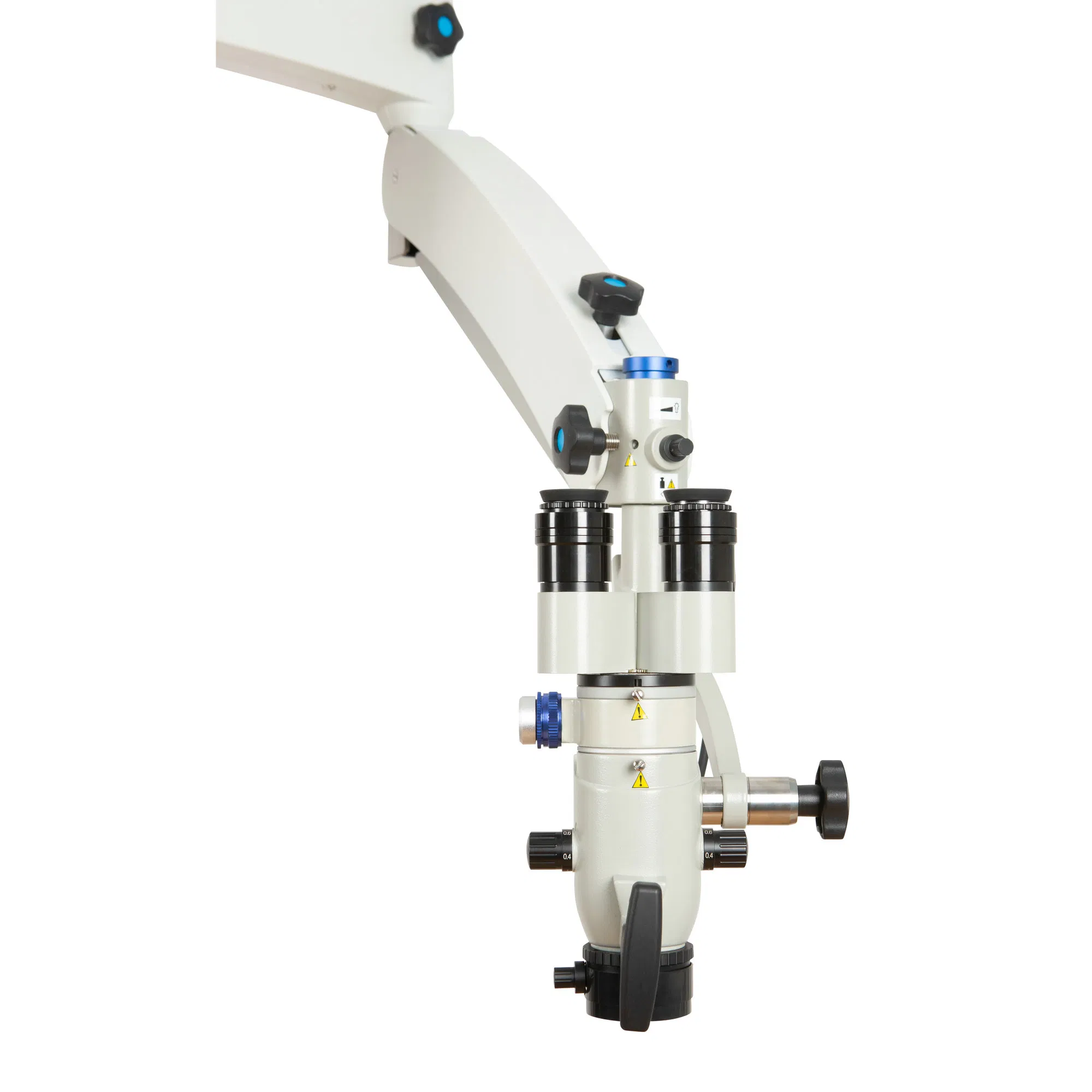

1. The main scope adopts optical gemel binocular. The max tilting angle:180 degree.
2. Objective lens 200mm & 250mm with fine micro-focusing adjustment knob.(the range of adjusting: 20mm),if you need, you may select 250mm apo-achromatic objective lens.
3. Easily maneuverable optical head with tension control knobs and 2 handles (One front handle is option). The optical head can be stop at any position in the moving range.
4. Optical head can be folded up to the arm at highest position. In that way you will have a clear and free working area when you don't use microscope.
5. Built-in orange filter and green filter. You can select the filters by a knob located at the same place of the fiber optic cable with is connected to the back of optical head.
6. Infinity corrected optical system / coaxial illumination. Fiber optic illumination system with brightness adjustment knob. The knob is just over the optical head. It is very convenience to adjust the brightness.
7. Two 150W Halogen bulbs with through the lens coaxial lighting and " change on the fily" lamp selector. Should a lamp fail during an examination, this feature allows a quick change from one lamp to another resulting in an uninterrupted procedure.
8. A special switch is fitted into the arm. The lamp will keep "on" when the optical head moves in normal working range and the lamp will turn off automatically while the optical head moves out of normal working range.
| Magnification | 5 Steps magnification changer . 0.4X,0.6X,1.0X,1.6X,2.5X |

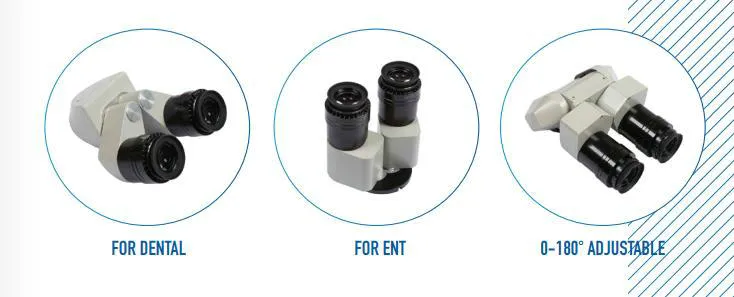

| Binoculars | 45 degree inclined binocular f'=170mm Straight binocular f'=170mm 0-180 degree inclinable binocular ,f'=170mm |
| Eyepiece | 12.5X,wide filed and adjustable eyecup,10X/16X/20X for options |
| Total magnification and visual field | f'=250mm ,12.5X eyepiece ,45 degree binocular 3.4X 5.4X 8.5X 13.5X 21.2X 65mm 42mm 26mm 16mm 10mm |
| Focus | manual ,with rang of 12 mm f'=200mm (with fine focus ,option) f'=250mm (with fine focus ) f'= 300mm /350mm /400mm (option) |
| Illumination | coaxial illumination by optical light -guide system |
| *Halogen | 15V/150W ,two bulbs,continuously light-intensity adjustment,50000Lux(f'=250mm) |
| *LED | 60Watts ,over 50000 hours life time 75000Lux (f'=300mm) 90000Lux (f'=250mm) |
| *field of view | 50mm (f'=250mm) |
| Filter | green /yellow for Dental ,or green/blue for ENT |

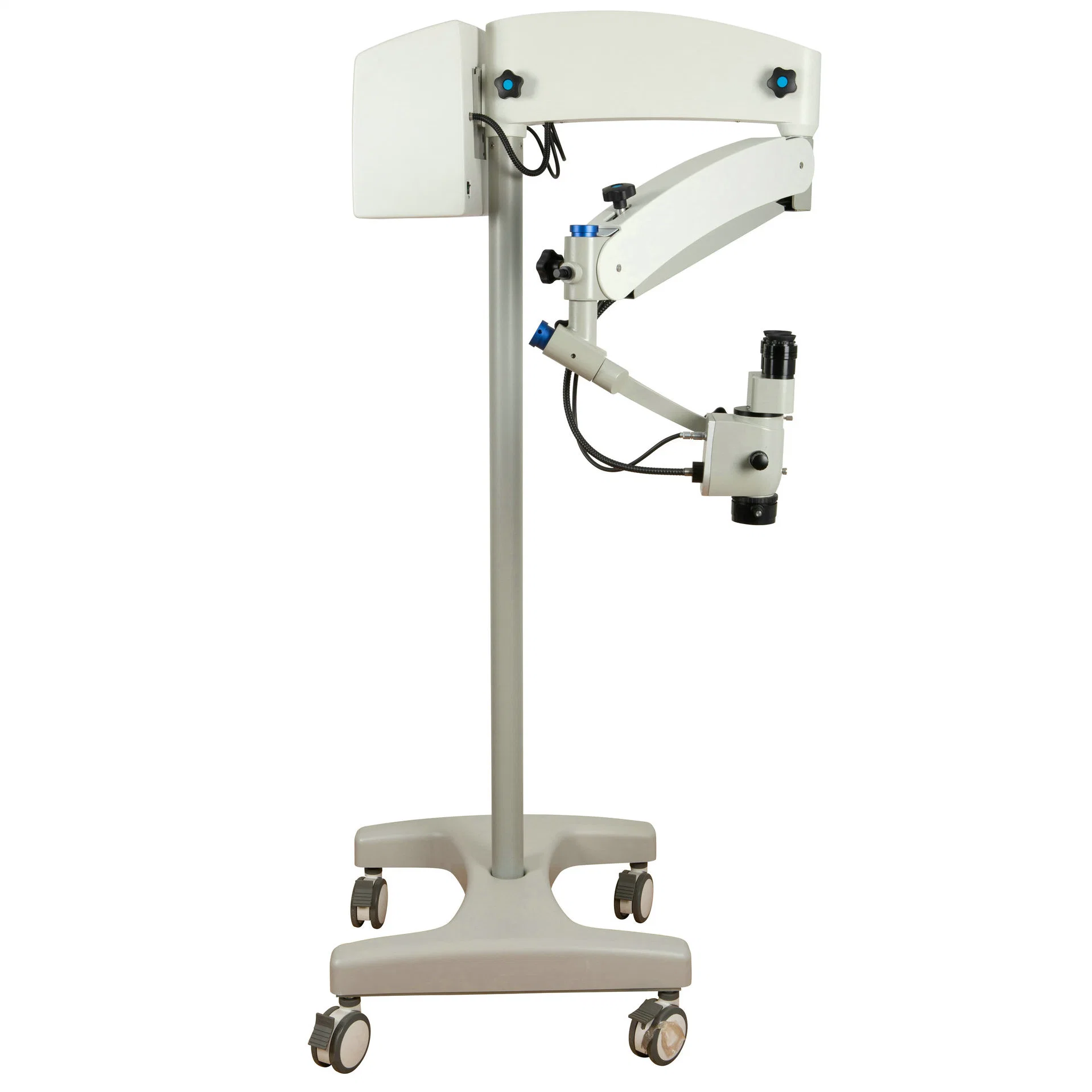

| Stand type and Gross weight | floor stand 125kg wall mount:80kg ceiling mount:95kg |

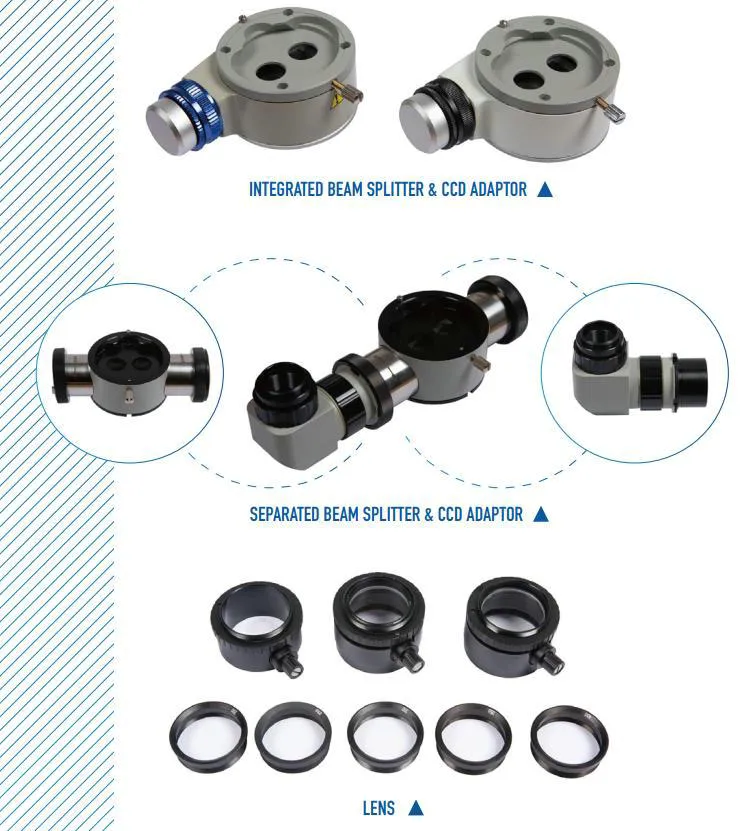

| Accessories | Beam splitter 50/50 or 20/80 Adaptor for 1/3 video camera Integrated beam splitter and adaptor Video system :built-in 1/2 inch CCD camera with 540TVL Or HDMI 1920*1080P ,1/3 inch HD CMOS sensor |

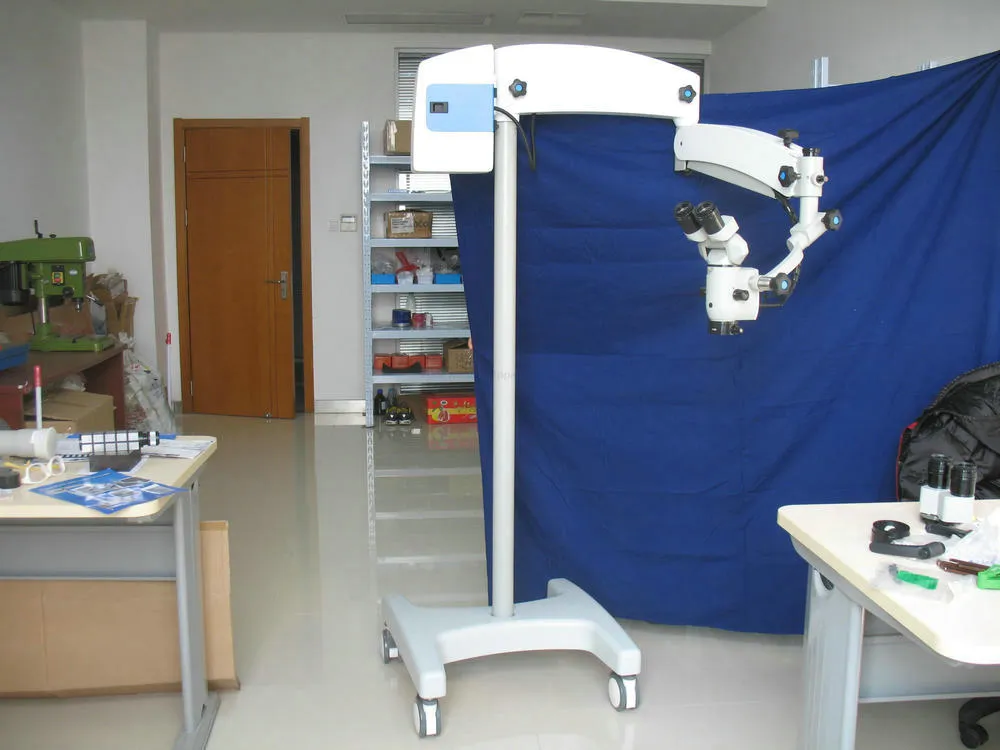

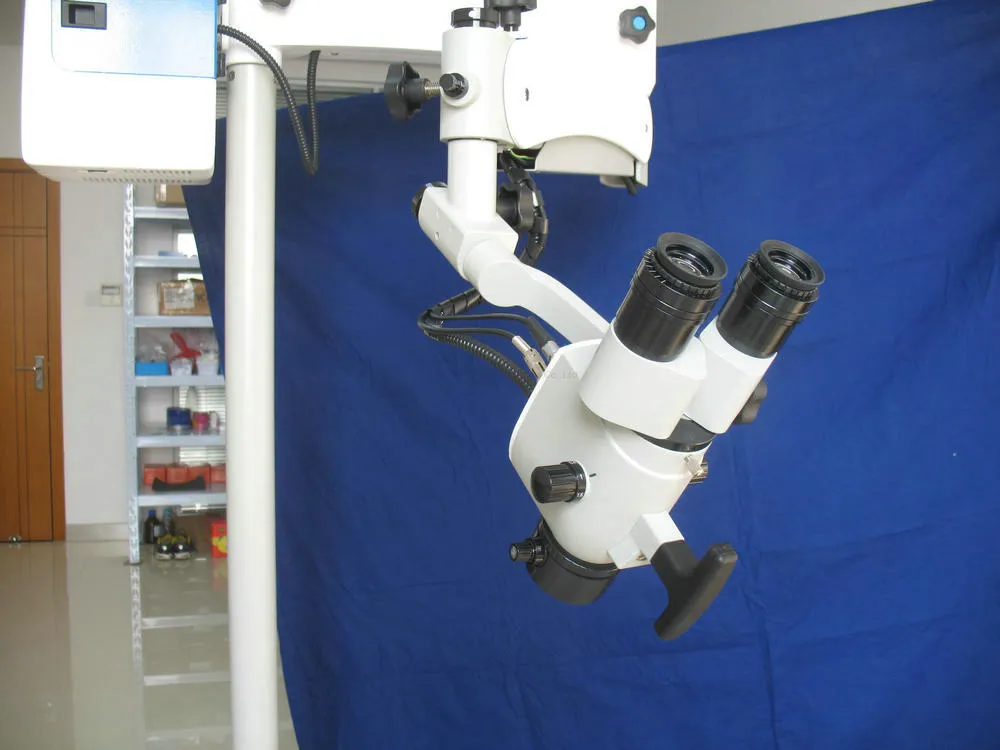

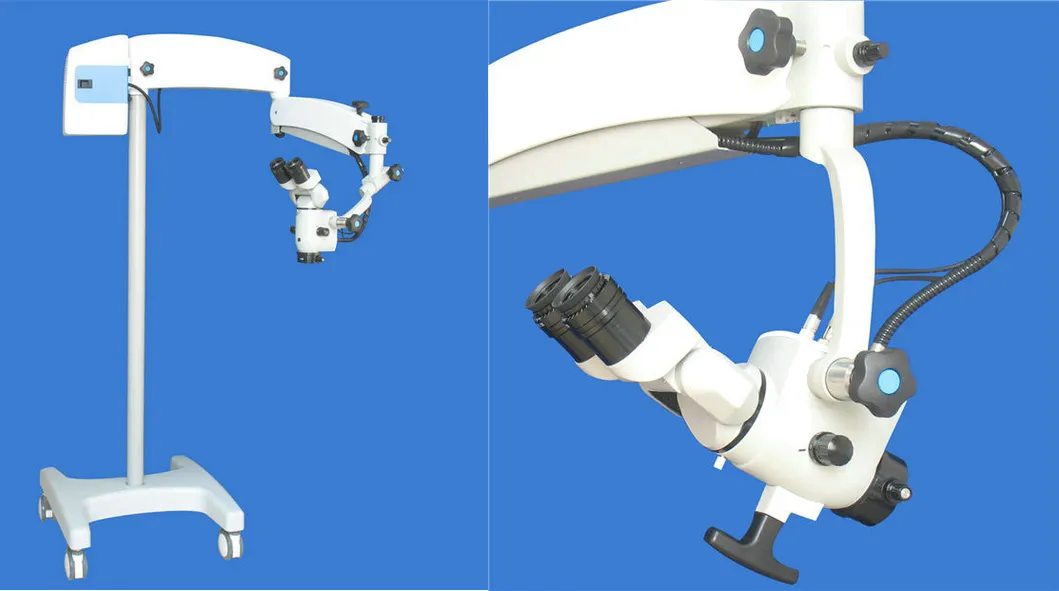

Detailed images:
Company Information:
Wuhan Darppon Medical Technology CO., LTD, one of the leading medical equipment manufacturers and distributors in China since 2009.
DARPPON engaged in supplying various medical equipments such as Electrosurgical Unit, Patient Monitor, Electrocardiograph, Medical Imaging System, Infusion/Syringe Pump, Defibrillator, Home Care and Veterinary products, etc. All of our products have passed ISO 1234 and CE certificates.
Our cusomers are world wild over 100 countries, welcome to visit our web https://darppon.en.made-in-china.com for more information, we are always there ready to give you best service!
