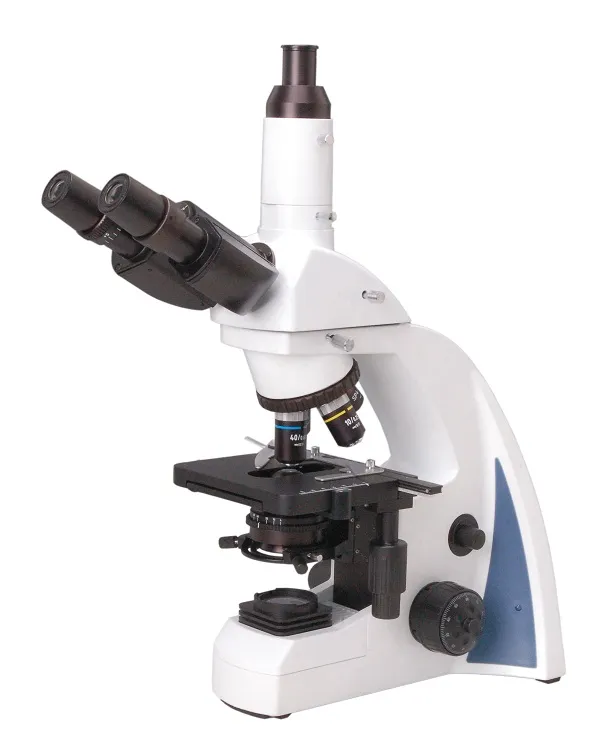

              Bestscope BS-2040t Trinoculr Biological Microscope with Infinite Optical System
              • Bestscope BS-2040t Trinoculr Biological Microscope with Infinite Optical SystemBestscope BS-2040t Trinoculr Biological Microscope with Infinite Optical System
              • Bestscope BS-2040t Trinoculr Biological Microscope with Infinite Optical SystemBestscope BS-2040t Trinoculr Biological Microscope with Infinite Optical System
              • Bestscope BS-2040t Trinoculr Biological Microscope with Infinite Optical SystemBestscope BS-2040t Trinoculr Biological Microscope with Infinite Optical System

              Bestscope BS-2040t Trinoculr Biological Microscope with Infinite Optical System

              IntroductionWith precision machining equipment and advanced alignment technology, BS-2040 series binocular and trinocular microscopes are classical biological microscopes. Infinite optical system offers very high quality images. Digital cameras can be added to the trinocular head or eyepiece tube fo......

              Send Inquiry

              Product Description

              Introduction
              With precision machining equipment and advanced alignment technology, BS-2040 series binocular and trinocular microscopes are classical biological microscopes. Infinite optical system offers very high quality images. Digital cameras can be added to the trinocular head or eyepiece tube for digital image capture and analysis.


              Features
              1. Infinite Optical System.
              2. Extra Wide Field Eyepiece EW10× /20 with Diopter Adjustment is optional.
              3. Sliding-in Centerable Condenser.
              4. Easy carrying Handle.


              Applications
              BS-2040 binocular and trinocular microscopes are ideal instrument in biological, histological, pathological field and can be widely used in medical and sanitary establishments, laboratories,institutes, academic laboratories, colleges and universities.
              Specifications
              Model BS-2040BBS-2040T
              Optional SystemInfinite Optional SystemYesYes
              Viewing HeadSeidentopf binocular head, 30° inclined, Interpupillary 48-75mmYes
              Seidentopf trinocular head, 30° inclined, Interpupillary 48-75mm Yes
              EyepieceWide Field Eyepiece WF 10×/18YesYes
              Extra Wide Field Eyepiece EW10×/20 with Diopter AdjustmentOptionalOptional
              ObjectiveInfinite Semi-plan Achromatic ObjectivesYesYes
              10×YesYes
              40×YesYes
              100×YesYes
              Infinite Semi-plan Achromatic Objectives 20×, 60×YesYes
              Infinitive Plan Achromatic Objectives 4×, 10×, 20×, 40×, 60×, 100×YesYes
              NosepieceBackward Quadruple NosepieceYesYes
              Backward Quintuple NosepieceYesYes
              StageDouble Layers Mechanical Stage 140mm×140mm/ 75mm×50mmYesYes
              CondenserSliding-in Centerable Condenser NA1.25YesYes
              FocusingCoaxial Coarse & Fine Adjustment, Fine Division 0.002mm,
               Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per
               Rotation, Moving Range 20mm
              YesYes
              Illumination3W LED Lamp, Brightness AdjustableYesYes
              6V/20W Halogen Lamp, Brightness AdjustableOptionalOptional
              Optional
              accessories
              Phase Contrast KitOptionalOptional
              Dark Field AttachmentOptionalOptional
              YX-2 Epi-fluorescent AttachmentOptionalOptional
              FL-LED Epi-fluorescent AttachmentOptionalOptional
              Package1pc/carton, 35cm*35.5cm*55.5cm, gross weight: 12kgYesYes
              Note: Yes Standard Outfit, Optional Standard Optional
