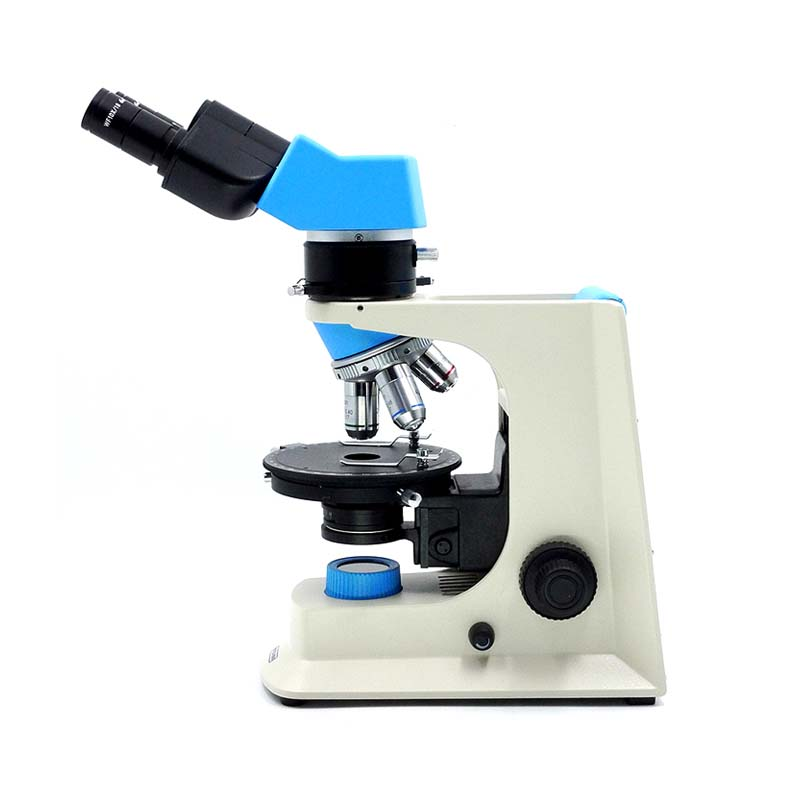

Biological Application Binocular Polarizing Microscope
A15.2603-A Biological Application Binocular Polarizing MicroscopeA15.2603 Polarizing Microscope, with full polarizing function and high quality performance, is the best tools for school and student use.--Infinity achromatic correction optical system, infinity without stress flat field objective.--Po......
Send Inquiry
Product Description
A15.2603-A Biological Application Binocular Polarizing Microscope
A15.2603 Polarizing Microscope, with full polarizing function and high quality performance, is the best tools for school and student use.
--Infinity achromatic correction optical system, infinity without stress flat field objective.
--Polarizer unit built-in condenser, with scale, rotatable 360°, can be locked.
--Analyzer unit insert to polarizing media, rotatable 0-90°, can be moved out of optical path.
--Optical compensator: λ slip (first class red), 1/4λ slip.
A15.2603 | -A | -B |
Head | Binocular | Trinocular |
Seidentopf Head, Inclined 30°, Rotatable 360°, Interpupillary Distance 48-75mm, Left Eyepiece Tube Diopter Adjustable +/-5°, Trinocular Head Light Split 20:80. | ||
Eyepiece | WF10x/18mm, 1 pc | |
WF10x/18mm, With Micrometer 0.1mm Div., 1 pc | ||
Nosepiece | Quadruple, Center Adjustable | |
Objective | Non-Stress Infinity Plan Objective | |
4x/0.10 | ||
10x/0.25 | ||
20x/0.40(S) | ||
40x/0.65(S) | ||
Stage | Round stage, Rotatable 360°, Center Adjustable, Division 1°, Vernier Division 6' | |
Condenser | Abbe N.A.1.25, With Iris Diaphragm, Non Stress | |
Focusing | Coaxial Coarse and Fine Focusing Knob, Coarse Focusing Range 26mm, Fine Focusing Scale 2μm, With Tension Adjustment | |
Polarizing | Polarizer: Unit Built-in Condenser, With Scale, Rotatable 360°, Can Be Locked | |
Analyzer: Unit Insert to Polarizing Media, Rotatable 0-90°, Can Be Moved Out Of Optical Path | ||
Polarizing Media, Between Head & Body, Including Compensator | ||
--Bertrand Lens, Built-in, Center Adjustable, Can Be Moved Out Of Optical Path | ||
--λ Slip (First Class Red) | ||
--λ/4 Slip | ||
--Quartz Wedge I~IV Class Slip | ||
Illumination | Transmit 6V20W Halogen Lamp | |
Power | 110V~240V Wide Range Voltage | |
Product Application
A15.2603 series is a simple polarizing microscope with advanced multifunction. It can observe mineral crystal figure, color and interference color and also identify its optical performance. It is a good microscope used in geology, petroleum, coal, Chemical fiber, medical treatment and physic inspection. It is also widely used in academic demonstration and research.
Packaging & Delivery
Packing : Compact Design Box and Strong Master Carton
Shipping Time : 1-5 Days From Stock
