LED Illumination Metallurgical Microscope ( LIM -305)
LED Illumination Metallurgical Microscope (LIM-305)Usage:Inverted Metallurgical Microscope LIM-305 is used to observe and identify the structure of various metal and alloy, widely used in institute and laboratoryFeature:1) Infinitive optical system assure the excellent optical functions2) Kohler ill......
Send Inquiry
Product Description

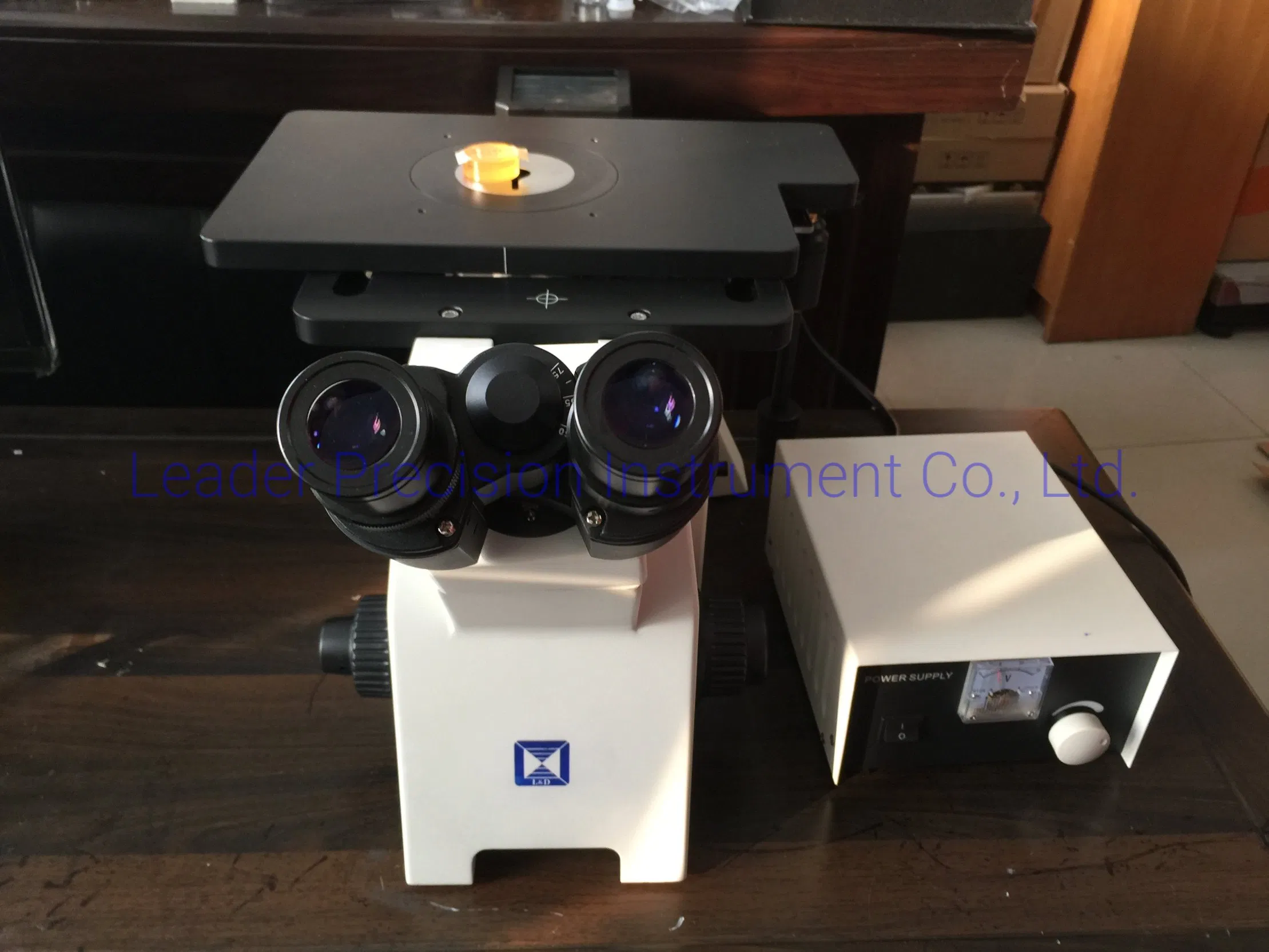

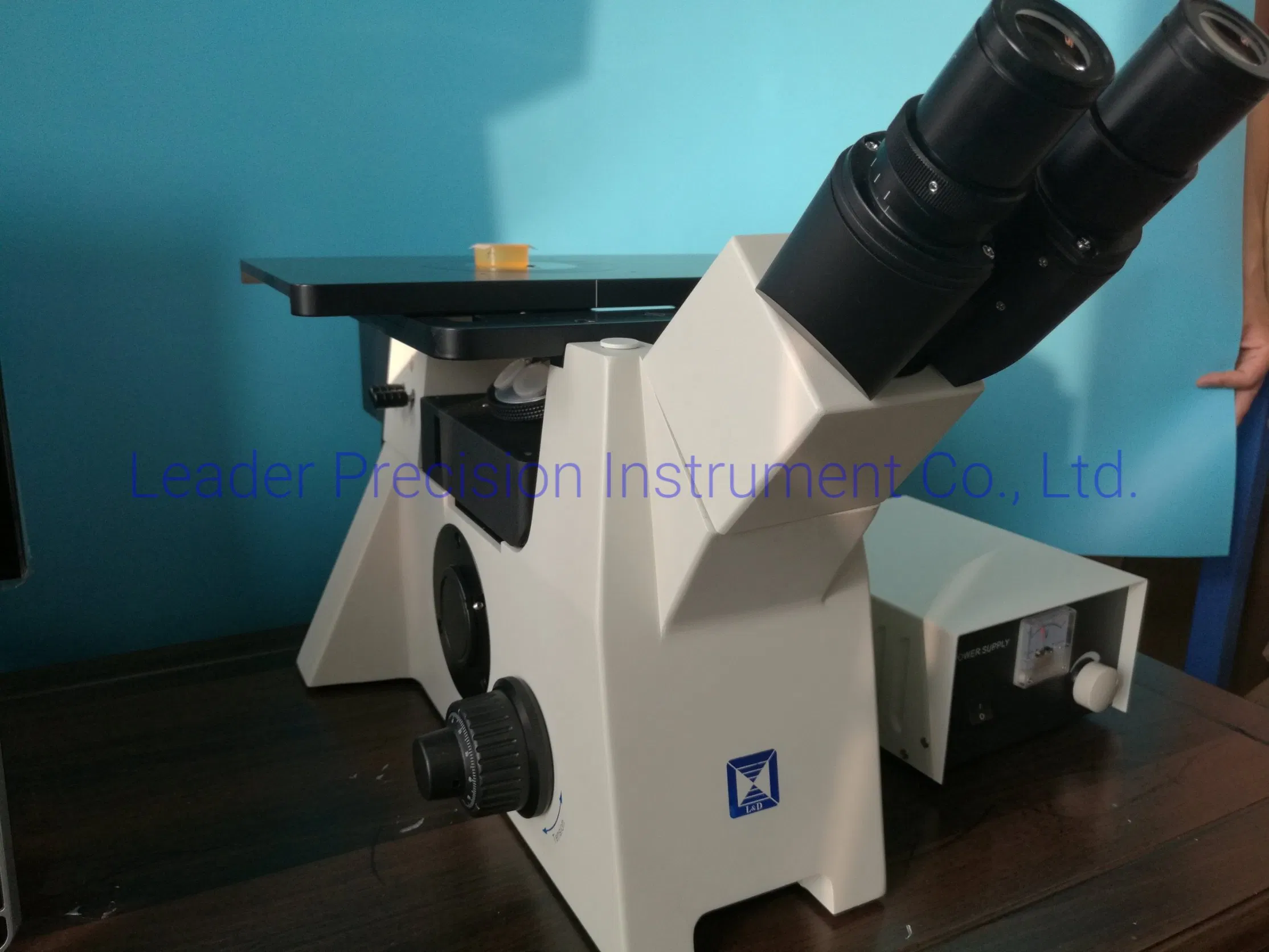

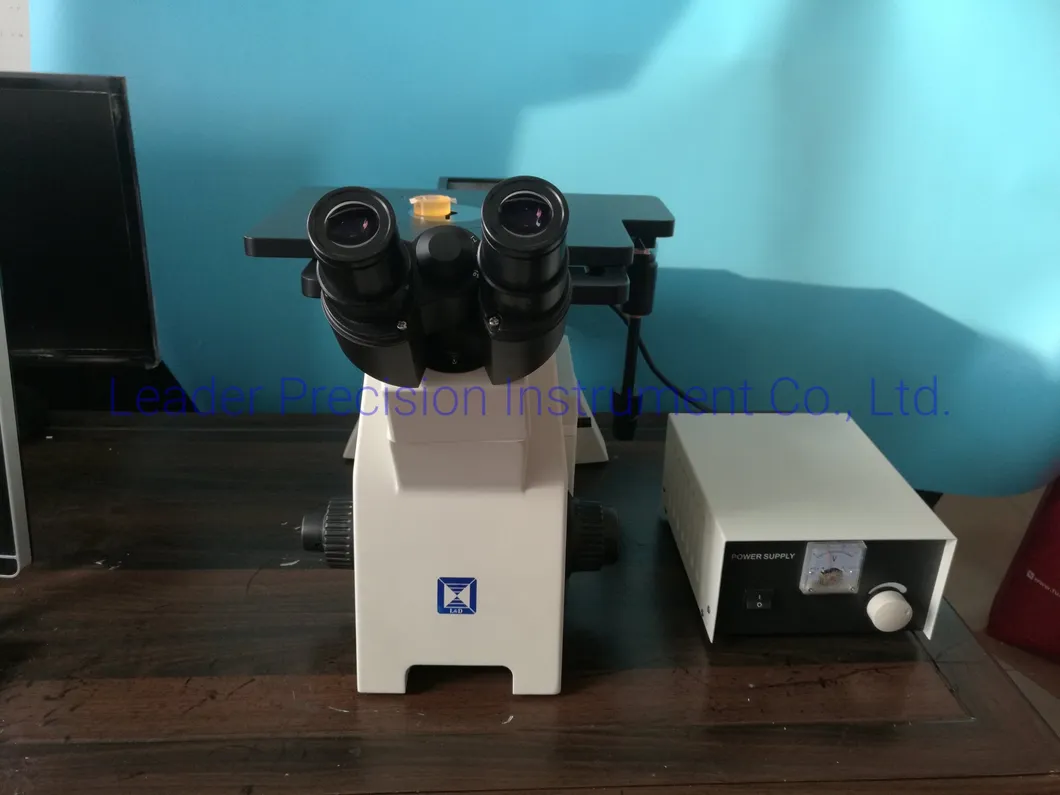

LED Illumination Metallurgical Microscope (LIM-305)
Usage:
Inverted Metallurgical Microscope LIM-305 is used to observe and identify the structure of various metal and alloy, widely used in institute and laboratory
Feature:
1) Infinitive optical system assure the excellent optical functions
2) Kohler illumination
2) Can connect digital CCD camera
Standard delivery:
Main unit: 1pcs
10x, 20x, 50x, 80x plan achromatic objective lens: 1pc each
12V/50W Osram halogen bulb: 1pcs
Green, blue and yellow filter: 1pcs each
0.01mm rule: 1pcs
Polarizer and analyzer: 1pcs
Anti-dust cover: 1pcs
Optional accessories:
5x, 100x(oil) plan achromatic objective
0.5X, 1X, C-mount adapter
5M Pixel digital CCD camera
Analysis software
Examine software
Usage:
Inverted Metallurgical Microscope LIM-305 is used to observe and identify the structure of various metal and alloy, widely used in institute and laboratory
Feature:
1) Infinitive optical system assure the excellent optical functions
2) Kohler illumination
2) Can connect digital CCD camera
Standard delivery:
Main unit: 1pcs
10x, 20x, 50x, 80x plan achromatic objective lens: 1pc each
12V/50W Osram halogen bulb: 1pcs
Green, blue and yellow filter: 1pcs each
0.01mm rule: 1pcs
Polarizer and analyzer: 1pcs
Anti-dust cover: 1pcs
Optional accessories:
5x, 100x(oil) plan achromatic objective
0.5X, 1X, C-mount adapter
5M Pixel digital CCD camera
Analysis software
Examine software
| Eyepiece | WF10X/20 |
| Objective lens | 10x, 20x, 50x, 80x |
| Mechanical movable stage | Size: 350*208mm Travel: 50mm*50mm |
| Interpupillary distance | 52mm-75mm |
| Binocular tube | Inclined 45º. |
| Diopter adjustment | ±5 diopter |
| Illumination | 12V/50W halogen bulb |
| Power supply | 110V/220V |
