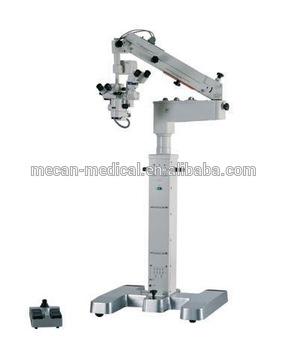

Mc5 Neurosurgery Dental Surgery Microscope

ENT/Neurosurgery/dental operation miroscope

Model: MC-5/B

The only full motorised model in the family of operation microscope. It can focus motorised, zoom motorised and change the visual angle motorised. The visual angle can stay in any angle you need. It is very convenient for E.N.T,dental surgery and Neurosurgery.



Specification

Eyepieces

magnification 12.5x, pupil distance adjustable range 55mm~75mm, diopter adjustment range +6D ~ -6D. Focus of second object lens 180mm.

Binocular tube

30°~90°variable angle binocular tube, add new pupil distance adjustment

Magnification

6:1 zoom, motorized continuous, magnification 3x~16x; field of view Φ74~Φ12mm

Coaxial assistant's binocular tube

Free-rotatable assistant stereoscope,all direction circumvolve freely, magnification 3x~16x; field of view Φ74~Φ12mm

Coaxial illumination

0°assistant's binocular can swing 90°or 270°agaainst binocular tube,illumination diameter of light spot Φ50mm, illumination intensity 100000lux

Objectives

f300mm (200mm, 250mm,350mm,400mm etc )

Focusing

motorized, range +/-25mm, speed 33s/whole distance

X-Y swing

The head can swing in X direction +/-45 °motorised, and in Y direction +90°,and can stop in any angle

Maximum length of arm

1200mm

New stand

swing angle of the carrier arm 0 ~300°,height from objective to floor

800mm

Foot switch

waterproof, 8 function steps

Weight

164kg
