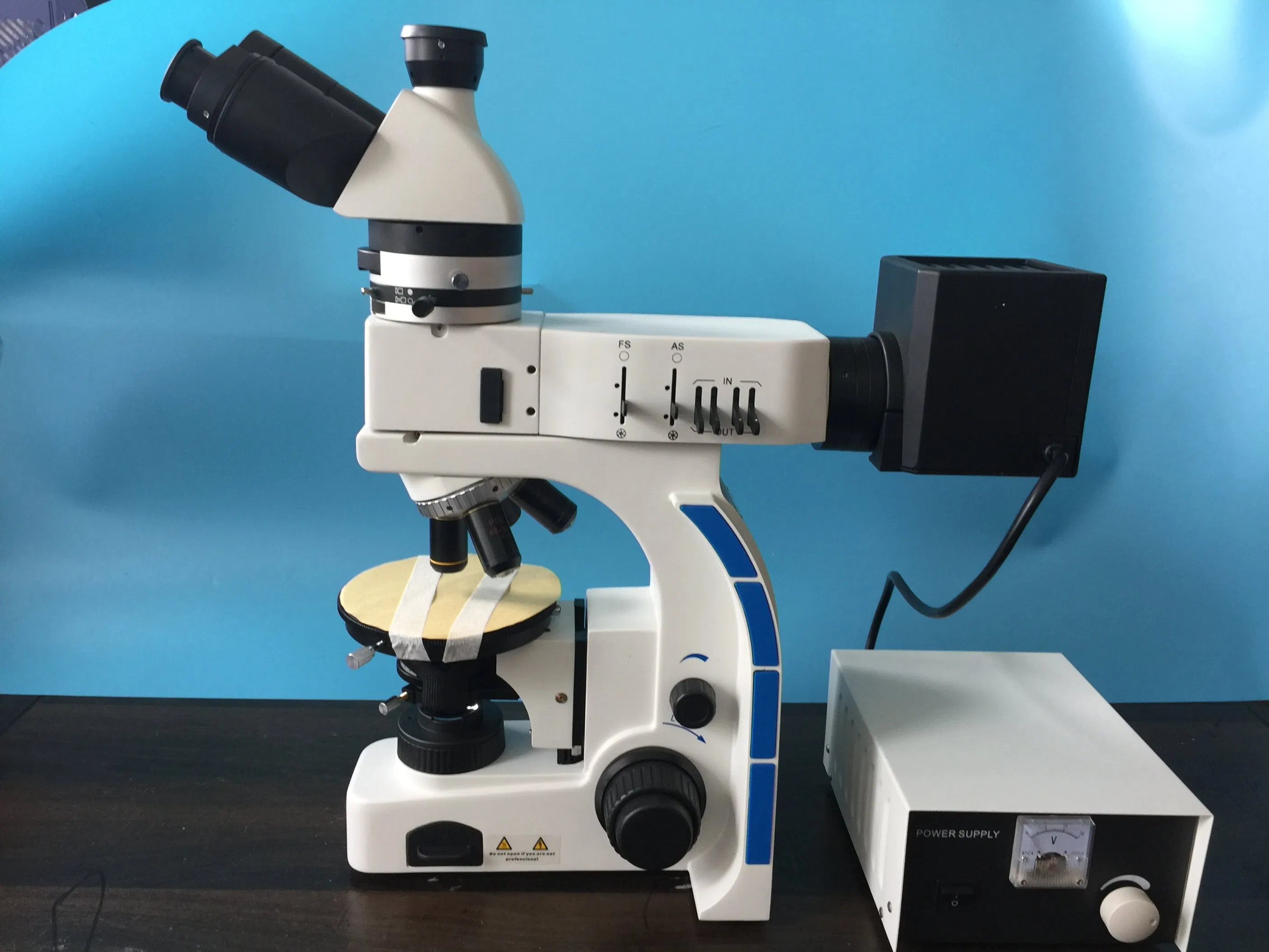

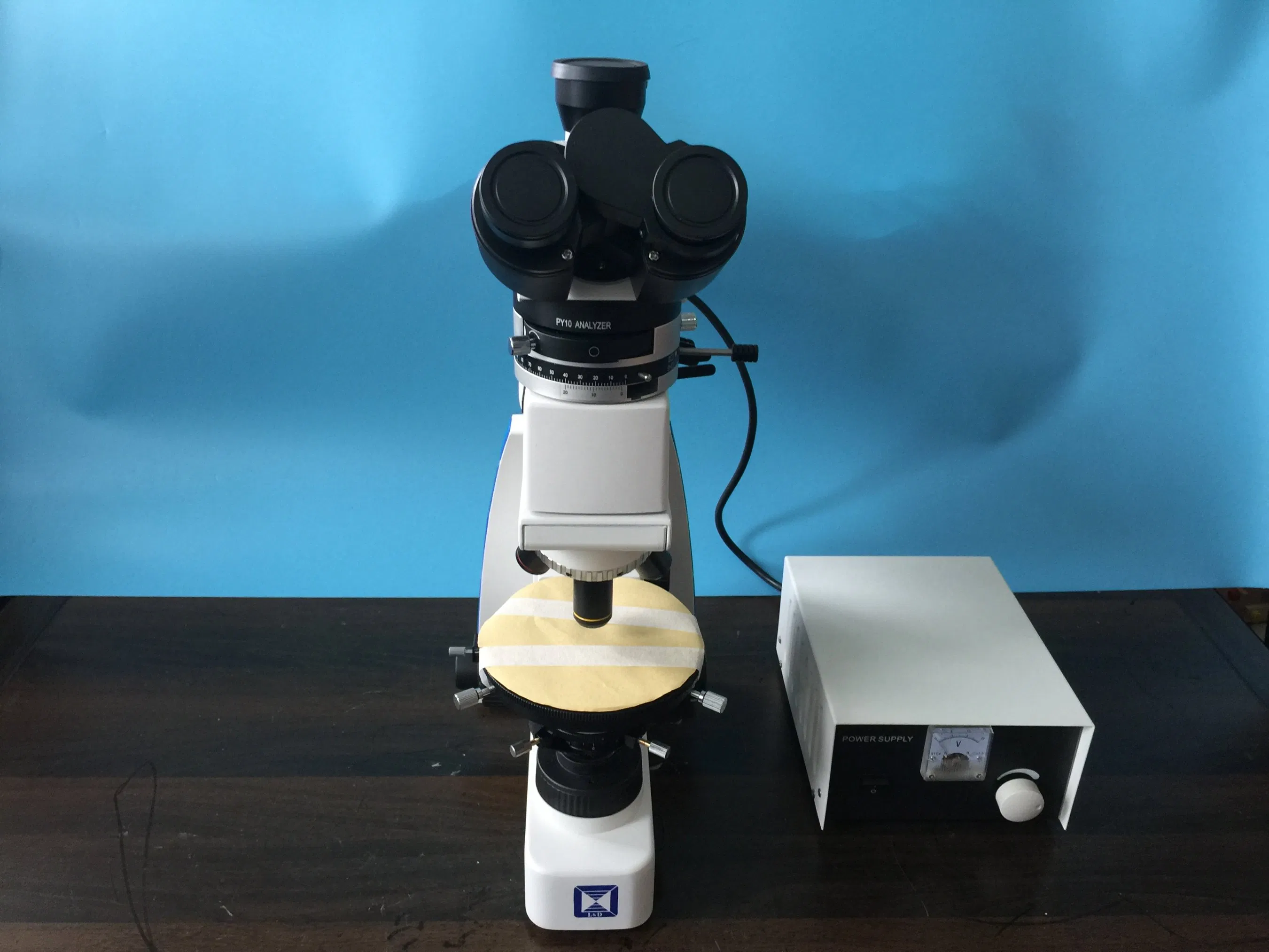

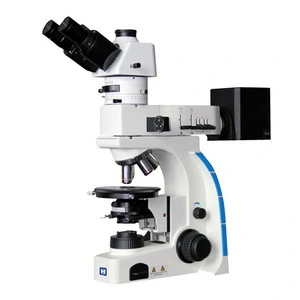

Routine Laboratory Trinocular Polarization Microscope (LP-302)
Routine Laboratory Trinocular Polarization Microscope (LP-302)LP-302 transmitted polarizing microscope is for observe and research the matter which have doube refraction features with polarizing light, user can make single polarizing observation, orthogonal observation, conoscope observation.LP-302 ......
Send Inquiry
Product Description
Routine Laboratory Trinocular Polarization Microscope (LP-302)
LP-302 transmitted polarizing microscope is for observe and research the matter which have doube refraction features with polarizing light, user can make single polarizing observation, orthogonal observation, conoscope observation.
LP-302 transmitted polarizing microscope is applied in geology, chemicals, physic and leechdom fields, widely used to observe the crystal of liquid macromolecule polymer, biomedical polymer and liquid crystal.
LP-302 polariziing microscope is the ideal instrument for scientific research and universities teaching demo
Standard delivery:
Main unit: 1pcs4
4x, 10x, 40x, 60x lens: 1pcs each
6V/20W Osram halogen bulb: 1pcs
Anti-dust cover: 1pcs
Option accessory:
2x, 20x, 100x(oil) plan achromatic objective
Reflective illumination (Order no: LPS-302)
LP-302 transmitted polarizing microscope is for observe and research the matter which have doube refraction features with polarizing light, user can make single polarizing observation, orthogonal observation, conoscope observation.
LP-302 transmitted polarizing microscope is applied in geology, chemicals, physic and leechdom fields, widely used to observe the crystal of liquid macromolecule polymer, biomedical polymer and liquid crystal.
LP-302 polariziing microscope is the ideal instrument for scientific research and universities teaching demo
Standard delivery:
Main unit: 1pcs4
4x, 10x, 40x, 60x lens: 1pcs each
6V/20W Osram halogen bulb: 1pcs
Anti-dust cover: 1pcs
Option accessory:
2x, 20x, 100x(oil) plan achromatic objective
Reflective illumination (Order no: LPS-302)
| Eyepiece | WF10X/20 |
| Objective lens | 4x, 10x, 40x, 60x |
| Rotary stage | Diameter: ¢ 142 |
| Interpupillary distance | 52mm-75mm |
| Trinocular tube | Inclined 30º |
| Diopter adjustment | ±5 diopter |
| Transmitted Illumination | 6V/20W halogen bulb |
| Surface illumination(optional) | 12V/50W halogen bulb |
| Power supply | 110V/220V |
