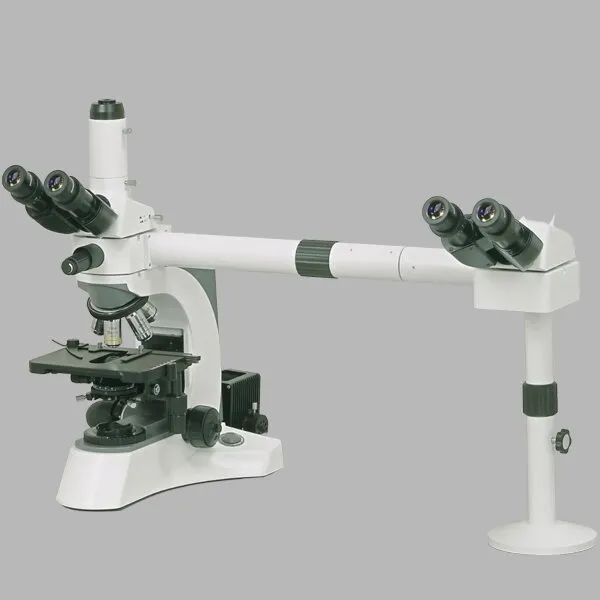

Teaching Microscope N204
Multi-viewing Microscope N-204Product DescriptionMulti-viewing microscopes allow people to observe specimen at the same time.With the features of infinite optical system, effective illumination, LED pointer and images coherence, it is widely used in clinic, scientific research and teaching demonstra......
Send Inquiry
Product Description
Product Description

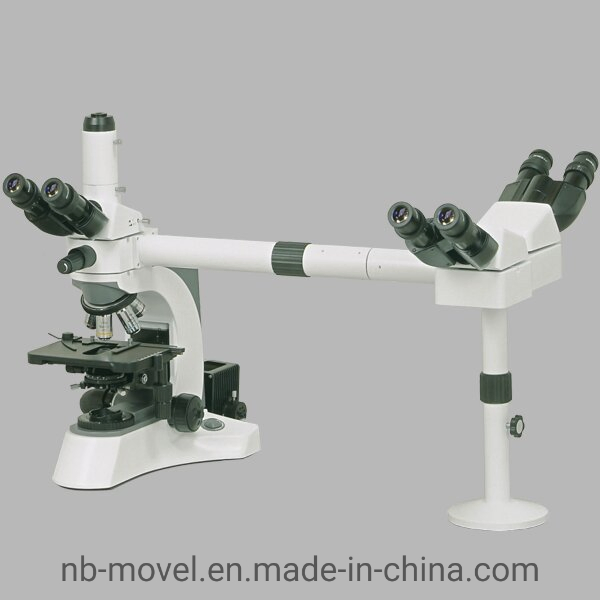

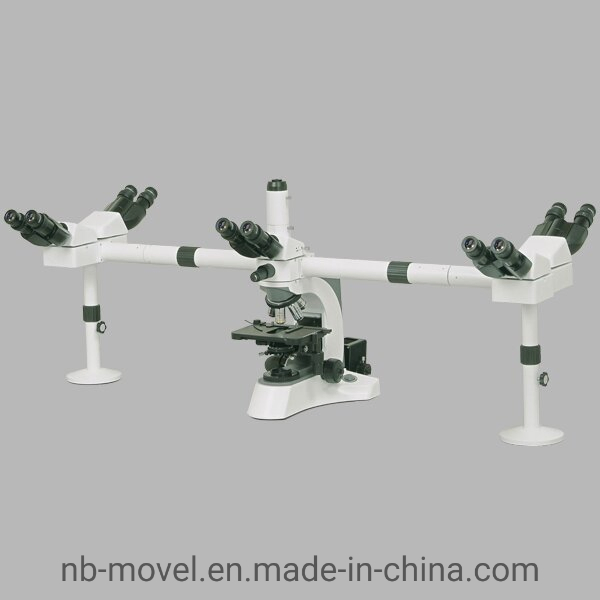

Multi-viewing microscopes allow people to observe specimen at the same time.
With the features of infinite optical system, effective illumination, LED pointer and images
coherence, it is widely used in clinic, scientific research and teaching demonstration.
Technical specifications | |
Optical System | Infinite Optical System |
Viewing Head | 1 Piece Compensation Free Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 48-75mm |
1 Pieces Compensation Free Binocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 48-75mm | |
Eyepiece | 4 Pieces Extra Wide Field Eyepiece EW10×20 |
Nosepiece | Inverse Quintuple Nosepiece |
Objective | Infinite Plan Achromatic Objective 4×,10×,40×,100× |
Condenser | Swing Condenser N.A.0.9/ 0.25 |
Focusing | Coaxial Coarse & Fine Focus Adjustment, Fine Division 0.001mm |
Stage | Double Layers Mechanical Stage 185×142mm, Moving Range 75×55mm |
Kohler Illumination | External Illumination, Halogen Lamp 24V/ 100W |
Pointer | Green LED Pointer , Brightness Adjustable |
Two Color LED Pointer , Brightness Adjustable | |
Photo Attachment |
|
Video Adapter | C Mount 1× |
C Mount 0.5× | |
