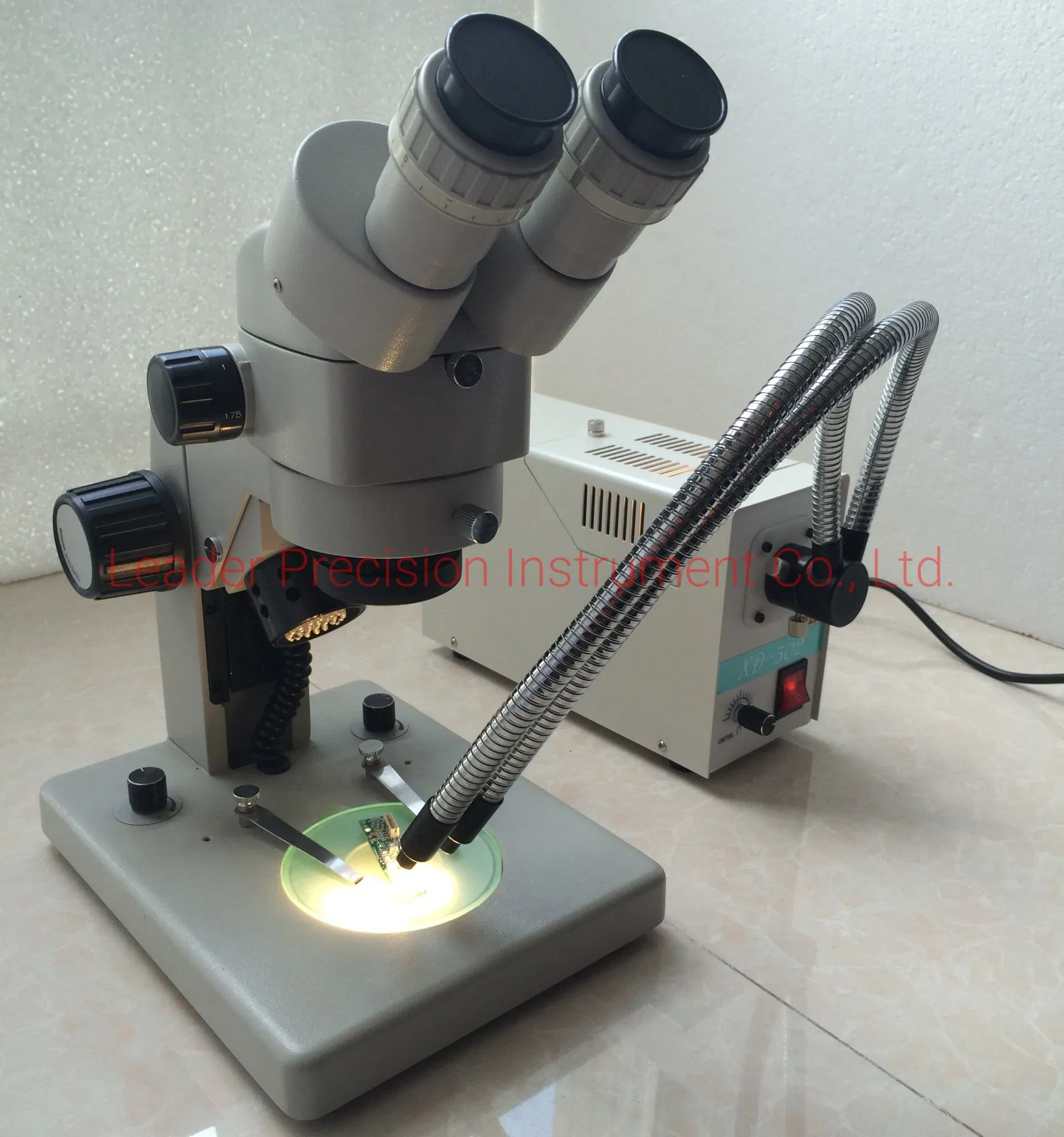

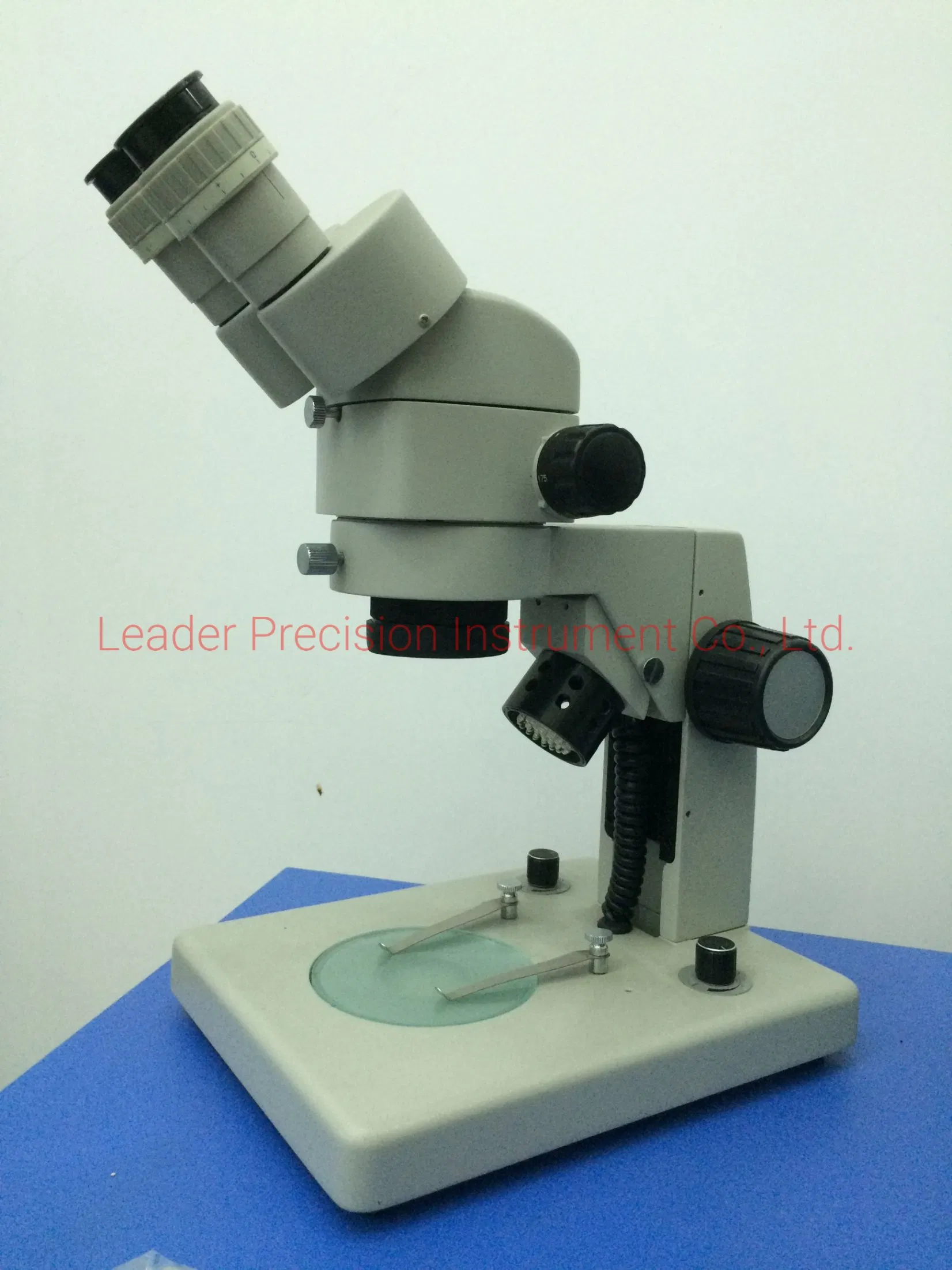

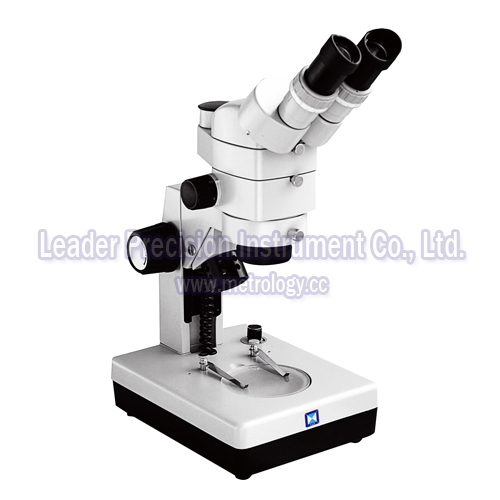

Trinocular Manual Routine Stereo Microscope (XTF-3022)
Trinocular Manual Routine Stereo Microscope (XTF-3022)Usage:Widely used in medical and health, electronics, precision machinery industry and so on, specially suitable to inspect the naked IC, LCD printing paste, PCFeature:1) Zoom lens microscope2) Parallel Beam Path Design3) Can connect CCD cameraSt......
Send Inquiry
Product Description
Trinocular Manual Routine Stereo Microscope (XTF-3022)
Usage:
Widely used in medical and health, electronics, precision machinery industry and so on, specially suitable to inspect the naked IC, LCD printing paste, PC
Feature:
1) Zoom lens microscope
2) Parallel Beam Path Design
3) Can connect CCD camera
Standard delivery:
Main unit: 1PCS
Eyepiece patch: 2PCS
Anti-dust cover: 1PCS
Optional accessories:
Eyepiece: WF5X, WF15X, WF20X, WF25X, WF30X
Auxiliary lens: 0.5x, 0.75x, 1.5x, 2x
Micro-image process software Digital Camera
Usage:
Widely used in medical and health, electronics, precision machinery industry and so on, specially suitable to inspect the naked IC, LCD printing paste, PC
Feature:
1) Zoom lens microscope
2) Parallel Beam Path Design
3) Can connect CCD camera
Standard delivery:
Main unit: 1PCS
Eyepiece patch: 2PCS
Anti-dust cover: 1PCS
Optional accessories:
Eyepiece: WF5X, WF15X, WF20X, WF25X, WF30X
Auxiliary lens: 0.5x, 0.75x, 1.5x, 2x
Micro-image process software Digital Camera
| Technical data | |
| Lens zoom range | 0.55X, 1X, 1.75X, 3X, 5.5X |
| Eyepiece | WF10X/23mm |
| Working distance | 95mm |
| Total magnification | 5.5X, 10X, 17.5X, 30X, 55X |
| Field of view | ¢ 41.8mm, ¢ 23mm, ¢ 13.1mm, ¢ 7.7mm, ¢ 4.2mm |
| Interpupillary distance | 48mm-75mm |
| Trinocular tube | inclined 45º |
| Diopter adjustment | ± 5 diopter |
| Trinocular body rotation | 360º |
| Power supply | 110V/60HZ, 220V/50HZ |
| Top halogen lamp | 6v 15W, adjustable birghtness |
| Bottom fluorescent lamp | 5W |
| Eyepiece | WF10X | WF15X | WF20X | WF25X | |||||
| Auxiliary lens | Magnification | Field of view | Magnification | Field of view | Magnification | Field of view | Magnification | Field of view | Working distance(mm) |
| 0.5X | 2.8X 5X 8.8X 15X 27.5X | ¢ 93.6 ¢ 46 ¢ 26.3 ¢ 15.3 ¢ 8.4 | 4.1X 7.5X 13.1X 22.5X 41.3X | ¢ 58.2 ¢ 32 ¢ 18.3 ¢ 10.7 ¢ 5.8 | 55X 10X 17.5X 30X 55X | ¢ 47.3 ¢ 26 ¢ 14.9 ¢ 8.7 ¢ 4.7 | 6.9X 12.5X 21.9X 37.5X 68.8X | ¢ 43.6 ¢ 24 ¢ 13.7 ¢ 8 ¢ 4.4 | 200 |
| 0.75X | 4.1X 7.5X 13.1X 22.5X 41.3X | ¢ 55.8 ¢ 30.7 ¢ 17.5 ¢ 10.2 ¢ 5.6 | 6.2X 11.3X 19.7X 33.8X 61.9X | ¢ 38.9 ¢ 21.3 ¢ 12.2 ¢ 7.1 ¢ 3.9 | 8.3X 15X 26.3X 45X 82.5X | ¢ 31.5 ¢ 17.3 ¢ 9.9 ¢ 5.8 ¢ 3.2 | 10.3X 18.8X 32.8X 56.3X 103.1X | ¢ 29.1 ¢ 16 ¢ 9.1 ¢ 5.3 ¢ 2.9 | 125 |
| 1X | 5.5X 10X 17.5X 30X 55X | ¢ 41.8 ¢ 23 ¢ 13.1 ¢ 7.7 ¢ 4.2 | 8.3X 15X 26.3X 45X 82.5X | ¢ 29.1 ¢ 16 ¢ 9.1 ¢ 5.3 ¢ 2.9 | 11X 20X 35X 60X 110X | ¢ 23.6 ¢ 13 ¢ 7.4 ¢ 4.3 ¢ 2.4 | 13.8X 25X 43.8X 75X 137.5X | ¢ 21.8 ¢ 12 ¢ 6.9 ¢ 4 ¢ 2.2 | 95 |
| 1.5X | 8.3X 15X 26.3X 45X 82.5X | ¢ 27.9 ¢ 15.3 ¢ 8.8 ¢ 5.1 ¢ 2.9 | 12.4X 22.5X 39.4X 67.5X 123.8X | ¢ 19.4 ¢ 10.7 ¢ 6.1 ¢ 3.6 ¢ 1.9 | 16.5X 30X 52.5X 90X 165X | ¢ 15.8 ¢ 8.7 ¢ 5 ¢ 2.9 ¢ 1.8 | 20.6X 37.5X 65.6X 112.5X 206.3X | ¢ 14.5 ¢ 8 ¢ 4.6 ¢ 2.7 ¢ 1.5 | 55 |
| 2X | 11X 20X 35X 60X 110X | ¢ 20.9 ¢ 11.5 ¢ 6.6 ¢ 3.8 ¢ 2.1 | 16.5X 30X 52.5X 90X 165X | ¢ 14.5 ¢ 8 ¢ 4.6 ¢ 2.7 ¢ 1.5 | 22X 40X 70X 120X 220X | ¢ 11.8 ¢ 6.5 ¢ 3.7 ¢ 2.2 ¢ 1.2 | 27.5X 50X 87.5X 150X 275X | ¢ 10.9 ¢ 6 ¢ 3.4 ¢ 2 ¢ 1.1 | 35 |
