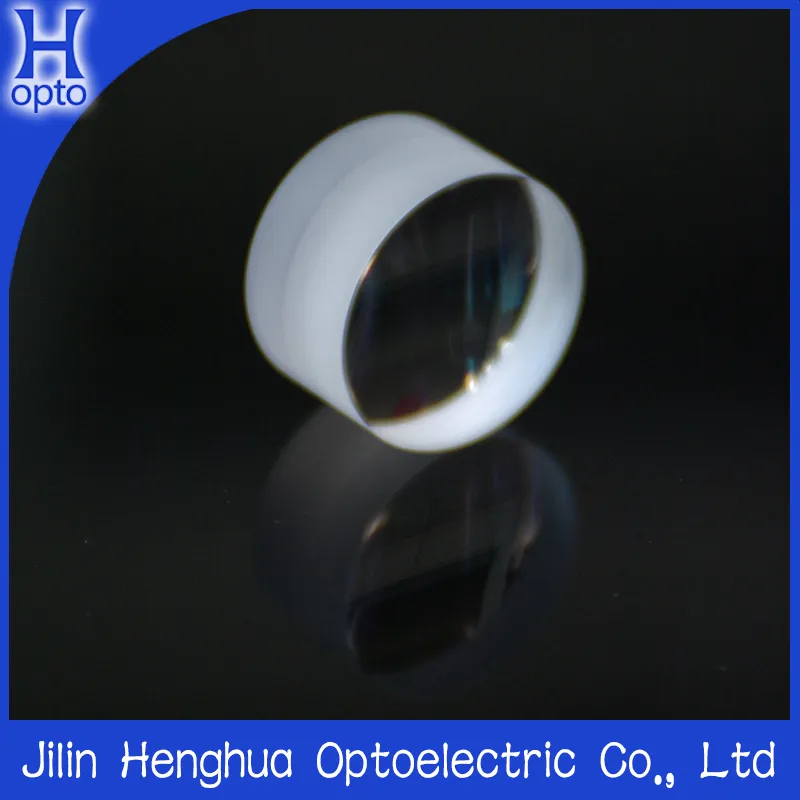

1.56 Hmc Anti-Reflective Ar Coating Optical Lens

Plano-convex is close to best form for a focusing lens.
Focusing or optical imaging
Focal Length: F = R/(n-1)
N: Refractive index
R: Radius curvature

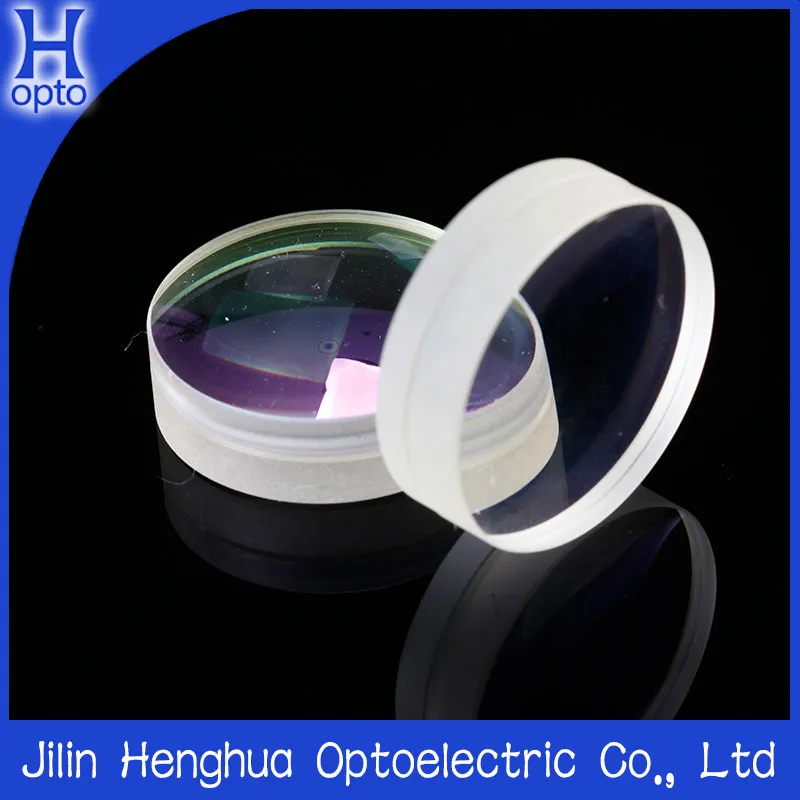

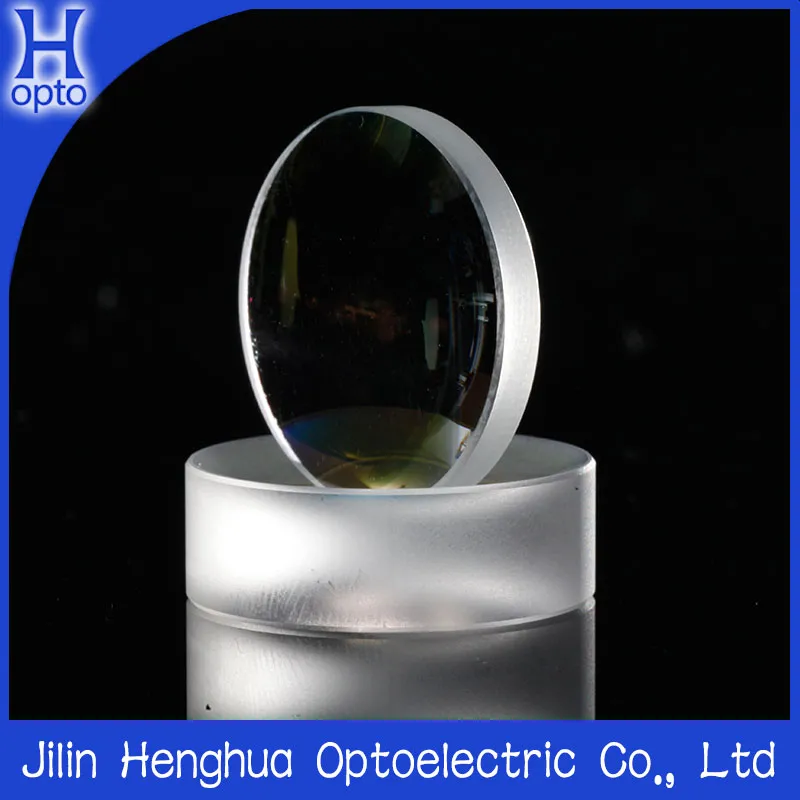

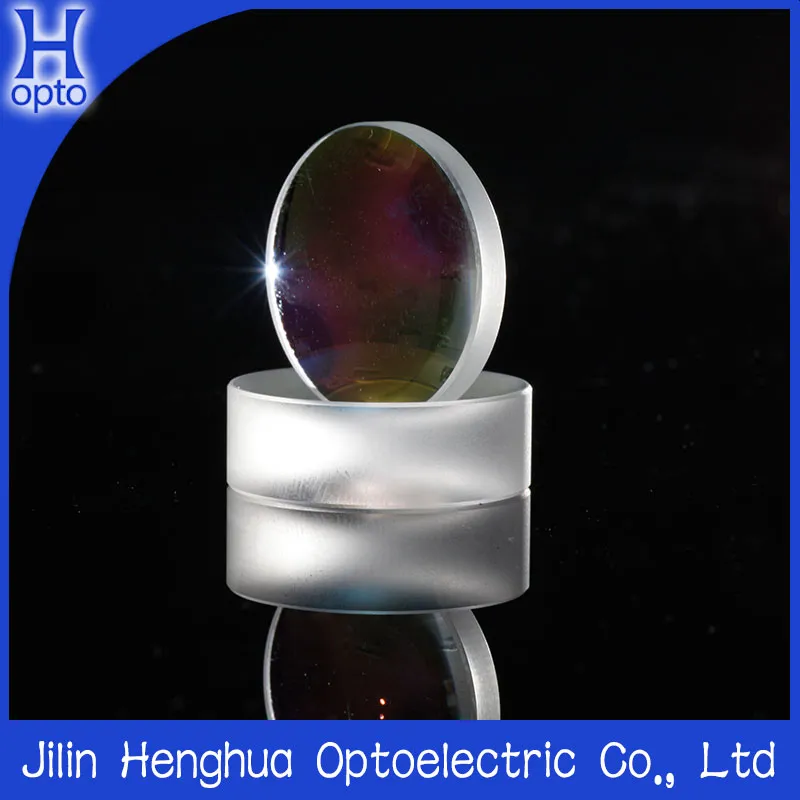

Plano-convex lenses are useful for a wide range of applications. These lenses are manufactured from BK7A grade A (or customer design) optical glass and are supplied uncoated. Anti-reflection coatings are available as listed earlier in this section. To order an anti-reflection coated lens simply append the wavelength in nanometers to the product number. These lenses may also be used as mirror blanks if a convex surface mirror is required. When used to focus a collimated beam, the light should be incident on the curved surface of the lens. These plano-convex lenses may be combined with other lenses to form compex imaging systems.

Parameter:

Item PLCX, PLCC, BICX, BIXX, CXCC, DOUBLET
Material BK7, Fused silica, K9, Ge, Si, etc.
Design Wavelength Customer design
Dimension Tolerance +0/-0.05mm
Thickness Tolerance +/-0.1mm
Surface Quality 40-20 or better
Surface Figure Sph surface: Lambda/4 or better @632.8nm
Center Error ETV better than 0.01mm
Clear Aperture 90% of diameter
Bevel Protective bevel
Coating BBAR or customer design



Welcome to inquire us we will make fast reply and service for you!
