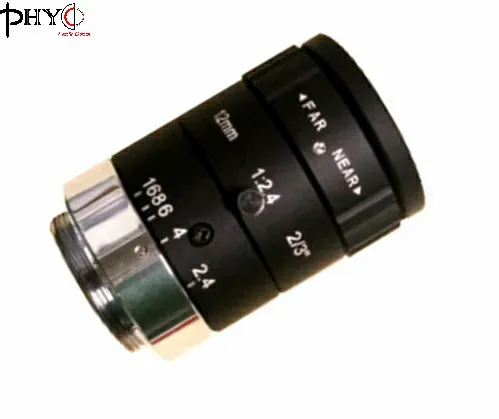

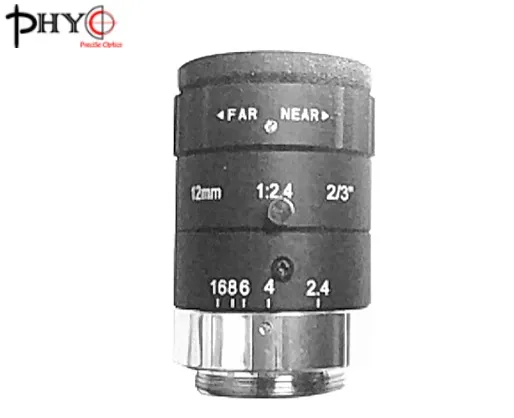

12mm Elf F2.4-16 Optical Lens Measuring Instruments Laser Machine
The Feature of the lenses- Low distortion <1%- High quality image- Support the camera for 5M pixel- Focusing from 0.15m to infiniteDetail specification :SpecificationPHYO5M12FStructure9 glass Metal houseSensor type2/3"Max Image Dia11mmFocal Length12mmF/#2.4BFL11.71mmTotal Length60.61mmMount......
Send Inquiry
Product Description
The Feature of the lenses
- Low distortion <1%
- High quality image
- Support the camera for 5M pixel
- Focusing from 0.15m to infinite
Detail specification :

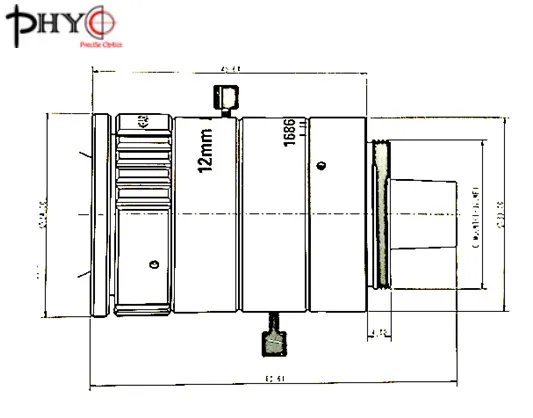

Drawings for reference
Customized Design upon request. Including the struction, connection, and size weight.
Customized Deisgn and assembly of the industry lenses, they are widely used in different application from cusumer to industry and MIL.
Like the laser, eyepiece, laser range finder, thermal lenses, fixed or continouse zooming type upon request.
Working on the optical lens, both for aspherical and glass spherical lens
______________________________________________________________________________________________________________

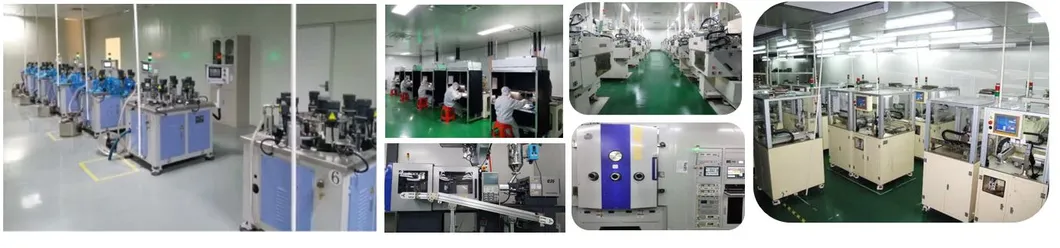

Assembly of the lenses
______________________________________________________________________________________________________________

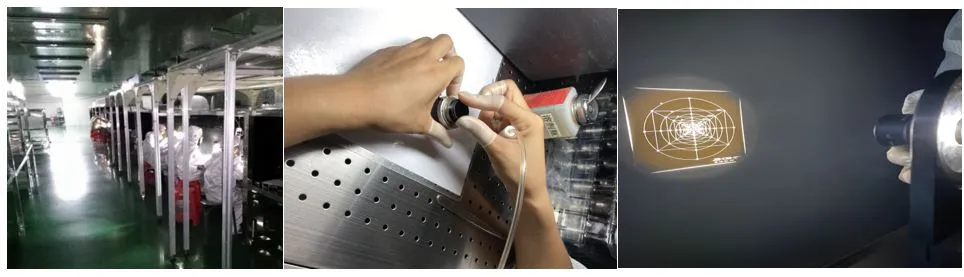

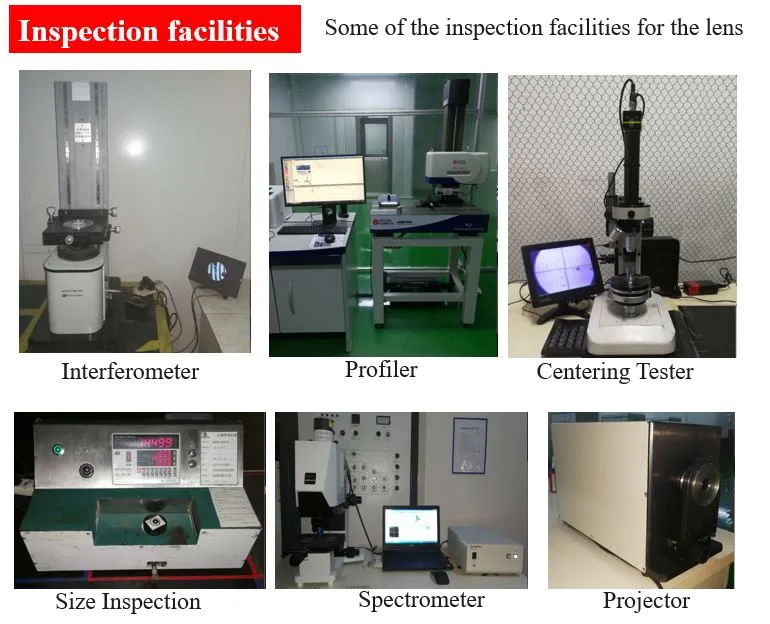

Inspection process and quality control
________________________________________________________________________________________________________________
- Low distortion <1%
- High quality image
- Support the camera for 5M pixel
- Focusing from 0.15m to infinite
Detail specification :
| Specification | PHYO5M12F | |
| Structure | 9 glass Metal house | |
| Sensor type | 2/3" | |
| Max Image | Dia11mm | |
| Focal Length | 12mm | |
| F/# | 2.4 | |
| BFL | 11.71mm | |
| Total Length | 60.61mm | |
| Mount | C mount | |
| Operating temperature | -20 to +80degree | |
Drawings for reference
Customized Design upon request. Including the struction, connection, and size weight.
Customized Deisgn and assembly of the industry lenses, they are widely used in different application from cusumer to industry and MIL.
Like the laser, eyepiece, laser range finder, thermal lenses, fixed or continouse zooming type upon request.
Working on the optical lens, both for aspherical and glass spherical lens
______________________________________________________________________________________________________________
Assembly of the lenses
______________________________________________________________________________________________________________
Inspection process and quality control
________________________________________________________________________________________________________________
