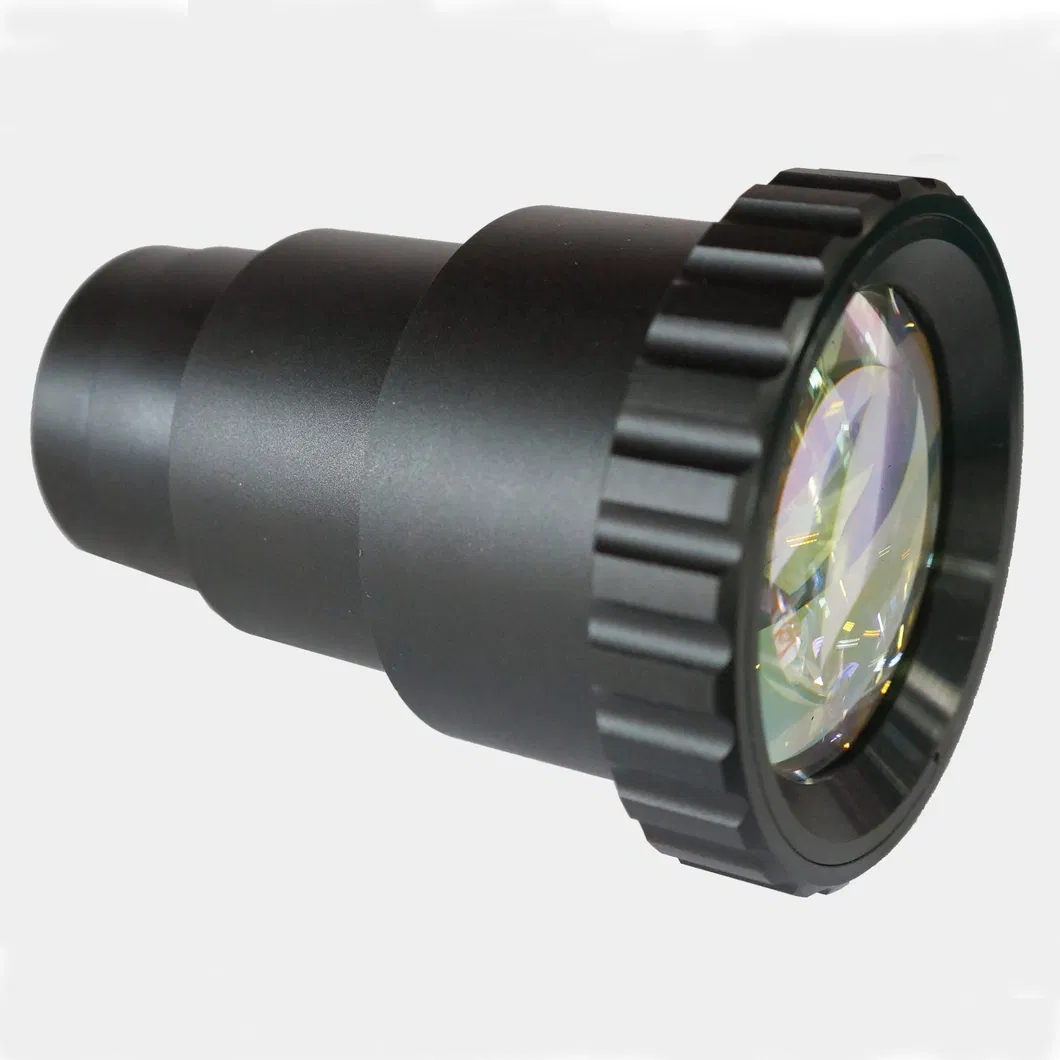

384 *288-17um Athermal Lens Focal Length 1.0 8-12um 90% 3.4mm Fixed Focus Ar Infrared Imaging Uncooled Detector Thermal Imager Athermal Lens 9mm
12um Athermal lensFocal Length9mmF/#1.0wavelength8-12umAverage Transmission90%Image Diagonal8.16mmCircular FOV (H)40°*(V)30°x(D)50°BFD17.7mmBWD9.7mmBFL13.27mmDimension(Max)(D)φ32.8mm*(L)36mmFocus TypeFixed FocusFocus Range0.3m to infinityMount TypeM24*0.5Front Coating......
Send Inquiry
Product Description

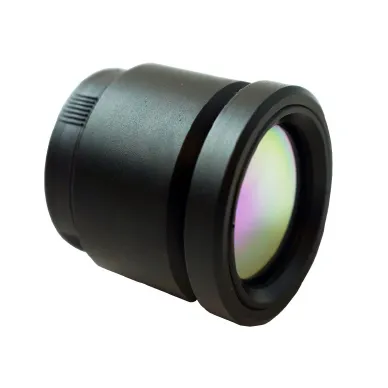

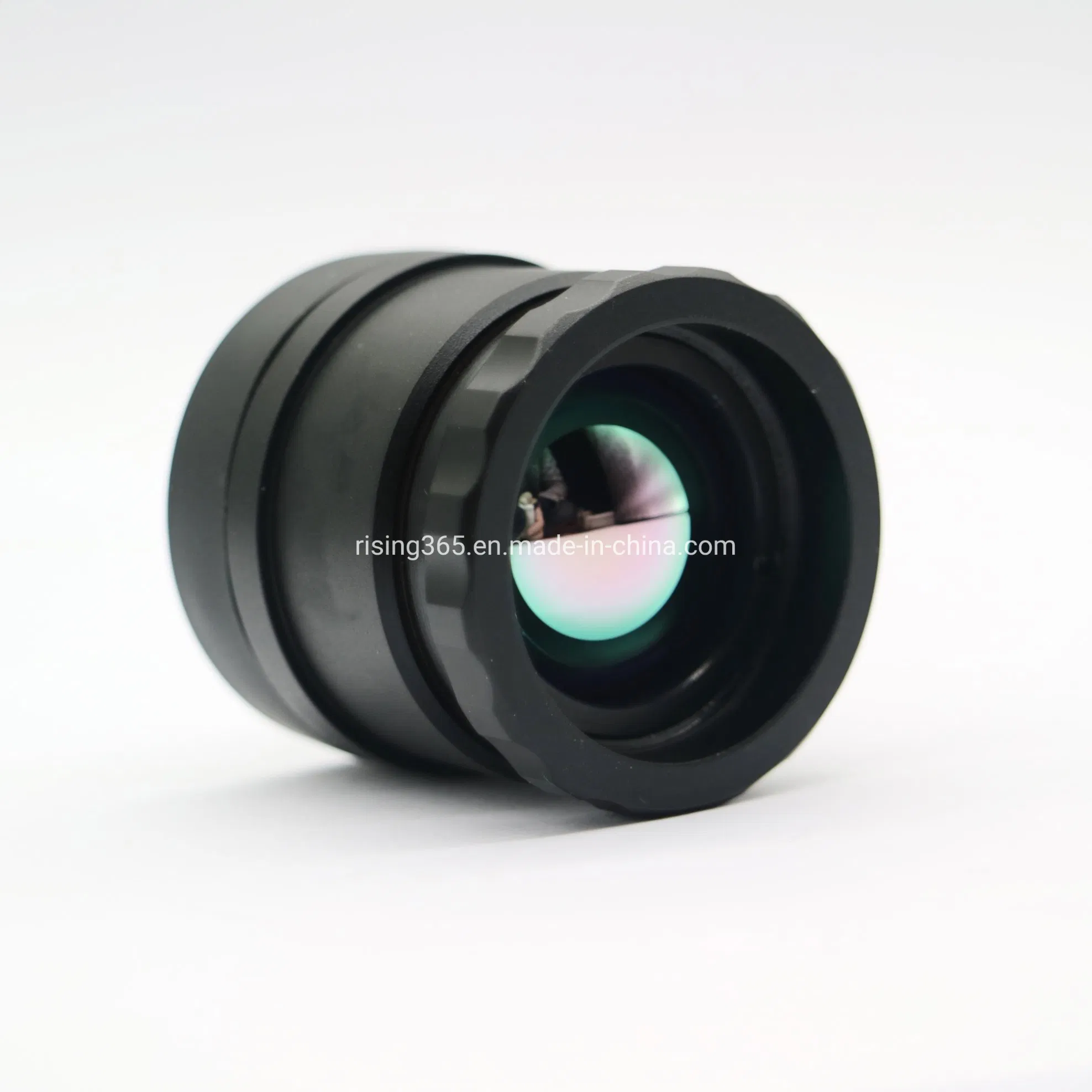

12um Athermal lens
Rising's advantage is: Sufficient, stable, low-cost supply of infrared materials.

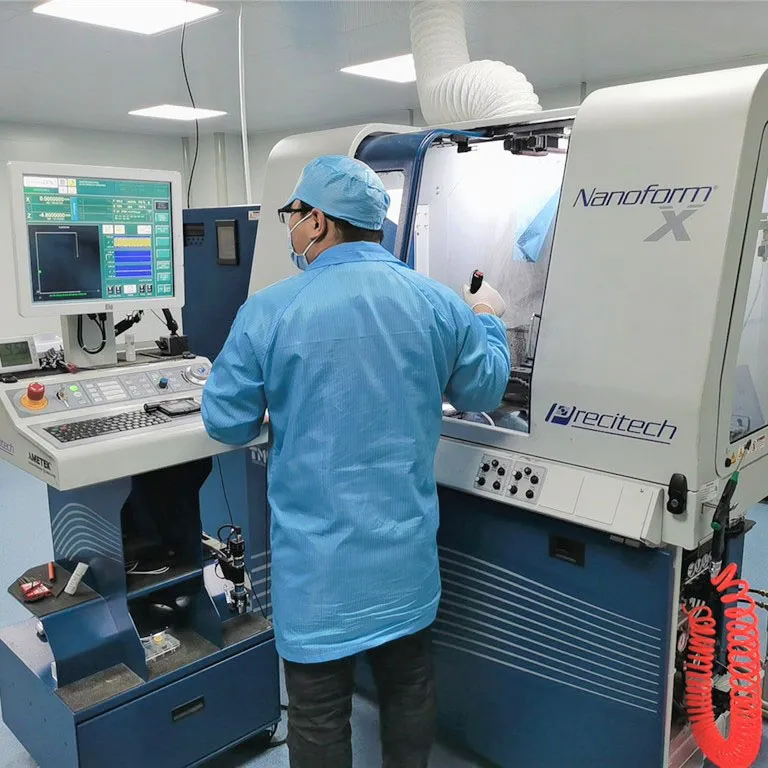

Combining sufficient infrared material supply, rich manufacturing experience and standardized services, RISING specializes in manufacturing high-precision infrared optical components for medical / Life Sciences, national defense and security, semiconductor and industrial OEM markets. From optical design to material procurement to mass production, our company is committed to optimizing the performance, cost, quality and delivery time of your infrared products.
Products are mainly exported to Southeast Asia, North America, Europe, Russia, Japan, South Korea and other developed countries and regions. We have won a high reputation among our customers at home and abroad.
The experience accumulated in the infrared optical market, together with the high qualification and strong optical background of the company's leaders, makes RISING a reliable supplier for many OEM customers and R&D institutions around the world.
FAQ
1.What's your MOQ?
10pcs.
2.What's your leadtime?
1day for inventory and 25~35days for the new project.
3.What's your shipping type?
Usually by Fedex,DHL,TNT,EMS etc or Customer appointed.
4.What's the payment condition?
T/T,L/C,VISA,Paypal,Alipay or Negotiation.
5.What's your quality guarantee period?
Three years.
| Focal Length | 9mm |
| F/# | 1.0 |
| wavelength | 8-12um |
| Average Transmission | 90% |
| Image Diagonal | 8.16mm |
| Circular FOV | (H)40°*(V)30°x(D)50° |
| BFD | 17.7mm |
| BWD | 9.7mm |
| BFL | 13.27mm |
| Dimension(Max) | (D)φ32.8mm*(L)36mm |
| Focus Type | Fixed Focus |
| Focus Range | 0.3m to infinity |
| Mount Type | M24*0.5 |
| Front Coating Type | AR |
| Detector | 384*288-17um |
Rising's advantage is: Sufficient, stable, low-cost supply of infrared materials.
Combining sufficient infrared material supply, rich manufacturing experience and standardized services, RISING specializes in manufacturing high-precision infrared optical components for medical / Life Sciences, national defense and security, semiconductor and industrial OEM markets. From optical design to material procurement to mass production, our company is committed to optimizing the performance, cost, quality and delivery time of your infrared products.
Products are mainly exported to Southeast Asia, North America, Europe, Russia, Japan, South Korea and other developed countries and regions. We have won a high reputation among our customers at home and abroad.
The experience accumulated in the infrared optical market, together with the high qualification and strong optical background of the company's leaders, makes RISING a reliable supplier for many OEM customers and R&D institutions around the world.
FAQ
1.What's your MOQ?
10pcs.
2.What's your leadtime?
1day for inventory and 25~35days for the new project.
3.What's your shipping type?
Usually by Fedex,DHL,TNT,EMS etc or Customer appointed.
4.What's the payment condition?
T/T,L/C,VISA,Paypal,Alipay or Negotiation.
5.What's your quality guarantee period?
Three years.
