5 Degree Powell Lens K9 Glass Ar Coating

Anamorphic expansion

Concave side can be used as a reflector coating substrate



F=-R/n-1



N: Refractive index

R: Radius curvature

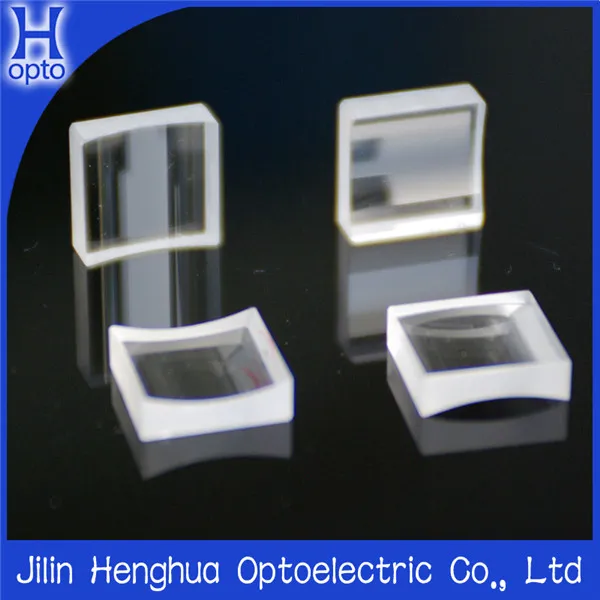

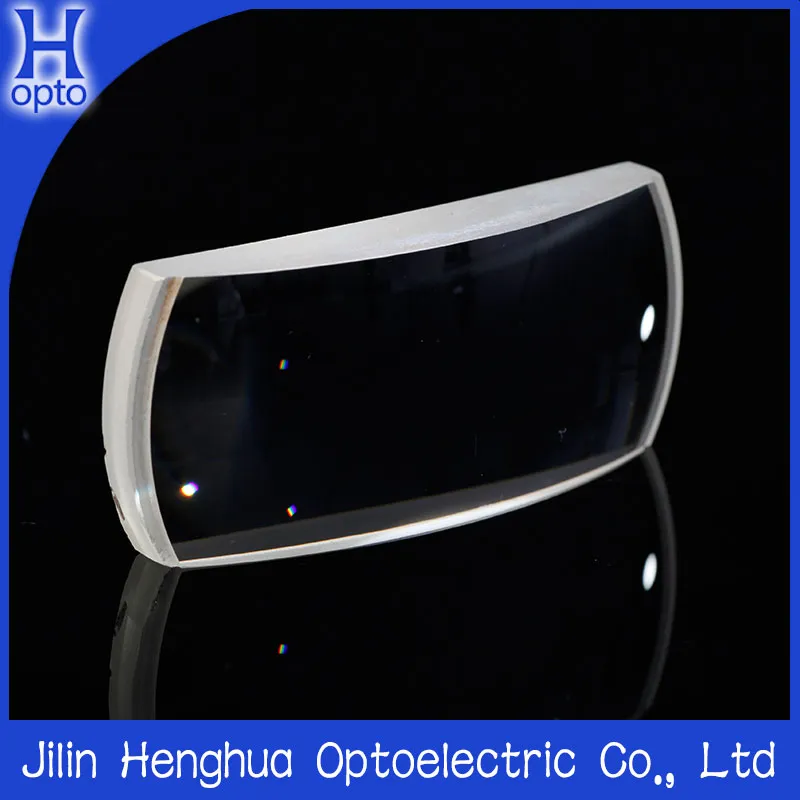

Plano-concave cylindrical lenses provide uni-axial negative imaging for anamorphic beam expansion and a wide range of applications. These lenses ar manufactured from BK7 grade A optical glass and are supplied uncoated. Anti-reflection coating are available as listed earlier in this section. To order an anti-reflection coated lens simply append the wavelength in nanometers to the product number. These lenses may also be used as mirror blanks if a concave cylinrial surface mirror is required.


Parameter:

Material: BK7, fused silica, sapphire, znse.
Clear Aperture: >90%
Focal Length: 2mm-10000mm+/-0.3%
Size: 0.5-460mm+/-0.02mm
Center thickness: 0.8-200mm+/-0.01mm
Centration: 30''
Irregularity: Lambda/4
Surface Quality: 40/20
Radius tolerance+/-0.3%
Coating: Upon customer request


Welcome to inquire us we will make fast reply and products with high quality for you!
