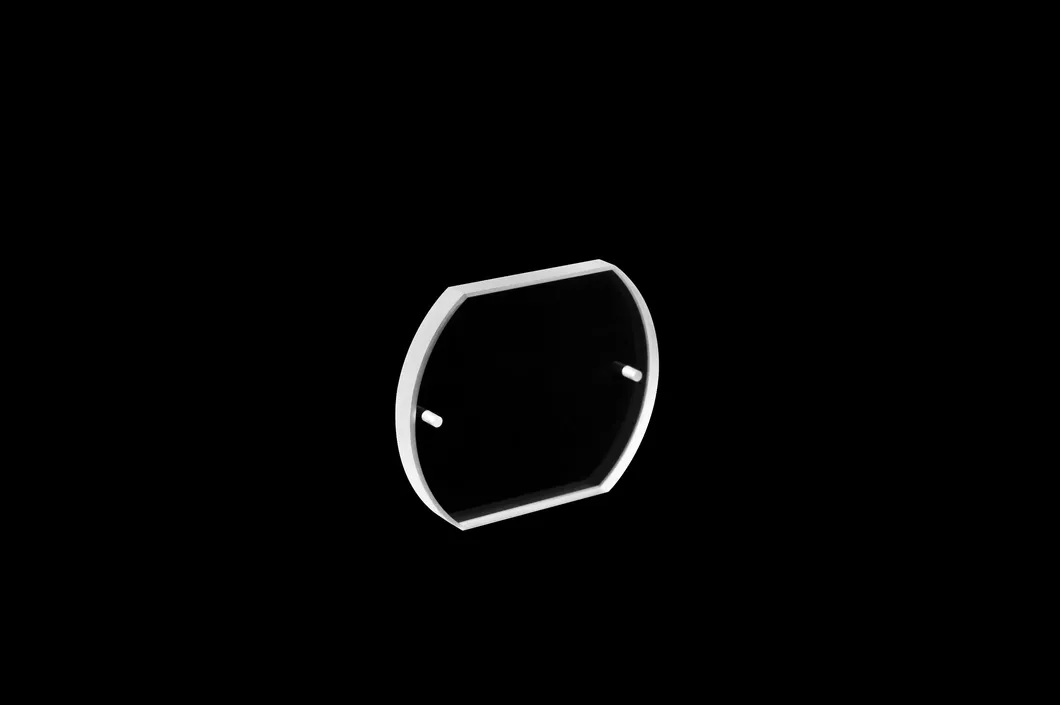

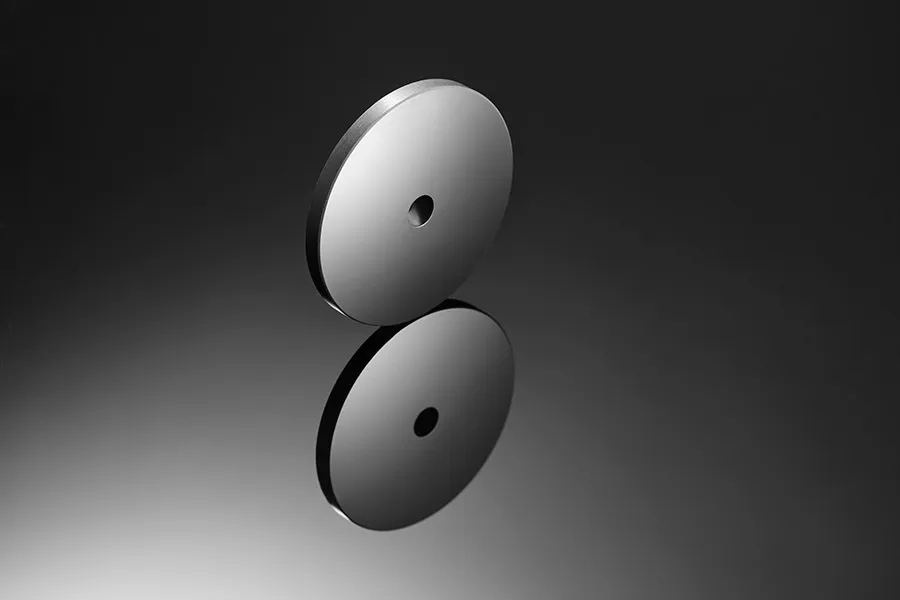

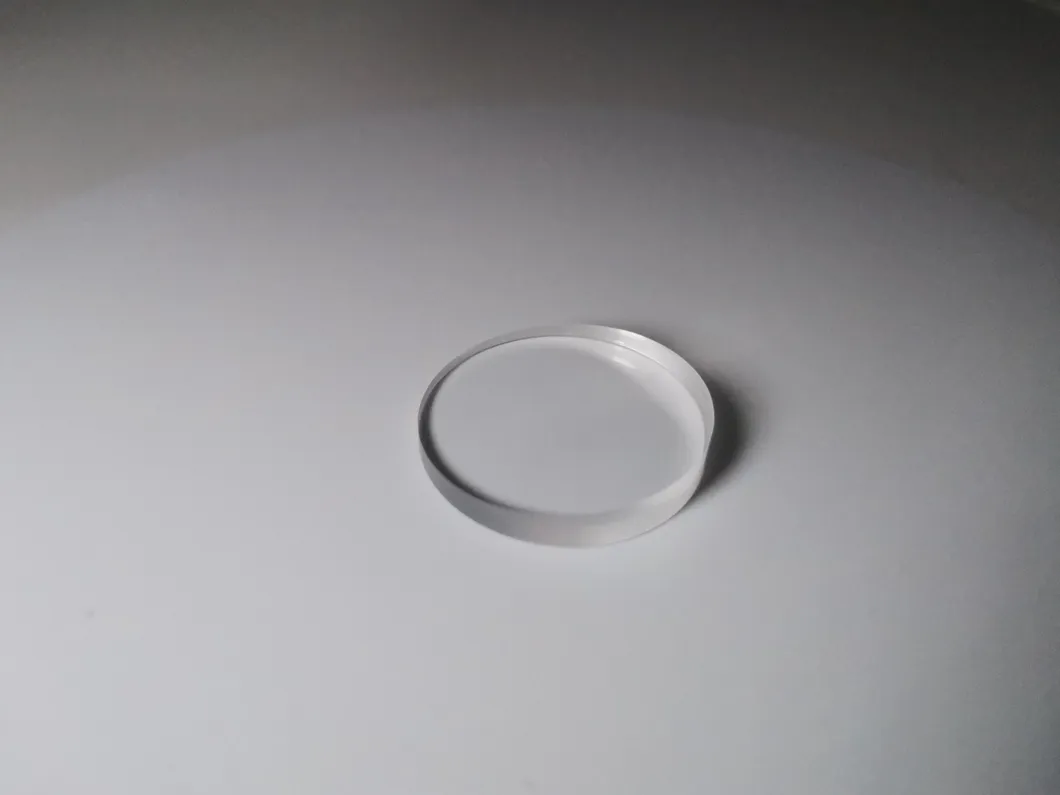

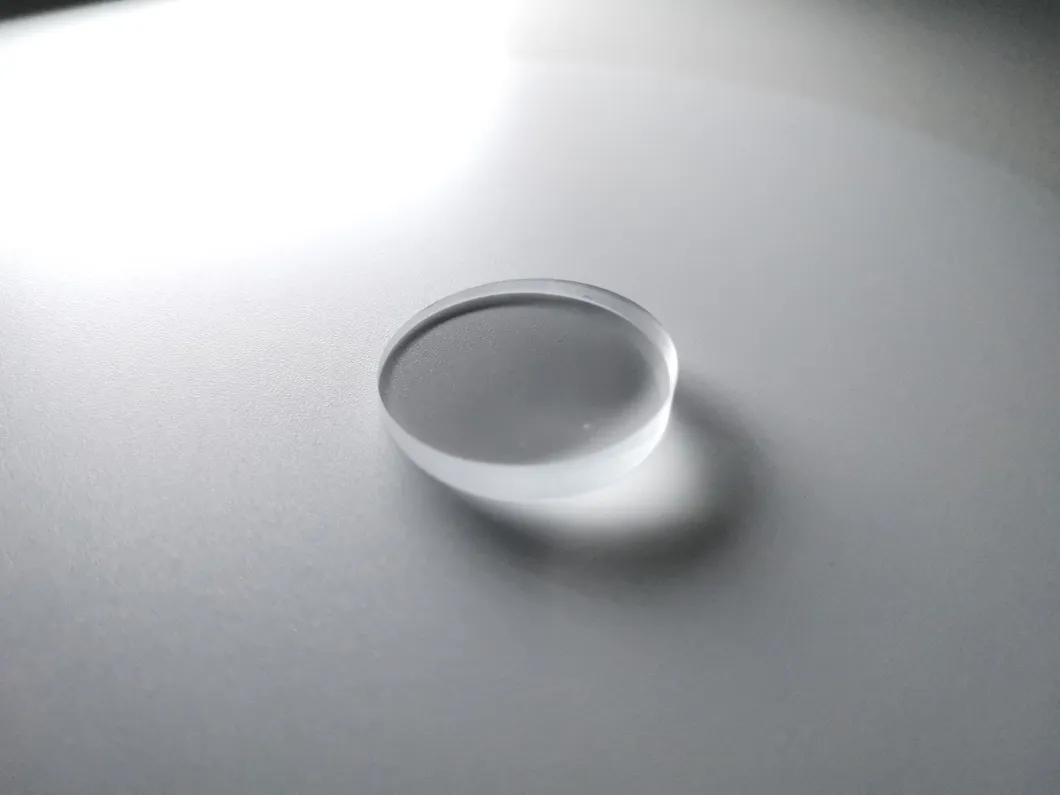

CO2 Protect Windows, Lase Protect Windows, Optical Windows

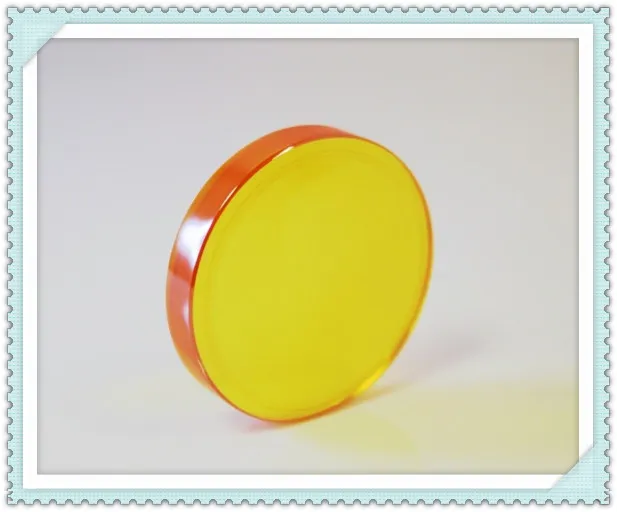

Protection window. Protection window, as the name implies, its role is to protect other parts which is not easy to replace or vulnerable ones. The current application is to protect the laser tube output couple and focusing lens Due to the special usage of protection window, it requires the material ......
Send Inquiry
Product Description
Protection window. Protection window, as the name implies, its role is to protect other parts which is not easy to replace or vulnerable ones. The current application is to protect the laser tube output couple and focusing lens |
|---|
Part Number | Diameter | Thickness | Material | Coating | ||
mm | inch | mm | inch | |||
W-10.6-12-2 | 12 | 0.47 | 2 | 0.08 | USA Znse | |
W-10.6-12-3 | 12 | 0.47 | 3 | 0.12 | USA Znse | |
W-10.6-12.7-2 | 12.7 | 0.50 | 2 | 0.08 | USA Znse | |
W-10.6-12.7-2.5 | 12.7 | 0.50 | 2.5 | 0.10 | USA Znse | BR AR@8-14um |
W-10.6-15-2 | 15 | 0.59 | 2 | 0.08 | USA Znse | |
W-10.6-16-3 | 15 | 0.59 | 3 | 0.12 | USA Znse | |
W-10.6-15-4 | 16 | 0.63 | 3 | 0.12 | USA Znse | NONE |
W-10.6-15.2-3 | 15.2 | 0.60 | 3 | 0.12 | USA Znse | |
BRW-10.6-18-2 | 18 | 0.71 | 2 | 0.08 | USA Znse | BR AR@8-14um |
W-10.6-18-3 | 18 | 0.71 | 3 | 0.12 | USA Znse | |
W-10.6-19-2 | 19 | 0.75 | 2 | 0.08 | USA Znse | NONE |
W-10.6-19-3 | 19 | 0.75 | 3 | 0.12 | USA Znse | |
W-10.6-20-2 | 20 | 0.79 | 2 | 0.08 | USA Znse | NONE |
BRW-10.6-20-3 | 20 | 0.79 | 3 | 0.12 | USA Znse | BR AR@8-14um |
W-10.6-23-3 | 23 | 0.91 | 3 | 0.12 | USA Znse | NONE |
W-10.6-25-3C | 25 | 0.98 | 3 | 0.12 | USA Znse | NONE |
W-10.6-25-4 | 25 | 0.98 | 3 | 0.12 | Chinese Znse | NONE |
W-10.6-25.4-3 | 25.4 | 1.00 | 3 | 0.12 | USA Znse | |
W-10.6-27.9-3 | 27.9 | 1.10 | 3 | 0.12 | USA Znse | |
W-D29.8-T11 | 29.8 | 1.17 | 11 | 0.43 | USA Znse | NONE |
BRW-10.6-30-3 | 30 | 1.18 | 3 | 0.12 | USA Znse | BR AR@8-14um |
W-10.6-38.1-3 | 38.1 | 1.50 | 3 | 0.12 | USA Znse | |
W-10.6-38.1-4 | 38.1 | 1.50 | 4 | 0.16 | USA Znse | [email protected]&632nm |
BRW-10.6-38.1-5 | 38.1 | 1.50 | 5 | 0.20 | USA Znse | BR AR@8-14um |
W-10.6-50.8-3 | 50.8 | 2.00 | 3 | 0.12 | USA Znse | |
W-10.6-50.8-4 | 50.8 | 2.00 | 4 | 0.16 | USA Znse | |
W-10.6-50.8-5 | 50.8 | 2.00 | 5 | 0.20 | USA Znse | [email protected]&632nm |
BRW-10.6-63.5-4 | 63.5 | 2.50 | 4 | 0.16 | USA Znse | BR AR@8-14um |
W-10.6-63.5-5 | 63.5 | 2.50 | 5 | 0.20 | USA Znse | |
W-10.6-63.5-6 | 63.5 | 2.50 | 6 | 0.24 | USA Znse | |
W-10.6-63.5-6 | 63.5 | 2.50 | 6 | 0.24 | USA Znse | [email protected]&632nm |
BRW-10.6-63.5-9 | 63.5 | 2.50 | 9 | 0.35 | USA Znse | BR AR@8-14um |
W-10.6-75-5 | 75 | 2.95 | 5 | 0.20 | USA Znse | |
W-10.6-75-6 | 75 | 2.95 | 6 | 0.24 | USA Znse | |
W-10.6-75-8 | 76.2 | 3.00 | 8 | 0.31 | USA Znse | NONE |
BRW-10.6-75-9 | 75 | 2.95 | 9 | 0.35 | USA Znse | BR AR@8-14um |
W-10.6-80-3C | 80 | 3.15 | 3 | 0.12 | Chinese Znse | |
W-10.6-80-3 | 80 | 3.15 | 3 | 0.12 | USA Znse | |
W-10.6-80-4 | 80 | 3.15 | 4 | 0.16 | USA Znse | |
W-10.6-101-5 | 101 | 3.98 | 5 | 0.20 | USA Znse | |
W-10.6-101-5.5 | 101 | 3.98 | 5.5 | 0.22 | USA Znse | |
W-10.6-150-10 | 150 | 5.91 | 10 | 0.39 | USA Znse |
