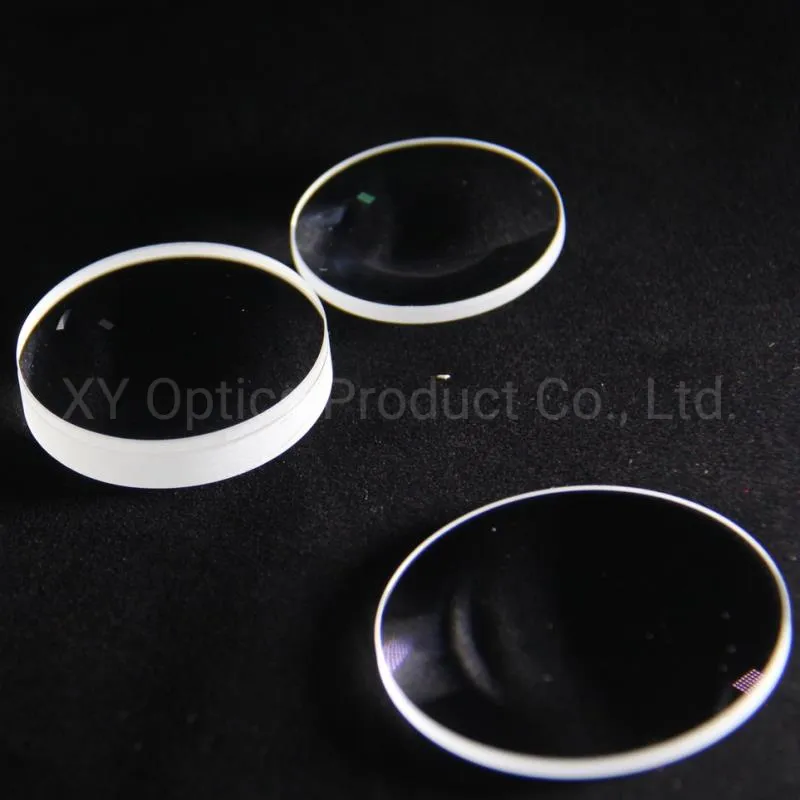

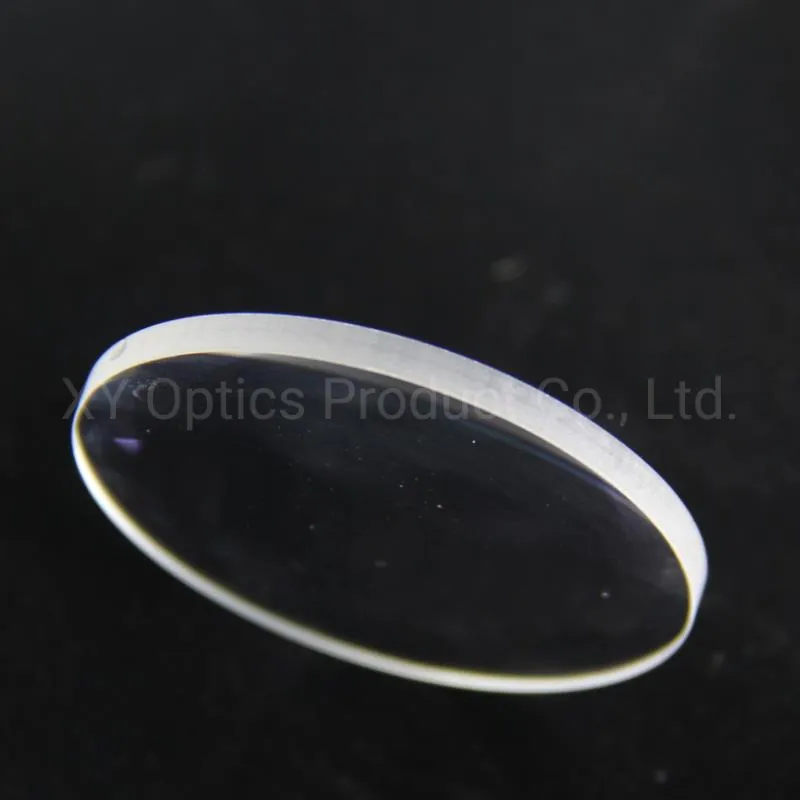

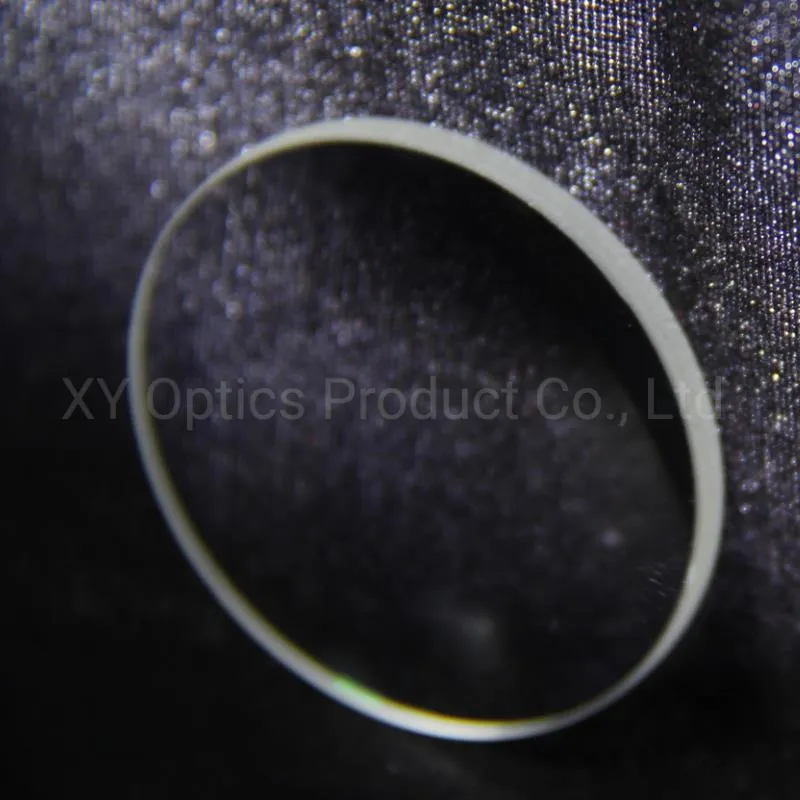

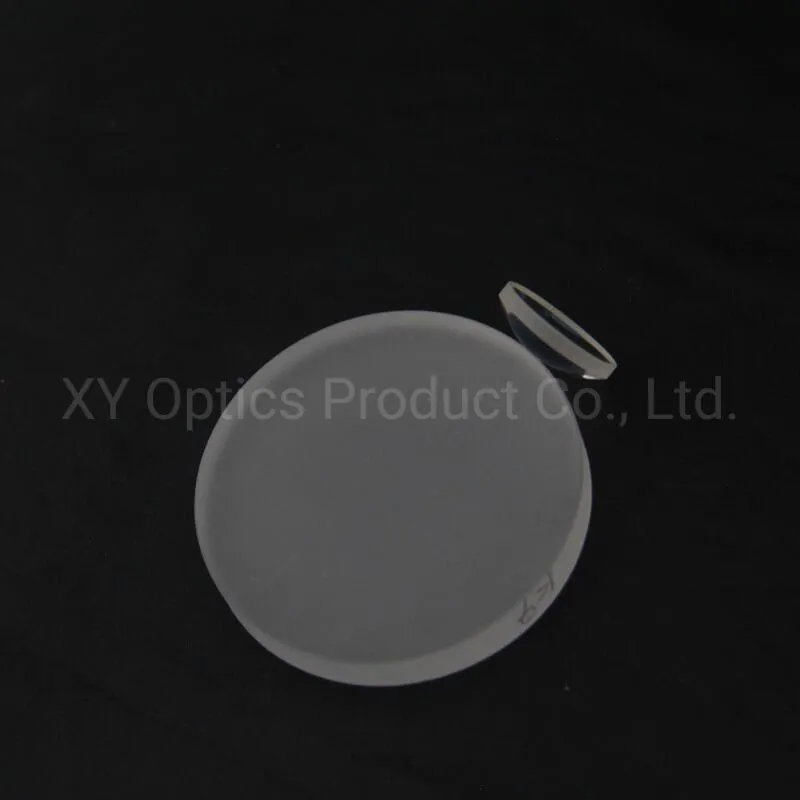

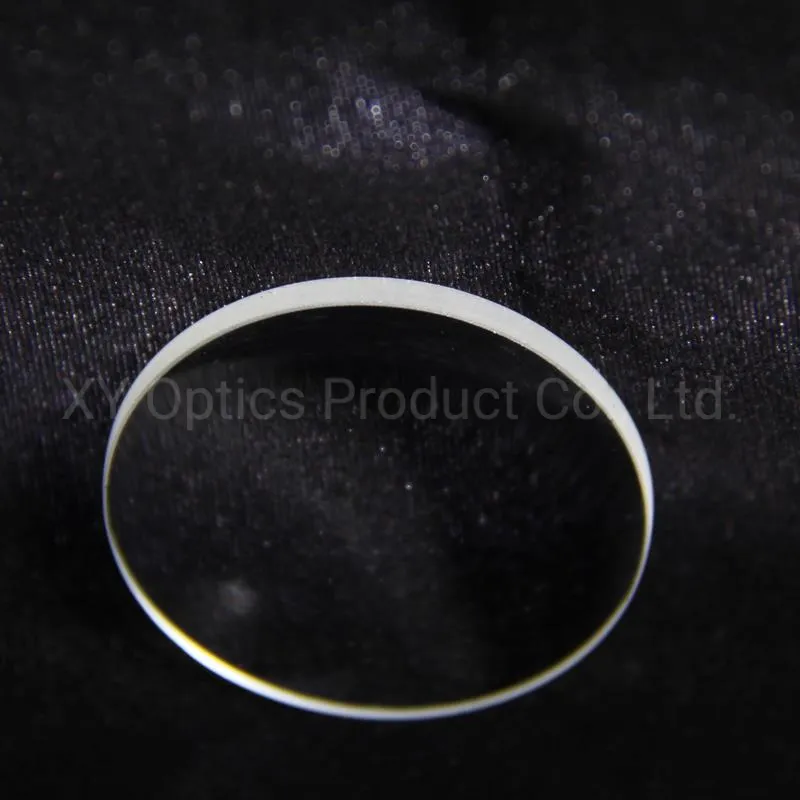

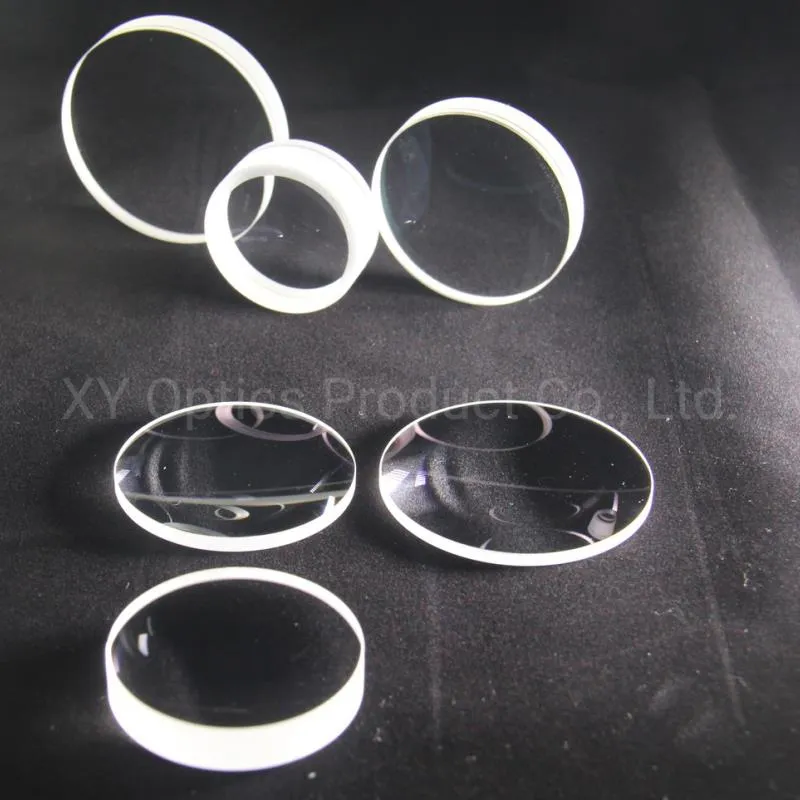

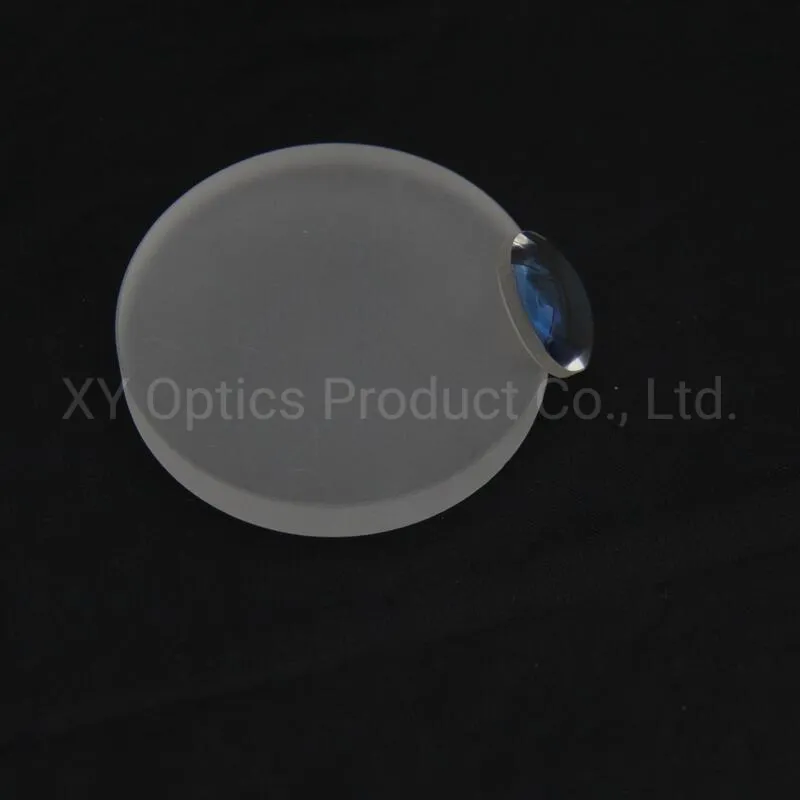

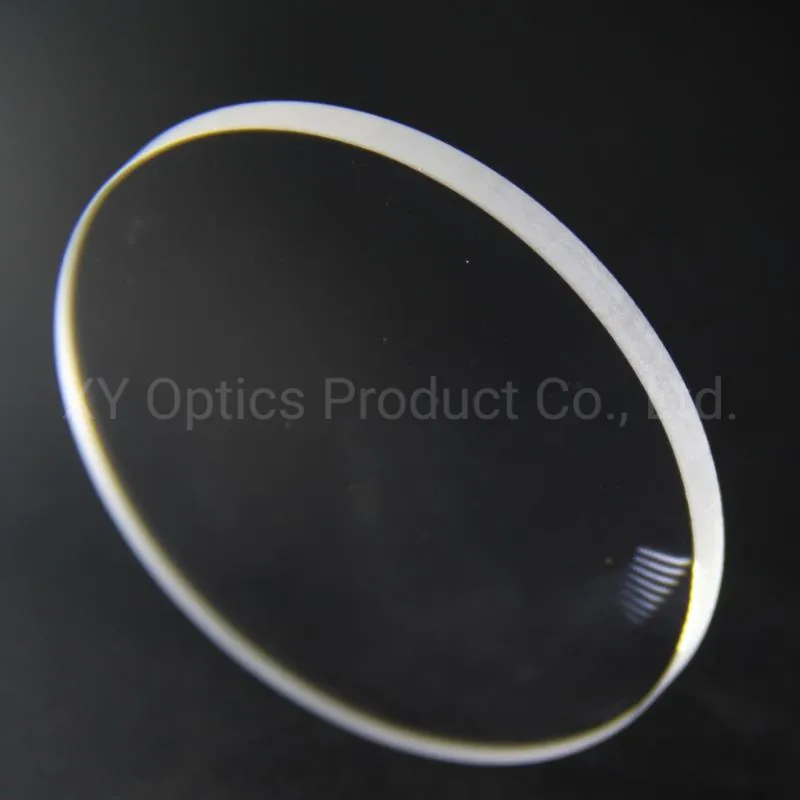

              Dia18.5mm Plano-Convex for Optical Instruments
              • Dia18.5mm Plano-Convex for Optical InstrumentsDia18.5mm Plano-Convex for Optical Instruments
              • Dia18.5mm Plano-Convex for Optical InstrumentsDia18.5mm Plano-Convex for Optical Instruments
              • Dia18.5mm Plano-Convex for Optical InstrumentsDia18.5mm Plano-Convex for Optical Instruments
              • Dia18.5mm Plano-Convex for Optical InstrumentsDia18.5mm Plano-Convex for Optical Instruments

              Dia18.5mm Plano-Convex for Optical Instruments

              Lenses have many applications ranging from the simple collection of a laser beam to precise imaging and image transfer, Lenses are classified as single lenses, Achromatic lenses, cylindrical lenses and aspheric lenses etc. These lenses are made of optical glass, fused silica etc.Special focusing sys......

              Send Inquiry

              Product Description

              Dia18.5mm Plano-Convex for Optical Instruments
              Dia18.5mm Plano-Convex for Optical Instruments
              Dia18.5mm Plano-Convex for Optical Instruments

              Dia18.5mm Plano-Convex for Optical Instruments
              Dia18.5mm Plano-Convex for Optical Instruments
              Dia18.5mm Plano-Convex for Optical Instruments
              Lenses have many applications ranging from the simple collection of a laser beam to precise imaging and image transfer, Lenses are classified as single lenses, Achromatic lenses, cylindrical lenses and aspheric lenses etc. These lenses are made of optical glass, fused silica etc.Special focusing systems can be designed by our engineers upon request. The our ability can be up to surface accuracy 0.05 lambda, surface quality less than 10-5, dimension from 0.5mm to 800mm.but main products are, Φ1-Φ300mm single lenses and achromatic lens, Φ0.5-Φ13mm ball lenses,Φ5-Φ800 aspheric lenses,Φ1-Φ25mm rod lenses, Φ1-Φ300cylindrical lenses.
              aterials:
                             		BK7,SF8,SF6 etc.
              Diameter
                             		18.5mm
              Diameter Tolerance:
                             		+/-0.005
              Thickness Tolerance:
                             		+/-0.005
              Surface Quality:
                             		10-5. 20-10.60-40
              Surface Figure:
                             		λ/5@633nm
              Coating:
                             		Customized
              Production:
                             		10000pcs/Month
