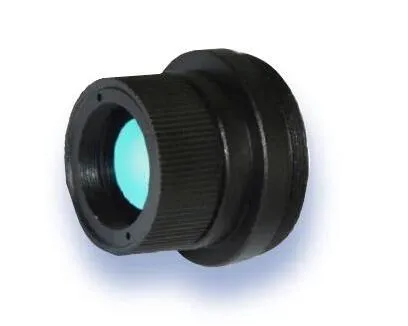

FL30mm F/1.6 Optical Infrared Lens IR Lens
OpticsFocal Length 30mmF/# 1.6Wavelength 8~12μmAverage Transmission ≥84%Detector 384*288 17μmBack Focal Length 15.95mmField of View 12.4°×9.3°MechanicalFocus Mechanism Manually adjustableFocus Range 1m~∞WeightDimensions φ29×2......
Send Inquiry
Product Description
Optics
Focal Length 30mm
F/# 1.6
Wavelength 8~12μm
Average Transmission ≥84%
Detector 384*288 17μm
Back Focal Length 15.95mm
Field of View 12.4°×9.3°
Mechanical
Focus Mechanism Manually adjustable
Focus Range 1m~∞
Weight

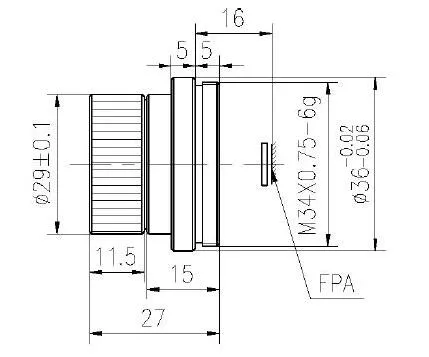

Dimensions φ29×27
Back Working Distance 16mm
Environmental
Operating Temperature -30ºC~+65ºC
Storage Temperature -40ºC~+70ºC
Sealing IP56(front lens only)
Coating DLC
Mechanical Shock GJB150.16A
Vibration GJB150.18A
