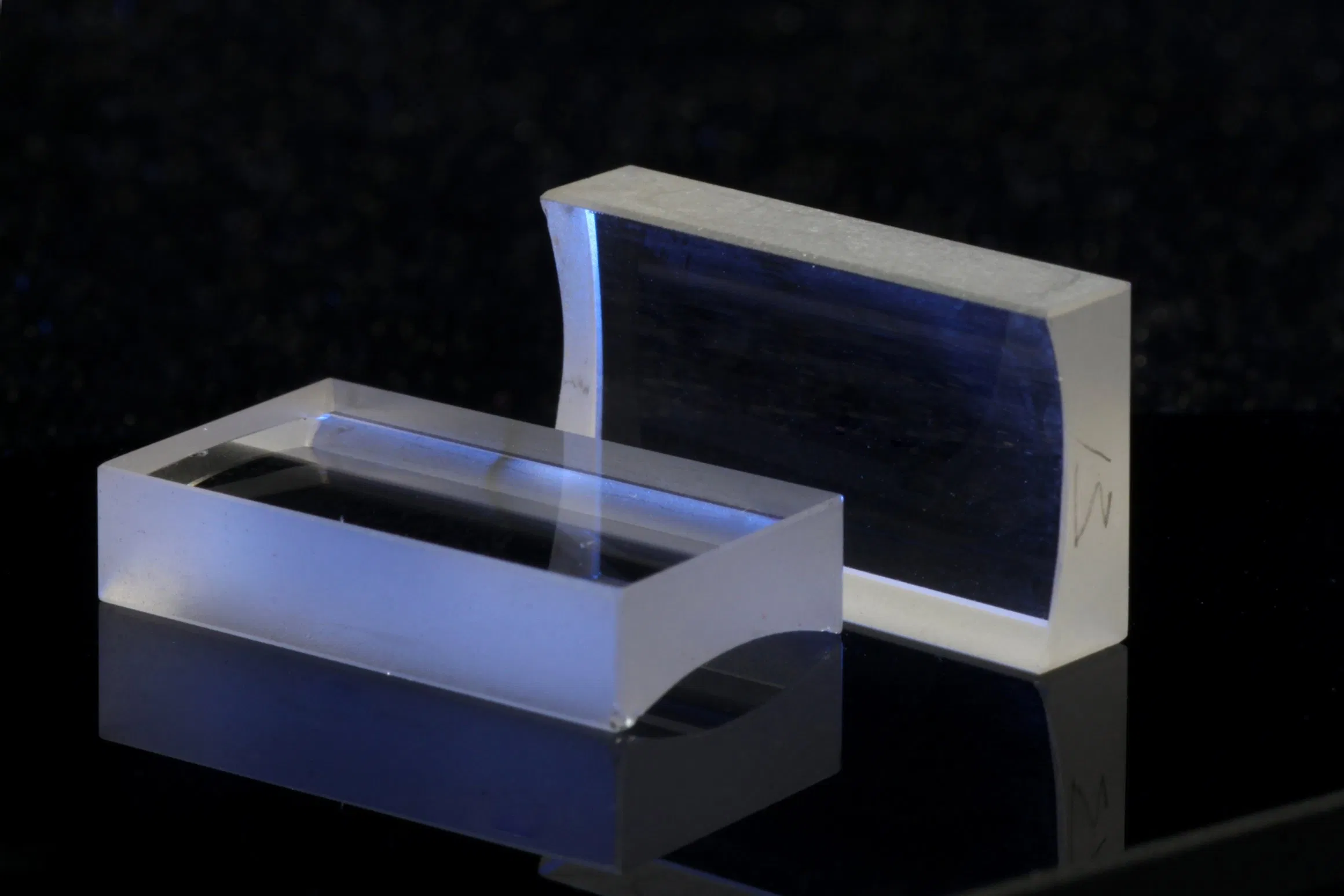

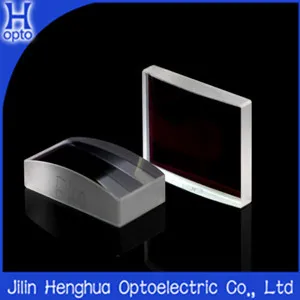

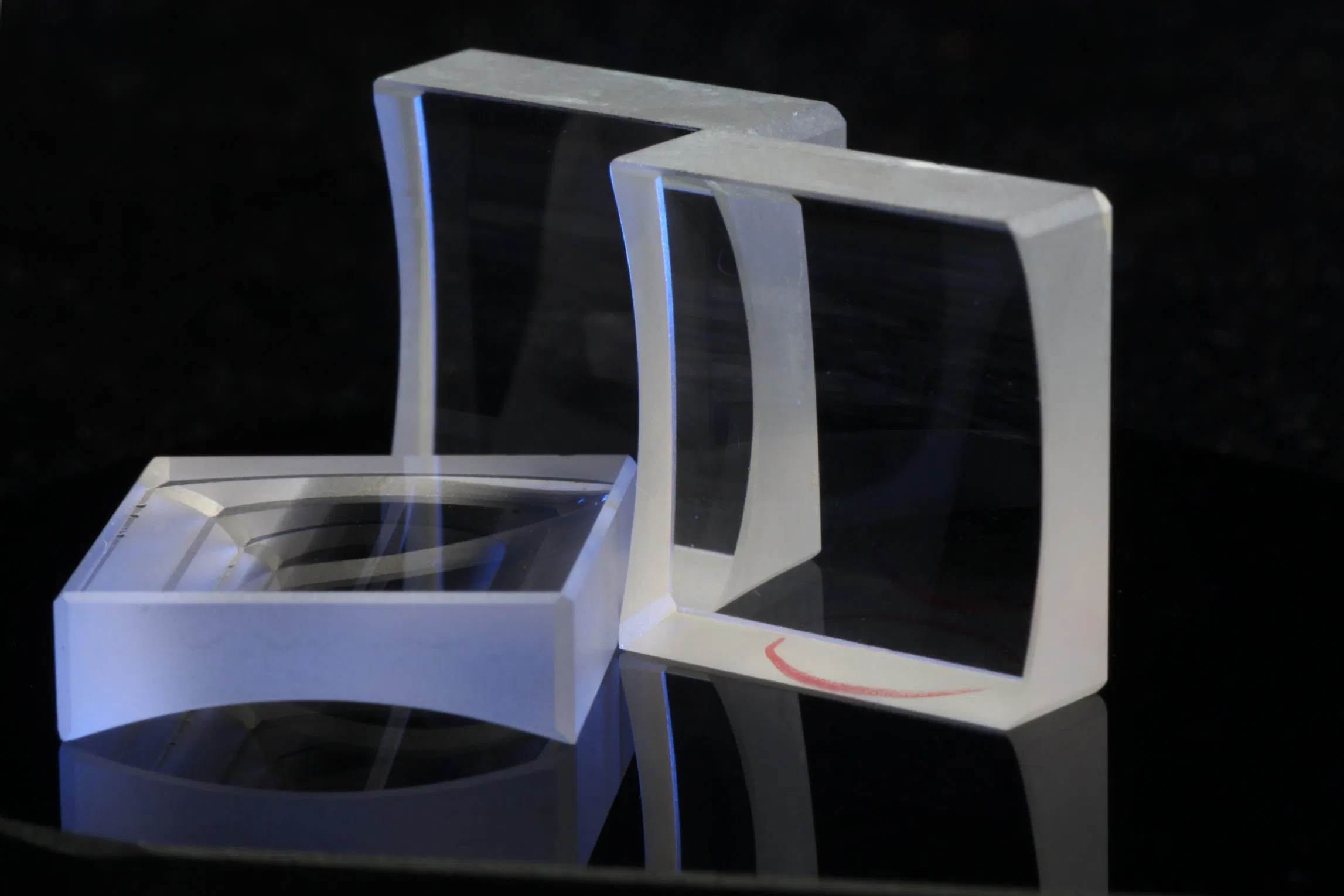

High Quality Glass Plano Convex Cylindrical Lens

Line imaging lenses


n:refractive index

R:radius curvature

Plano-convex cylindrical lenses are useful for line imaging or uni-axial magnification in a wide range of applications.These lenses ar manufactured from BK7 grade A optical glass and are supplied uncoated.Anti-reflection coating are available as listed earlier in this section.To order an anti-reflection coated lens simply append the wavelength in nanometers to the product number.These lenses may be combined with other lenses to form
Parameter:

Material :UVFS corning 7980 of grade
R : 134.72+/-0.2mm(102.81mm)
dimension60mm(L)*40mm(W)*10mmTc+/-0.1mm
High Damage Thereshold Coating >5KW/CM2CW
Surface Flatness: lambda/5 per inch @ 632.nm
Centration Error: <1 arc min
Surface Quality:20/10
chamfer 03mm@45deg
Coating:BBAR R<0.5%@780nm-1000nm,0deg
