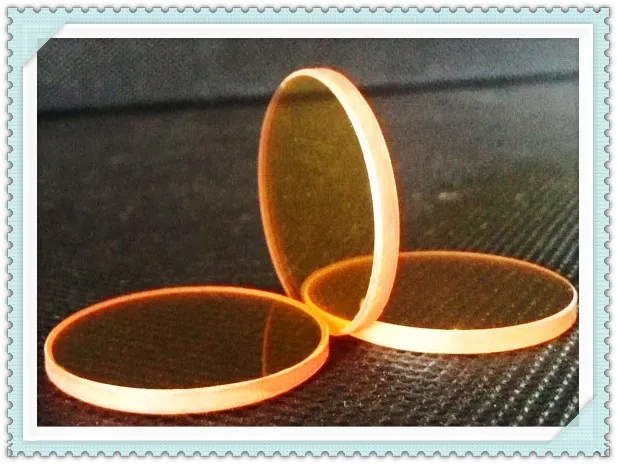

Windows are most often used to separate two environments while allowing light to pass. Reflections from their surfaces can also be used to sample beams. Windows used in laser applications need to have low scatter, low absorption, low transmitted wavefront error, and high laser damage threshold. That's why all of our catalog windows are manufactured to laser quality, with 10 - 5 scratch dig surface quality, λ/10 TWE, and optional high power antireflection coatings on one or two surfaces.

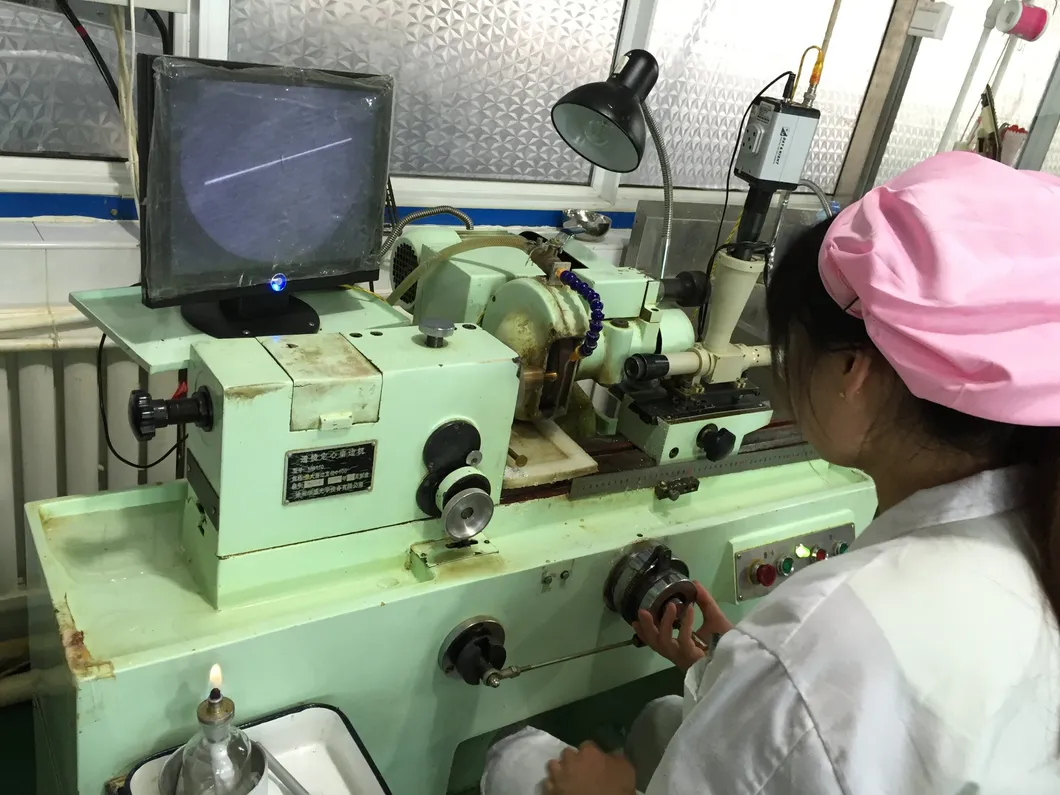

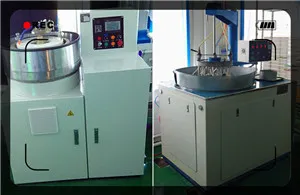

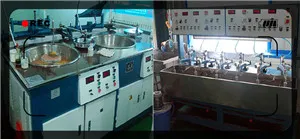

processing machine
IR Silicon Monocrystal Optics, Aspherical Lenses

IR Silicon Monocrystal Optics, Aspherical Lenses

Product Description

China Optical Zns, Znse, CaF2, Si, Ge, Mgf2, Fs Windows/Lens/Wafer/Prism/Slice
We could manufacture kinds of optical infrared lenses, materical can be ZnS, ZnSe, CaF2, Si, Ge, MgF2, FS etc., windows, mirror, spherical lens, cylindrical lens can be produced by infrared material.

Normal specification of our infrared lenses as follow:
*Material ZnSe, Si, Ge, CaF2, MgF2, FS etc.
*Dimension tolerance +/-0.20mm
*Thickness tolerance +/-0.20mm
*Surface Quality 60-40
*Flatness λ/4 at 633nm
*Clear Aperture 80%
*Crystals directional precision 5 min
*Bevel 0.3+/-0.20mmx45 degree
*Coating Optional
IR Silicon Monocrystal Optics, Aspherical Lenses

Range of diameter	Dia.0.7mm-Dia.400mm
Range of curve radius	R1.5-R∞ etc.
Tolerance of diameter	+/-0.1, +/-0.01, +/-0.005 etc.
Surface accuracy	Λ , 1/2λ , 1/4λ , 1/10λ etc.
Tolerance of Thickness	+/-0.1, +/-0.05, +/-0.01 etc.
Centration	+/-2′,+/-1′ etc.
Aperture N	5, 1 etc.
Irregularity ΔN	2, 1, 0.5, 0.2 etc.
Surface quality	60/40, 40/20, 20/10, 10/5 etc.

Basic Info

Shape: Round
Material: Optical Glass
Surface Flatness: Lambda/10@633nm
Surface Quality: 10-5 ~ 20/10
Parallelism: <3 Arcmin
Diameter Tolerance: +0.00/-0.10mm
Thickness Tolerance: +/- 0.2mm
Clear Aperture: >90% of Central Diameter
Coating: Optional
Bevel: 0.30mm X 45°
Trademark: HHOPTEC
Origin: Jilin

Product Description

Gerneral purpose plane windows
Flat polished surfaces
Laser finish both sides
Apply any anti-reflecting coating
IR Silicon Monocrystal Optics, Aspherical Lenses

These general purpose plane windows are polished to lambda/10 flatness except where indicated otherwise.They are intended for for transmissive use and are parallel to better than 3 arcmin or 10 arcsec. Select a coating appropriate to your application or contact us with your special coating requirements.

Parameters:

Surface Flatness: λ/10@633nm
Surface Quality 10-5 ~ 20/10
Parallelism <3 arcmin
Diameter Tolerance +0.00/-0.10mm
Thickness Tolerance ± 0.2mm
Clear Aperture >90% of central diameter
Coating Optional
Bevel 0.30mm x 45°
UV fused silica window

Surface Flatness λ/10@633nm
Surface Quality 10-5 scratch and dig
Parallelism <3 arcmin
Diameter Tolerance +0.00/-0.10mm
Thickness Tolerance ± 0.2mm
Clear Aperture >90% of central diameter
Coating Optional
Bevel 0.30mm x 45°

CaF2 window

Surface Flatness λ/4@633nm
Surface Quality 20/10-40/20
Parallelism <3 arcmin
Diameter Tolerance +0.00/-0.10mm
Thickness Tolerance ± 0.2mm
Clear Aperture >90% of central diameter
Coating Optional
Bevel 0.30mm x 45°
