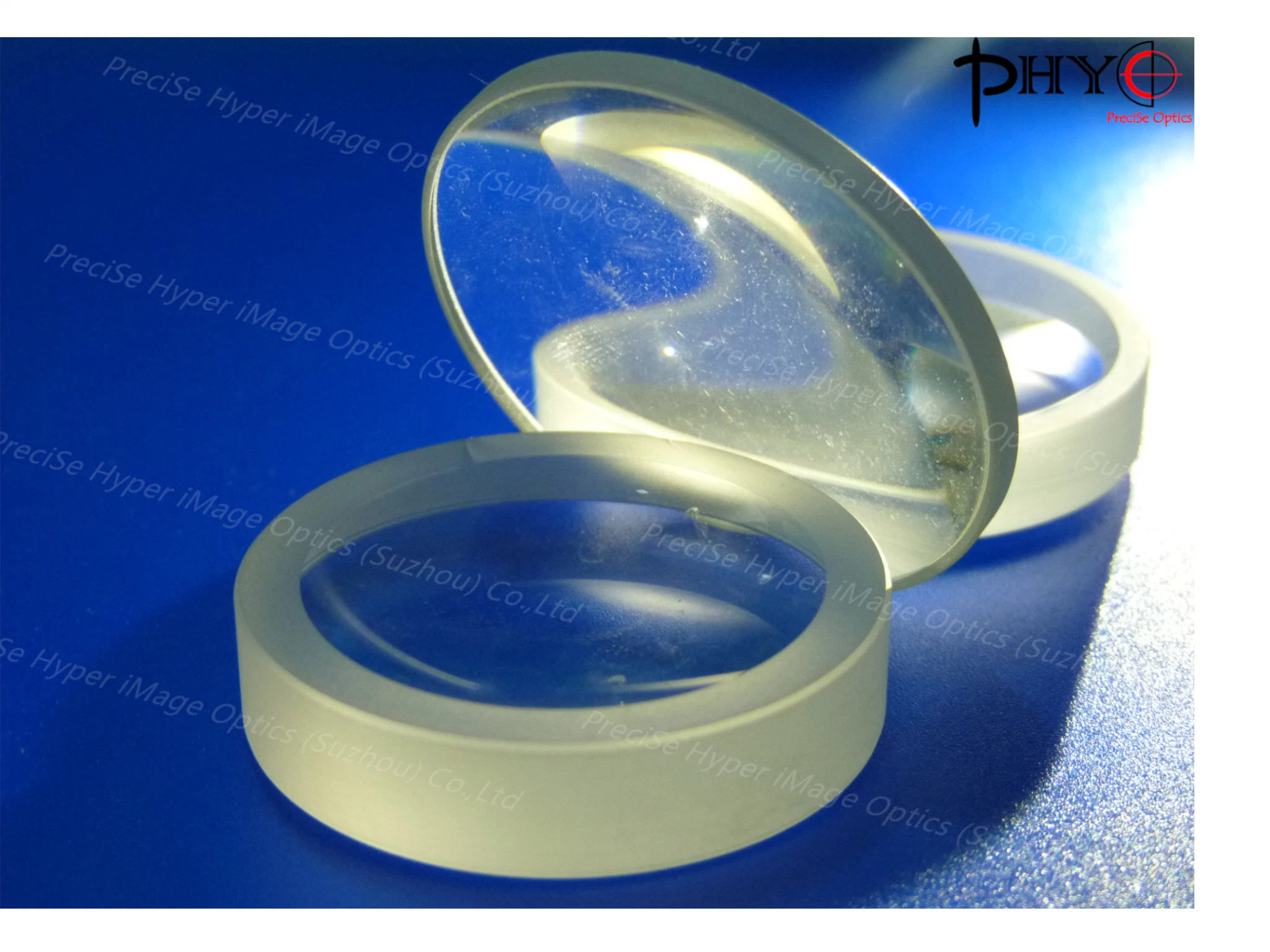

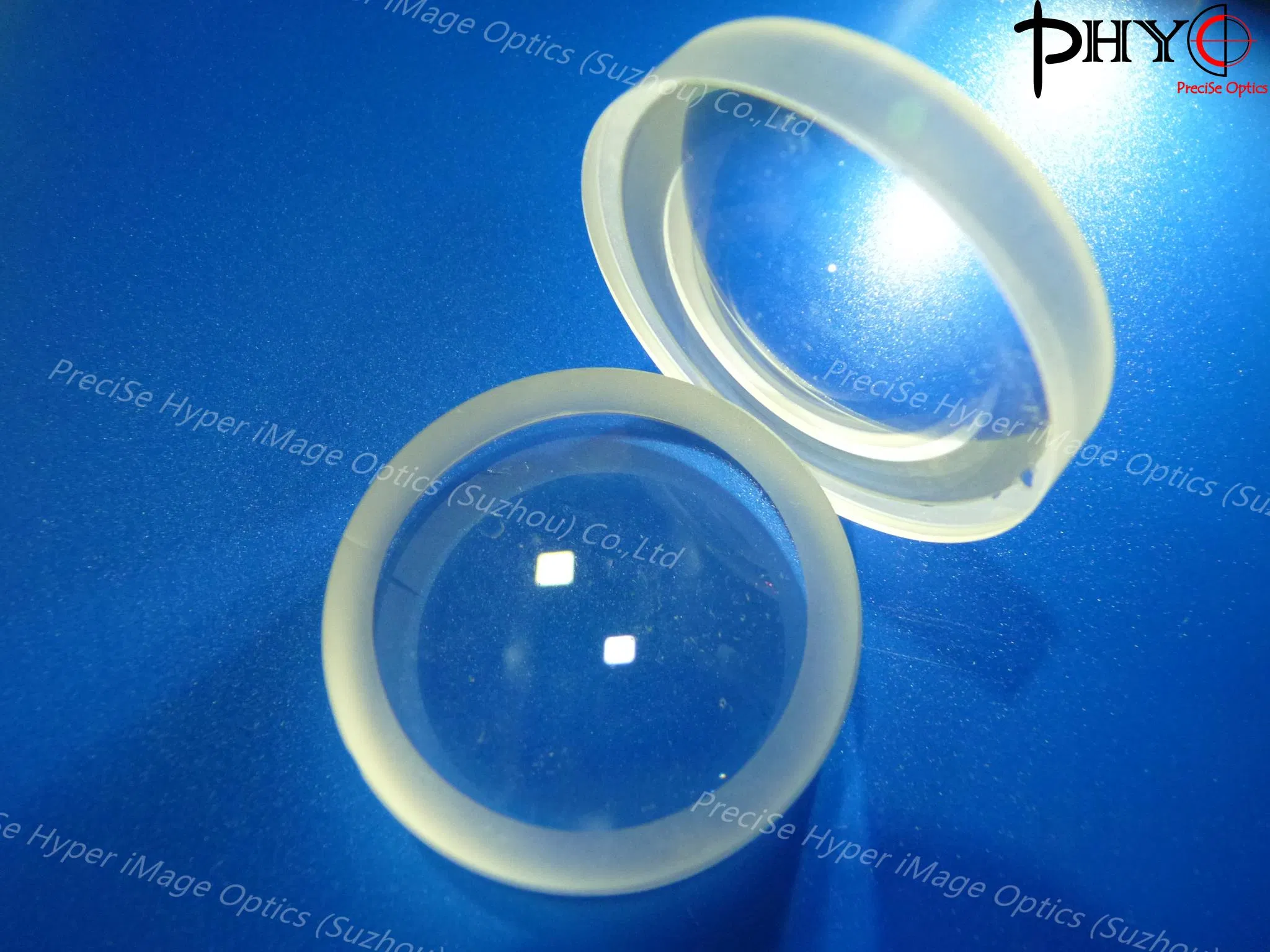

K9 Material Ar Coating Optical Double Concave Lens
Double Concave lens, also as bi-concave lens. It is the similar function with the plano concave lens. The used wavelength range as 190-2100nm. Material can be N-BK7,Fused Silica,CaF2,SF11,H-BaK4,H-BaK7,etc, other special requested can be customerized. Coating still available. SpecificationCommercial......
Send Inquiry
Product Description
Double Concave lens, also as bi-concave lens. It is the similar function with the plano concave lens. The used wavelength range as 190-2100nm. Material can be N-BK7,Fused Silica,CaF2,SF11,H-BaK4,H-BaK7,etc, other special requested can be customerized. Coating still available.
| Specification | Commercial | High Precision |
| Material | As Required Schott,CDGM.etc. | As required Schott, CDGM,etc. |
| Diameter Tolerance | +0.00/-0.20mm | +0.00/-0.05mm |
| Focual Length Tolerance | Typical +/-5%@633nm | Typical +/-2% @633nm |
| Centration | Typical <3arcmin | Typical <3arcmin |
| Surface [email protected] | L/4 | L/8 |
| Surface Quality | 80-50 | 40-20 |
| Bevel | 0.2-0.5 | 0.05-0.2 |
| Coating | As required, with paint, Protection coating, high precision | |
PHYO OPTICS Production Material Choosing
_____________________________________________________________________________________

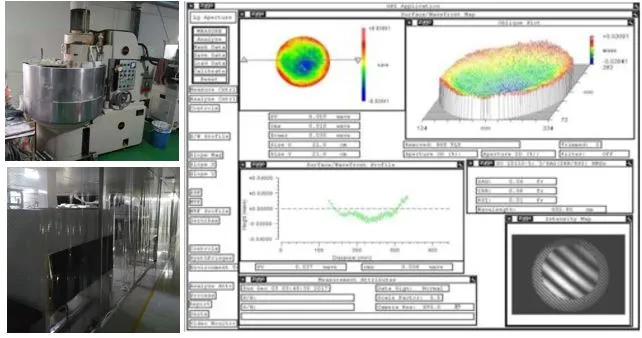

Surface finishing high precision Polishing and Coating
________________________________________________________________________________________

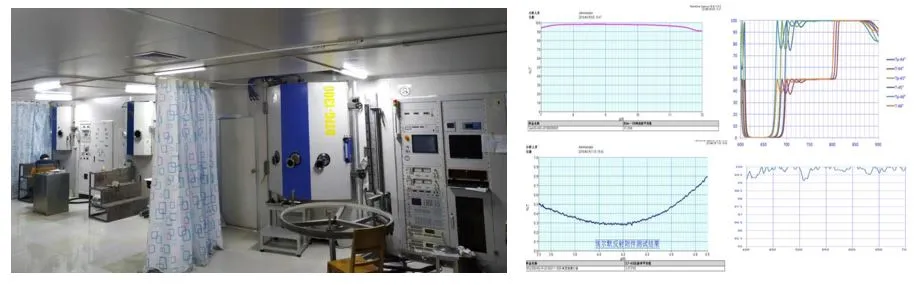

Thin film Coating and design
_________________________________________________________________________________________

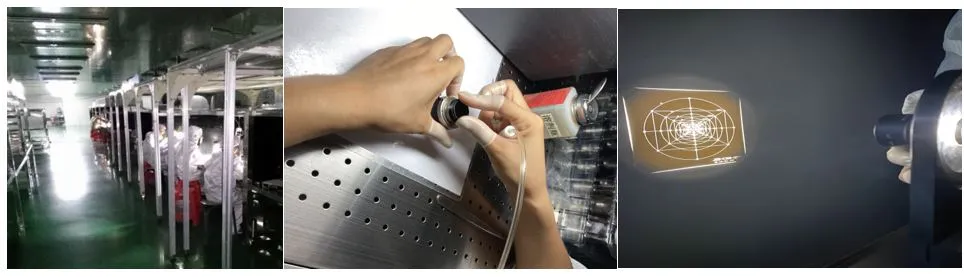

Assembly
_________________________________________________________________________________________
Packing for Delivery
__________________________________________________________________________________________
