Laser Lens/Laser Beam Expander/Laser Beam-Expander/Laser Beam Expanding Lens/Laser Expander
General Introduction: Raytek's laser Beam expander is an optical system composed of two or more elements, which can change the size and divergence characteristics of the beamProducts Name: Laser beam expander/Laser beam-expander/Laser beam expanding lens/Laser expanderAlias:Laser beam expander, ......
Send Inquiry
Product Description

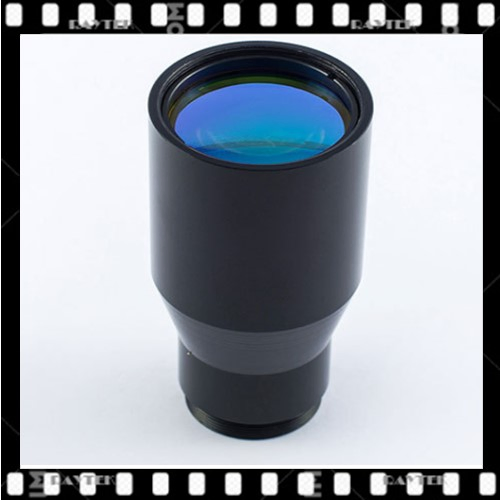

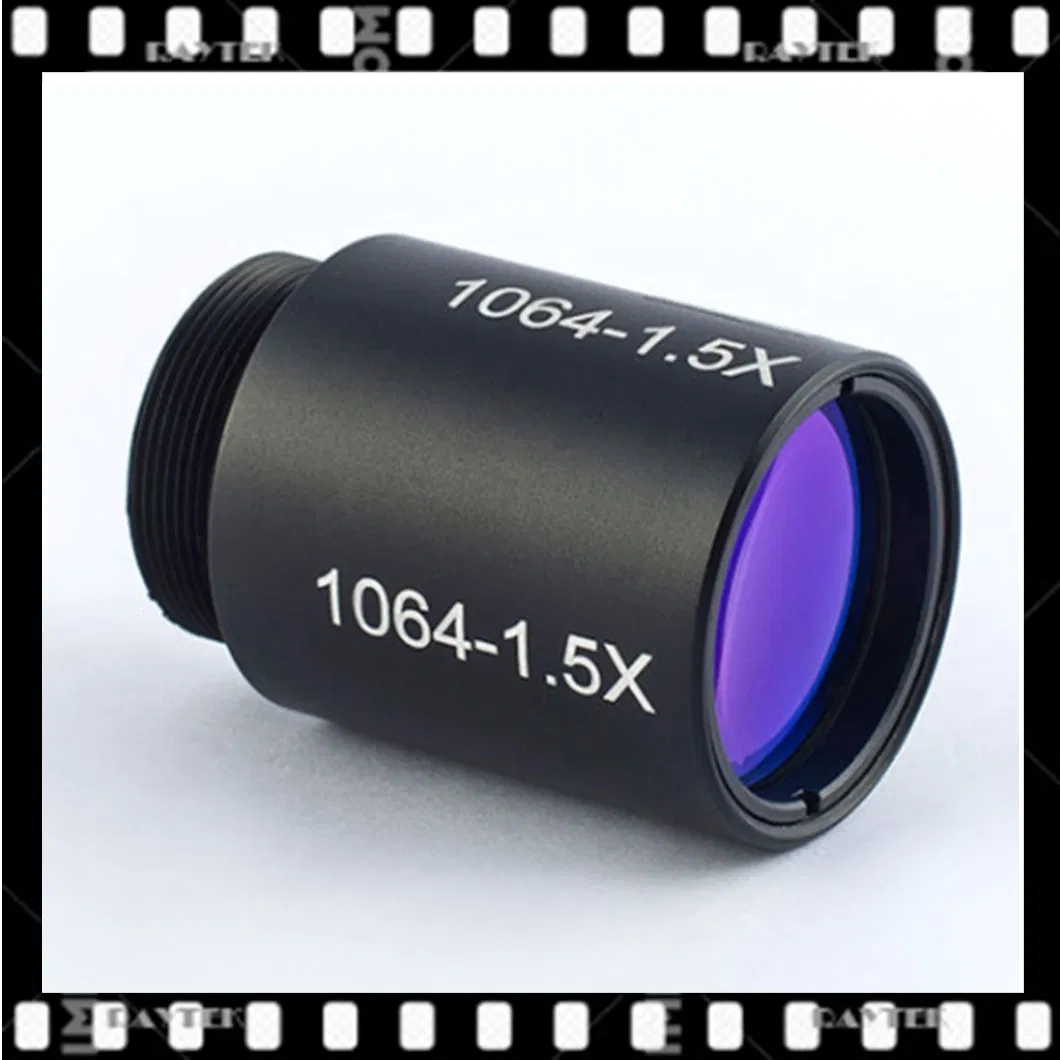

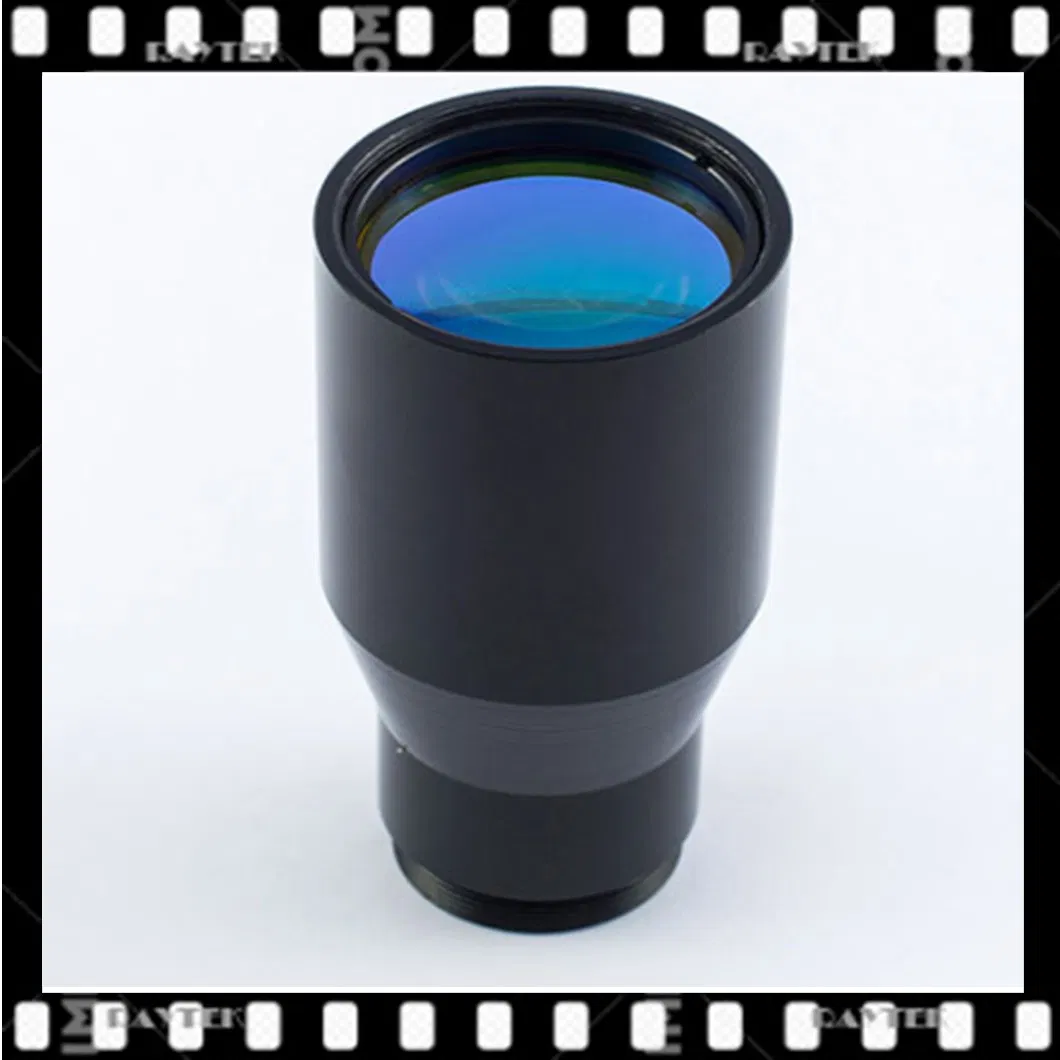

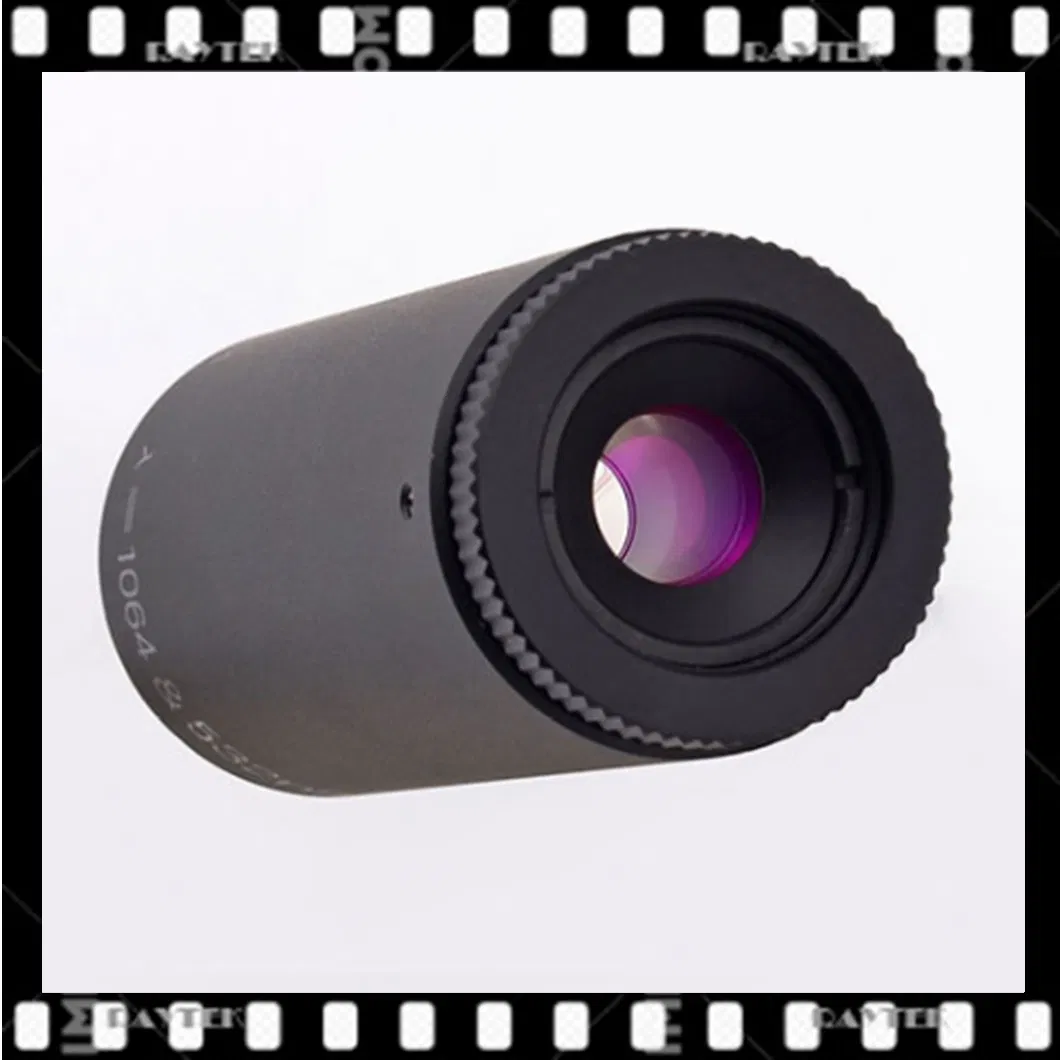

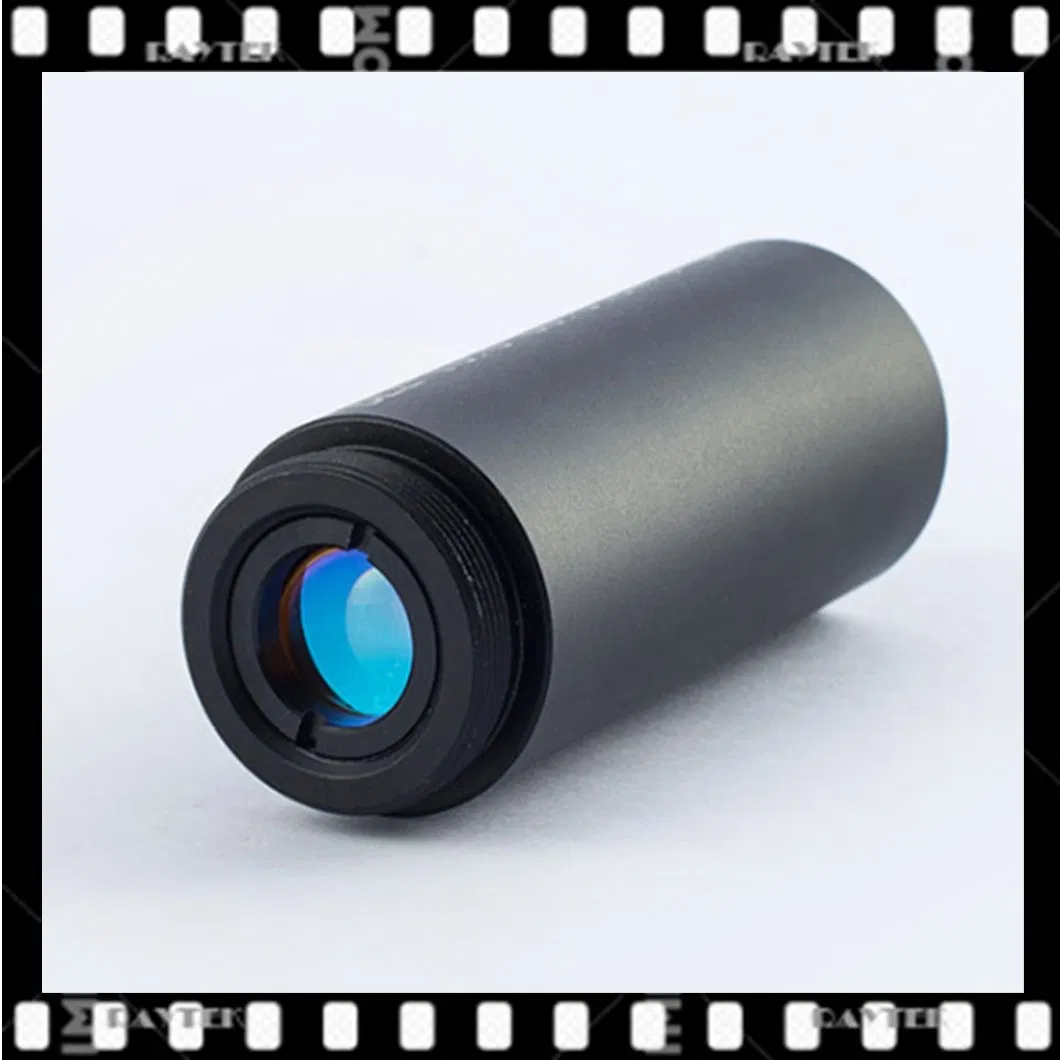

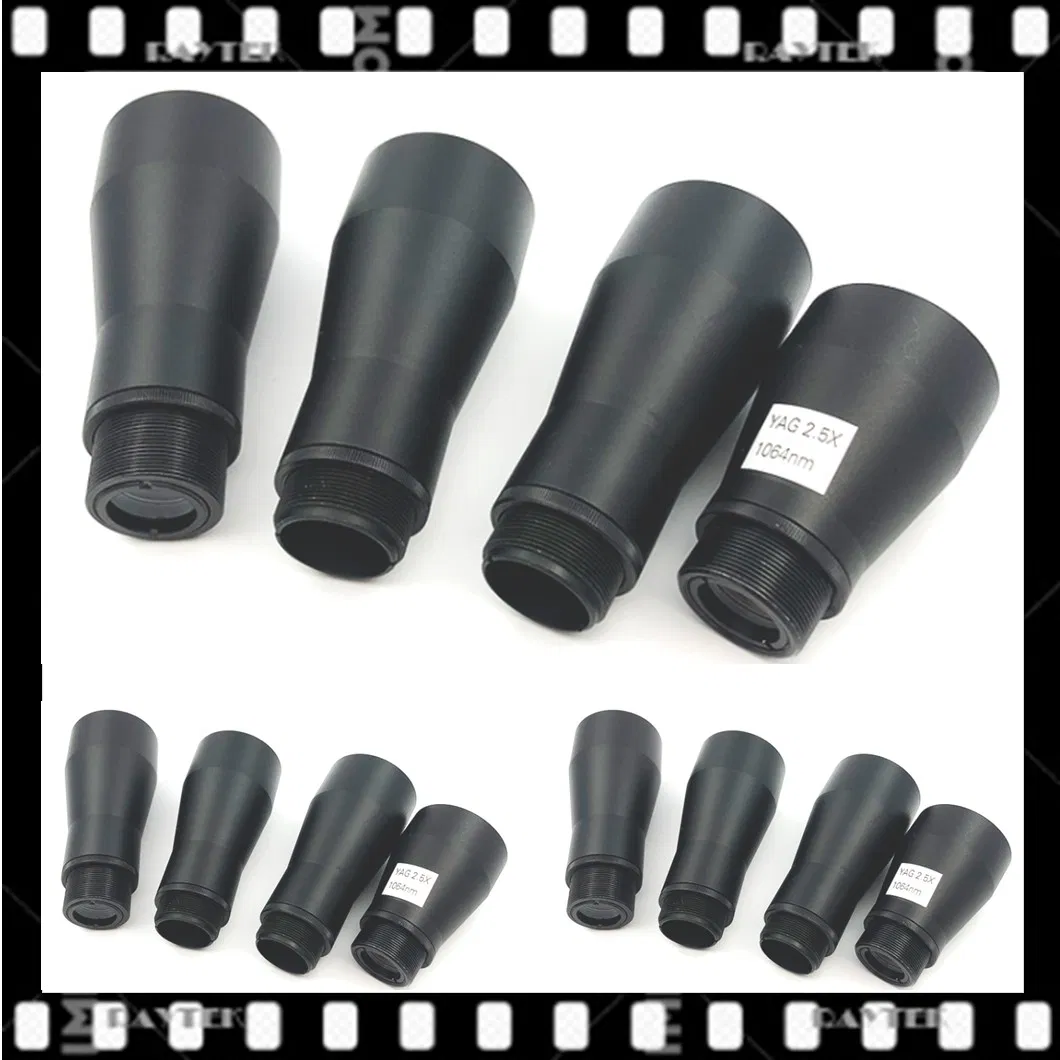

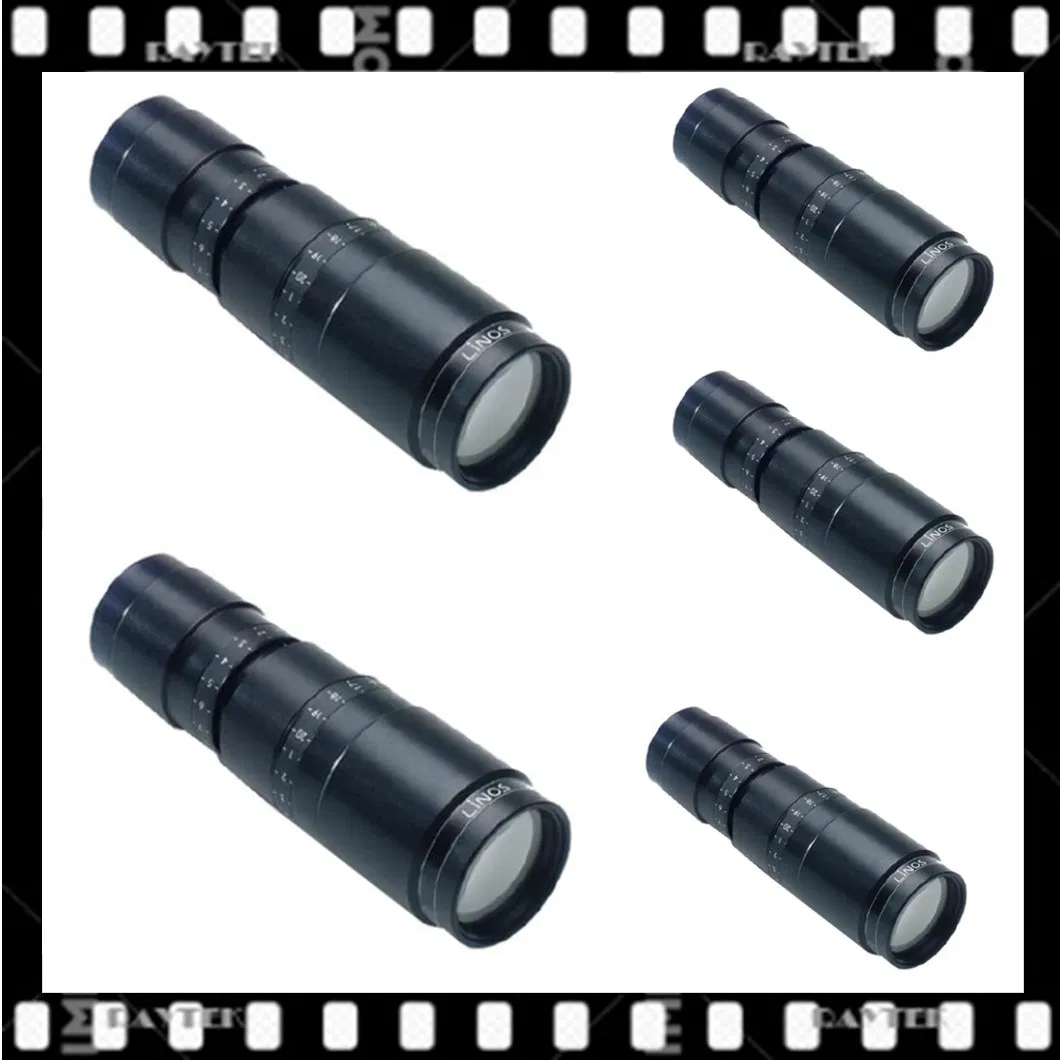

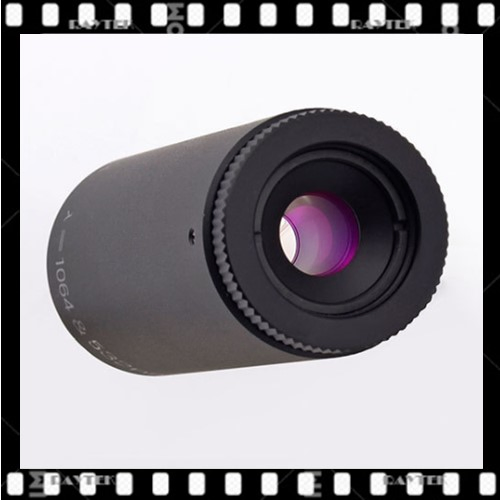

General Introduction: Raytek's laser Beam expander is an optical system composed of two or more elements, which can change the size and divergence characteristics of the beam
Products Name:
Laser beam expander/Laser beam-expander/Laser beam expanding lens/Laser expander
Alias:Laser beam expander, laser beam-expander, laser beam expanding lens, laser expander, etc
Main Applying:
Main Highlights:
1). Low insertion loss
2). High power bearing capacity
3). Transmission of visible light
4). Adjustable focal length (limited to some models)
5). It can be customized
6). Minimize the beam deviation
Main Specification:
Substrate: CVD Znse
Unit:mm
Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,J-FIBER,ETC
Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Raytekoptics Extra value added services offered:
1). Optical workcraft & process solution design;
2). Rough processing raw materials;
3). Semi finishing raw materials;
4). Fabricate custom sizes and shapes;
5). Design and supply custom coatings;
6). Modify and resurface customer supplied materials;
7). Drill holes, notch glass and provide beveled substrates;
8). Precision polish optics with non-standard aspect ratios;
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with "3R" policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
Products Name:
Laser beam expander/Laser beam-expander/Laser beam expanding lens/Laser expander
Alias:Laser beam expander, laser beam-expander, laser beam expanding lens, laser expander, etc
Main Applying:
| Applying 1 | By expanding the beam and focusing it, users can get a smaller focus. |
| Applying 2 | The laser beam expander can improve the collimation characteristics of the beam. |
| Applying 3 | The laser beam expander can also be used to reduce the beam diameter in acousto-optic or electro-optic modulators. |
| Applying 4 | When the spatial filter is combined with the beam expander, the energy distribution of the asymmetric facula tends to be symmetrical and more uniform. |
Main Highlights:
1). Low insertion loss
2). High power bearing capacity
3). Transmission of visible light
4). Adjustable focal length (limited to some models)
5). It can be customized
6). Minimize the beam deviation
Main Specification:
Substrate: CVD Znse
Unit:mm
| No. | Input Aperture | Out Aperture | Beam Expansion Multiple | - | Length | Diameter |
| RAY-LBX01# | 9 | 14 | 1.55 | - | 36 | 47 |
| RAY-LBX02# | 9 | 14 | 1.55 | - | 36 | 47 |
| RAY-LBX03# | 9 | 14 | 2.1 | - | 36 | 47 |
| RAY-LBX04# | 11.43 | 17.15 | 4 | - | 38.1 | 54.75 |
| RAY-LBX05# | 11.43 | 17.15 | 2 | - | 38.1 | 54.86 |
| RAY-LBX06# | 11.43 | 17.78 | 1.25 | - | 30.48 | 57.3 |
| RAY-LBX07# | 11.43 | 17.78 | 3 | - | 30.48 | 54.76 |
| RAY-LBX08# | 11.43 | 17.78 | 4 | - | 30.48 | 54.66 |
| RAY-LBX09# | 11.43 | 17.78 | 5 | - | 30.48 | 61.94 |
| RAY-LBX10# | 17.15 | 22.86 | 1.5 | - | 30.48 | 53.69 |
| RAY-LBX11# | 11.43 | 22.86 | 2.5 | - | 36 | 61.37 |
| RAY-LBX12# | 11.43 | 22.86 | 2.5 | - | 36 | 69.07 |
| RAY-LBX13# | 17.15 | 22.86 | 2.5 | - | 36 | 68.56 |
| RAY-LBX14# | 11.43 | 22.86 | 5 | - | 30.5 | 56.5 |
| RAY-LBX15# | 11.43 | 22.86 | 7.5 | - | 30.48 | 61.94 |
Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,J-FIBER,ETC
Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Raytekoptics Extra value added services offered:
1). Optical workcraft & process solution design;
2). Rough processing raw materials;
3). Semi finishing raw materials;
4). Fabricate custom sizes and shapes;
5). Design and supply custom coatings;
6). Modify and resurface customer supplied materials;
7). Drill holes, notch glass and provide beveled substrates;
8). Precision polish optics with non-standard aspect ratios;
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with "3R" policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
