Optical Bk7 K9 Quartz Glass Double Concave Cylindrical Lens Ar Coated
Product DescriptionOptical Lenses are optical components designed to focus or diverge light, widely applicated from microscopy to laser processing. A Plano-Convex or Double-Convex lens causes light to focus to a point, while a Plano-Concave or Double-Concave lens diverges the light which traveling t......
Send Inquiry
Product Description
Product Description
Optical Lenses are optical components designed to focus or diverge light, widely applicated from microscopy to laser processing. A Plano-Convex or Double-Convex lens causes light to focus to a point, while a Plano-Concave or Double-Concave lens diverges the light which traveling through the lens. Achromatic Lenses are ideal for correcting color, aspheric lenses are designed to correct spherical aberration.Ge, Si, or ZnSe lenses are suited for transmitting the Infrared (IR) spectrum, fused silica is well suited for the Ultraviolet (UV).

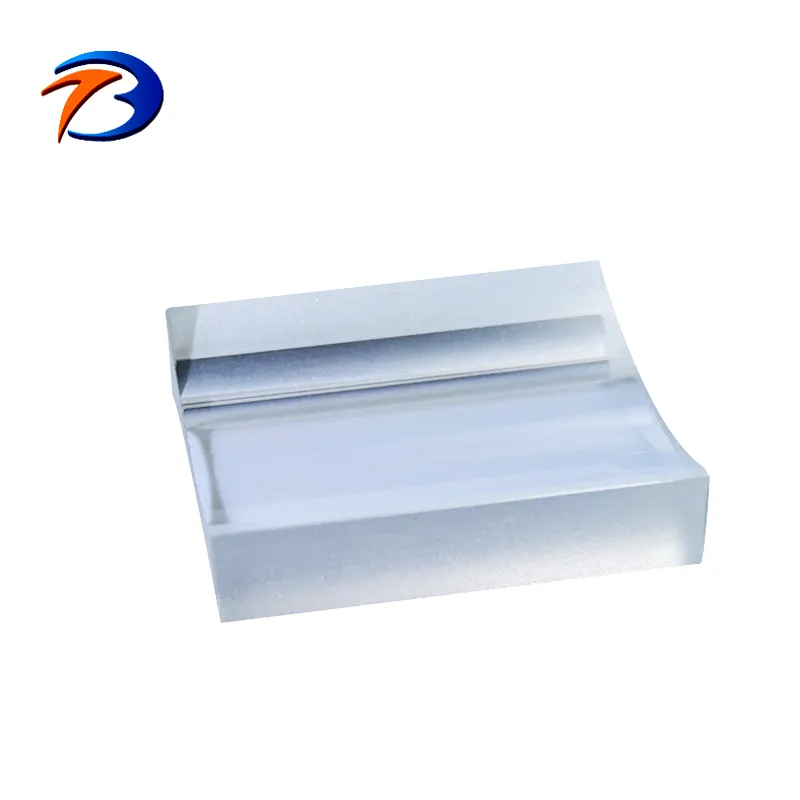

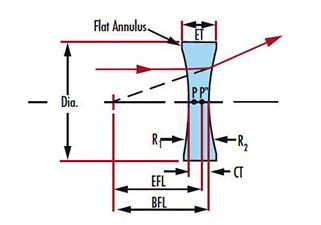

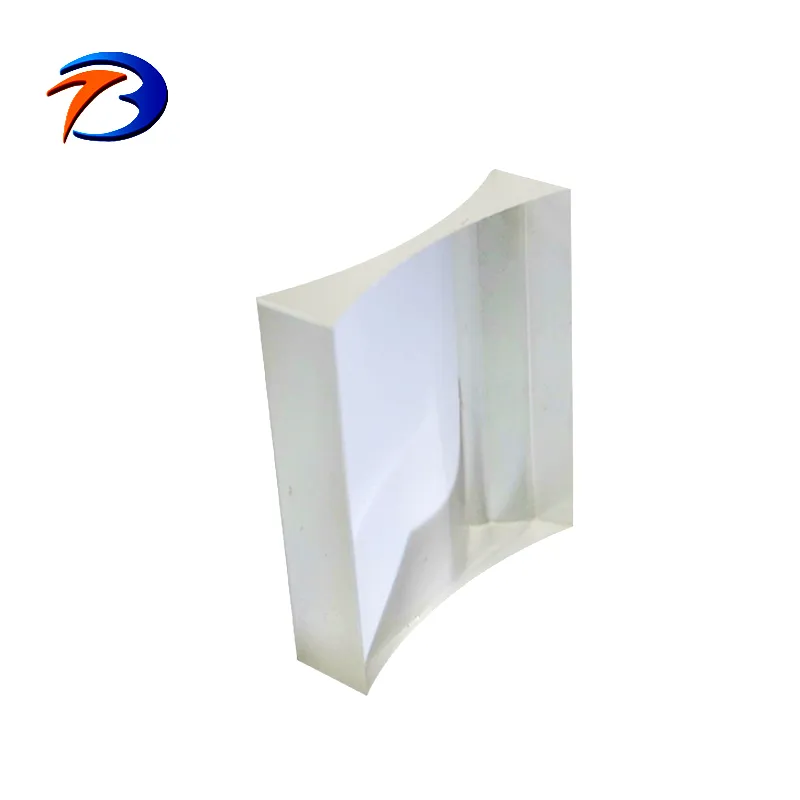

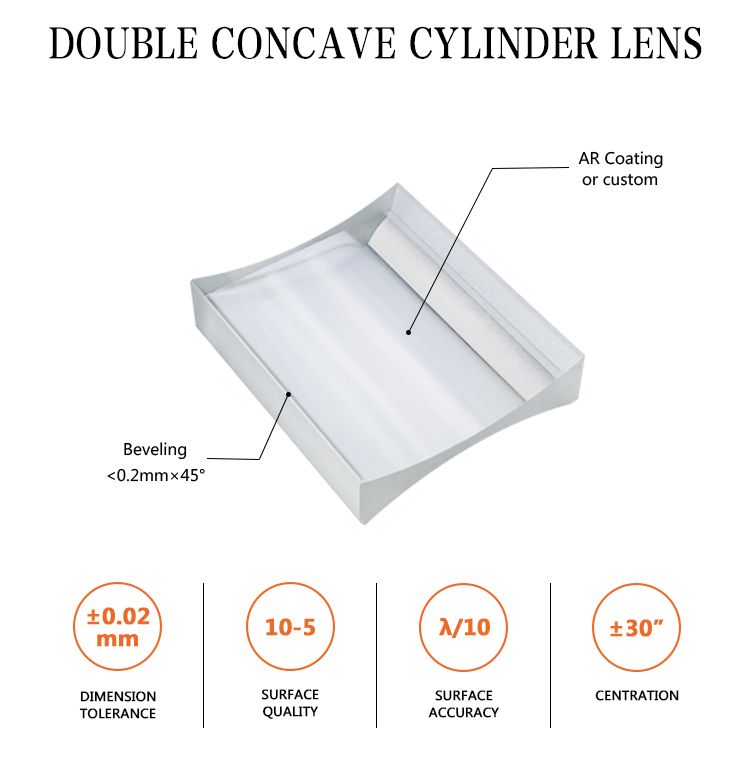

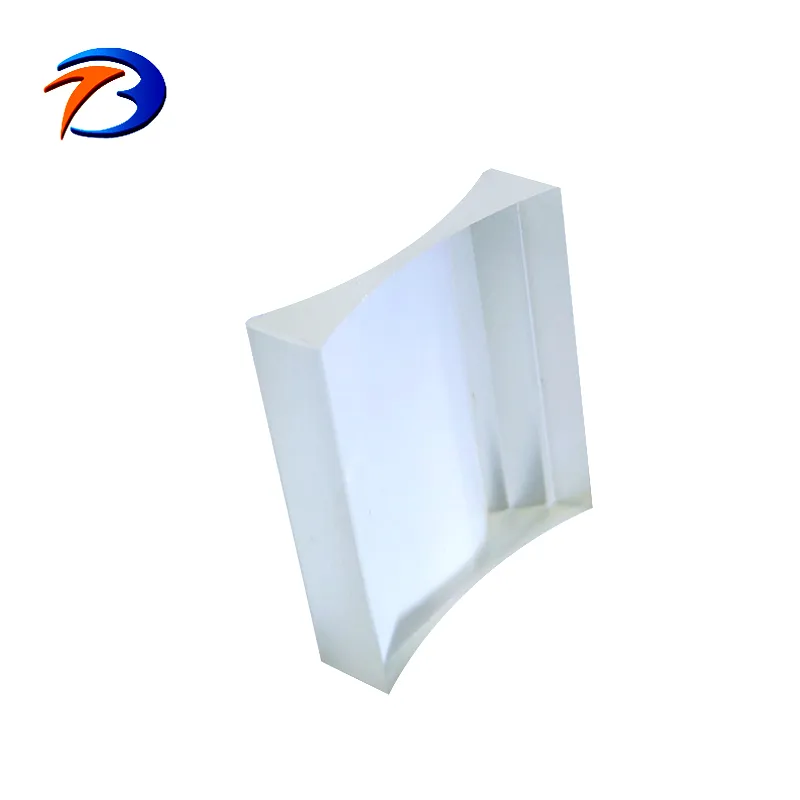

Double Concave Cylindrical Lens
Cylindrical Lenses are typically used to focus incoming light to a line, or to change the aspect ratio of an image. Cylindrical Lenses have a single cylindrical surface that causes incoming light to be focused in only a single dimension, stretching the image. Cylindrical Lenses are available with positive or negative focal lengths, ideal for laser line generation or anamorphic beam shaping to circularize laser outputs.
Shenyang Ebetter Optics Co., Ltd. has been engaged in more than 20 years. We have rich experience in production and customer service, it can meet the different custom requirement of customers.Our main products include Diffraction gratings, Optical lens, prisms, Optical mirrors, Optical windows and Optical filters etc.All products of our company have passed CE and RoHS certification, and we have ISO9001 certification.
Optical Lenses are optical components designed to focus or diverge light, widely applicated from microscopy to laser processing. A Plano-Convex or Double-Convex lens causes light to focus to a point, while a Plano-Concave or Double-Concave lens diverges the light which traveling through the lens. Achromatic Lenses are ideal for correcting color, aspheric lenses are designed to correct spherical aberration.Ge, Si, or ZnSe lenses are suited for transmitting the Infrared (IR) spectrum, fused silica is well suited for the Ultraviolet (UV).
Double Concave Cylindrical Lens
Cylindrical Lenses are typically used to focus incoming light to a line, or to change the aspect ratio of an image. Cylindrical Lenses have a single cylindrical surface that causes incoming light to be focused in only a single dimension, stretching the image. Cylindrical Lenses are available with positive or negative focal lengths, ideal for laser line generation or anamorphic beam shaping to circularize laser outputs.
| Diameter Tolerance | +0.0/-0.1mm |
| Center Thickness Tolerance | ±0.1 mm.. |
| Focal Length Tolerance | ±1%.. |
| Surface Quality | 60/40, 40/20 or better.. |
| Material | BK7, UVFused silica, Ge,CaF2, ZnSe |
| Clear Aperture | >90% |
| Centering | <3 arc min |
| Coating | Custom |
| Bevel | Protective bevel as needed |
Shenyang Ebetter Optics Co., Ltd. has been engaged in more than 20 years. We have rich experience in production and customer service, it can meet the different custom requirement of customers.Our main products include Diffraction gratings, Optical lens, prisms, Optical mirrors, Optical windows and Optical filters etc.All products of our company have passed CE and RoHS certification, and we have ISO9001 certification.
