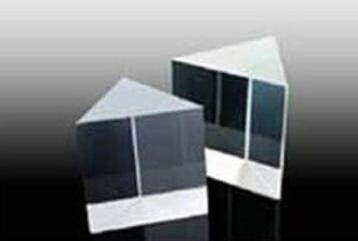

Optical prism glass right angle prism glass

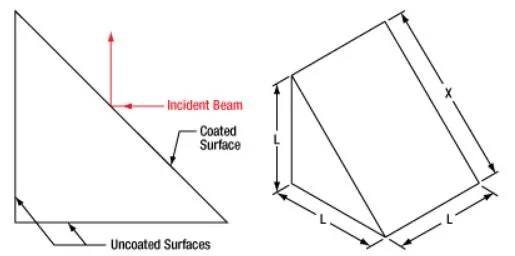

These prisms are used to direct beams at 90 degrees by using hypotenuse face in total
internal reflection (TIR). The right angle prisms are often preferable to an
inclined mirror in applications involving severe acoustic or inertial loads.



Specification

Material;optical glass such as bk7,b270,fused silica,sapphire,znse,caf2,ge.

Size:0.5mm to 300mm

Surface quality;40-20 or better

Flatness:1/4lambda or better

Dimension tolerance: 0.05mm

Angle tolerance: 5'-10'

Coating: AR,Aluminum,silver,black paint or customer request.

Coatings are on request



_{Overseas Exhibition}





FAQ:

Q: What's the way of shipping and cost?

A:(1) We accept DHL, Fedex, TNT, UPS, EMS etc.

   (2) If you have your own express account, it's great.If not,we could help you ship them.

 Q: How to pay?

A: T/T, Paypal, etc

Q: What's your MOQ?

A:  (1) For inventory, the MOQ is 5pcs.

   (2) For customized products, the MOQ is 10pcs-25pcs.

Q: What's the delivery time?

A:  (1) For the standard products

          For inventory: the delivery is 5 workdays after you place the order.

          For customized products: the delivery is 2 or 3 weeks after you place the order.

     (2) For the special-shaped products, the delivery is 4 or 6 workweeks after you place the order.

Q: Do you have standard products?

A: Our standard products in stock.

Q: Can I customize the products based on my need?

A: Yes, we can customize the material, specifications and optical coating for your optical components based on your needs.
