Thin Diameter 15mm CaF2 Calcium Fluoride Optical Window Wafer Instrument

Product Description

Product Description
Optical windows are falt, plane parallel plates which are often used as protective barriers for electronic sensors or detectors from outside environments. When selecting windows, please consider materials, transmission, scattering, parallelism and resisitance to certain environment or mechanical properties of the substrate.

Thin Diameter 15mm CaF2 Calcium Fluoride Optical Window Wafer Instrument

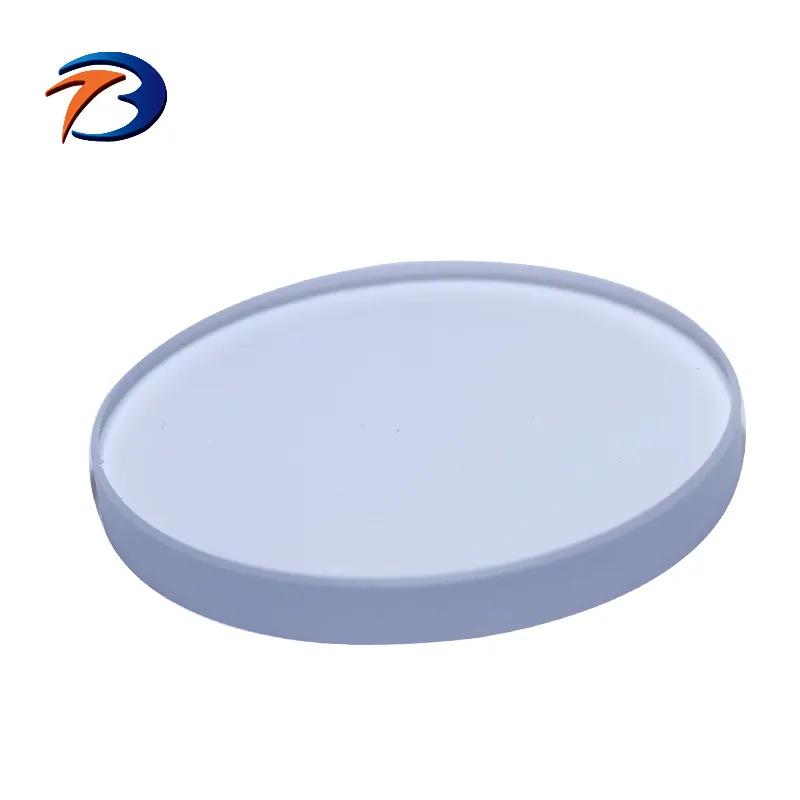

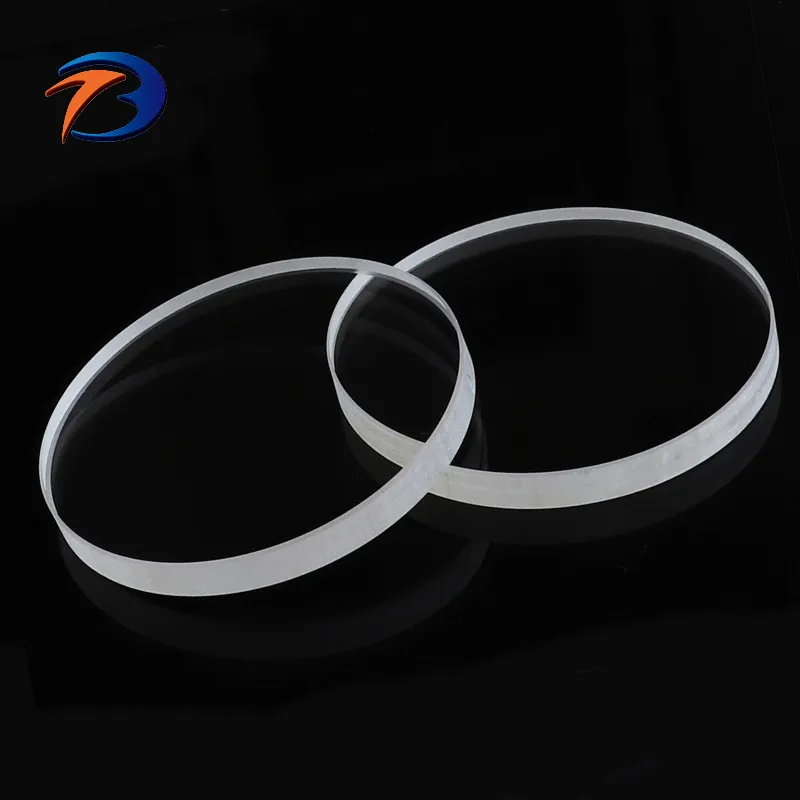

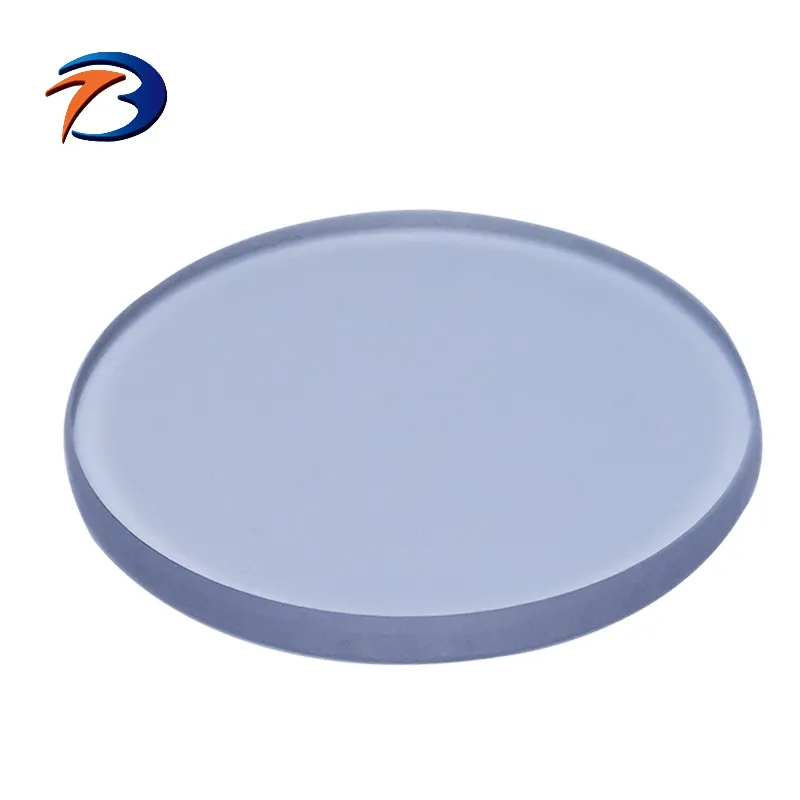

Calcium fluoride window/CaF2 window
Calcium fluoride window/CaF2 window material has a light transmission range of ultraviolet light 0.13 ~ far infrared 10μm (there are five levels: IR infrared, VIS visible, UV ultraviolet, VUV vacuum ultraviolet, excimer level). It is excellent ultraviolet and infrared Window material. Calcium fluoride (CaF2) crystals have a high laser damage threshold and are commonly used to fabricate optical components for excimer lasers. With strong shock and thermal shock resistance and good machinability. Calcium fluoride window is widely used in low energy nuclear physics experiments and detection of charged ions in environmental radiation monitoring and radiological medical diagnosis.

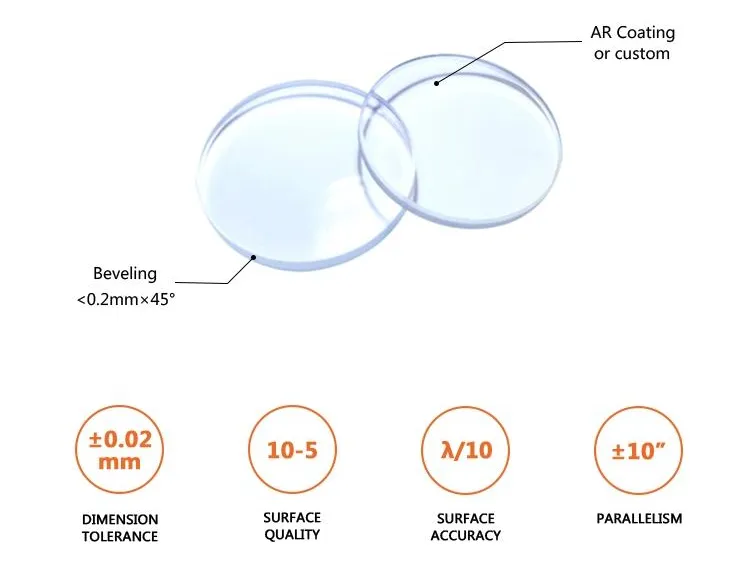

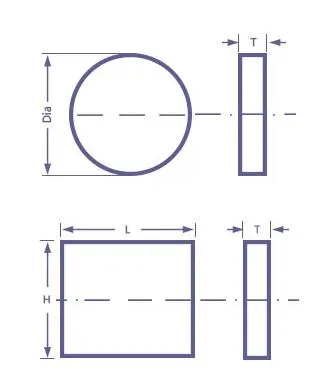

Diameter	0.2-300mm
Thickness	0.1-100mm
Dimension tolerance	+/-0.1mm or +/-0.02mm
Surface quality (scratch & dig)	60/40, 40/20 or better
Clear aperture	>85%, >90%
Surface accuracy	L/10 L/2 L
Parallelism	+/-3' ,+/-30''
Bevel	0.1~0.3mm x 45 degree
Coating	AR, BBAR or Custom

Shenyang Ebetter Optics Co., Ltd. offers a wide range of Optical lenses:Plano-convex lenses, Bi-convex lenses,Plano-concavelenses, Bi-concave lenses, Meniscus lenses, Ball lenses and Aspherical lenses.

Calcium fluoride window/CaF2 window
