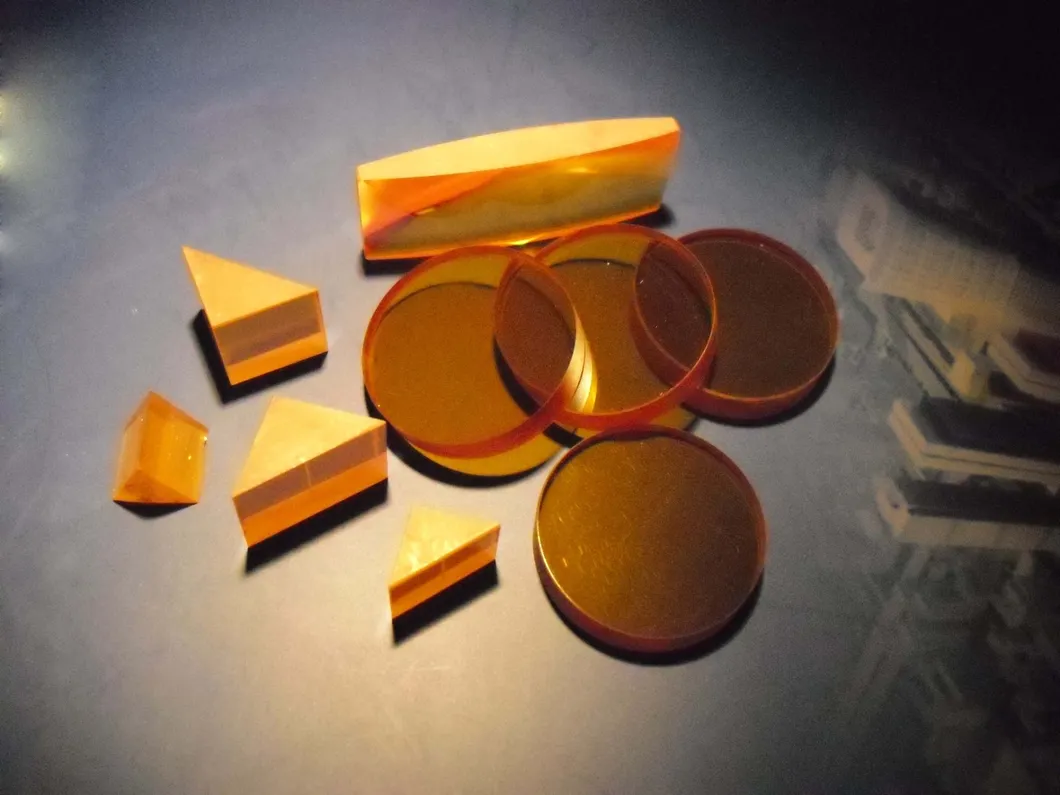

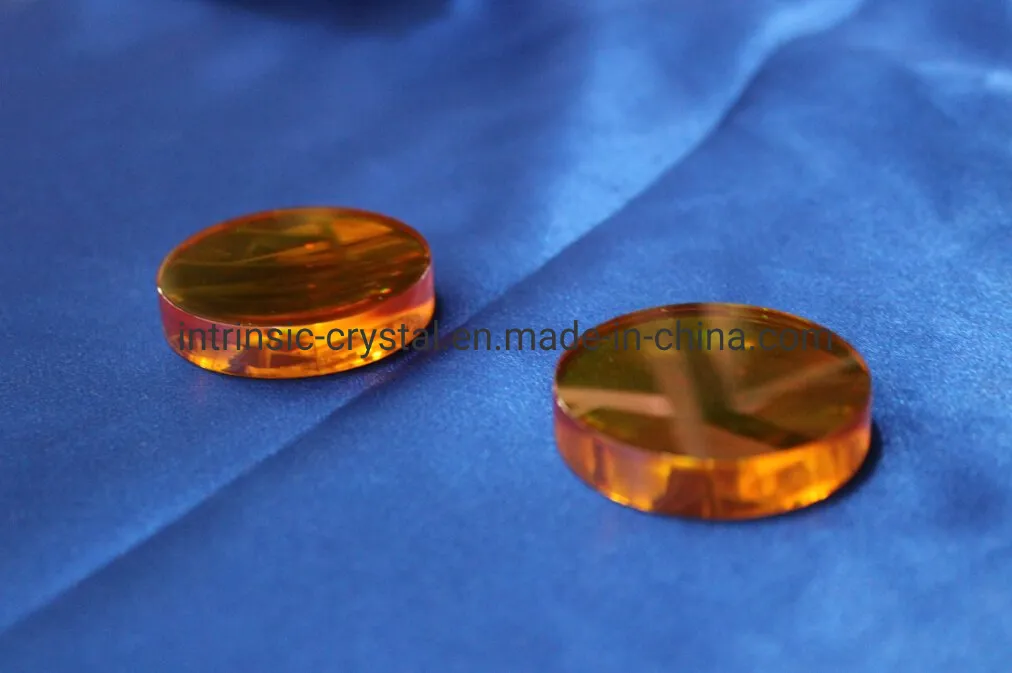

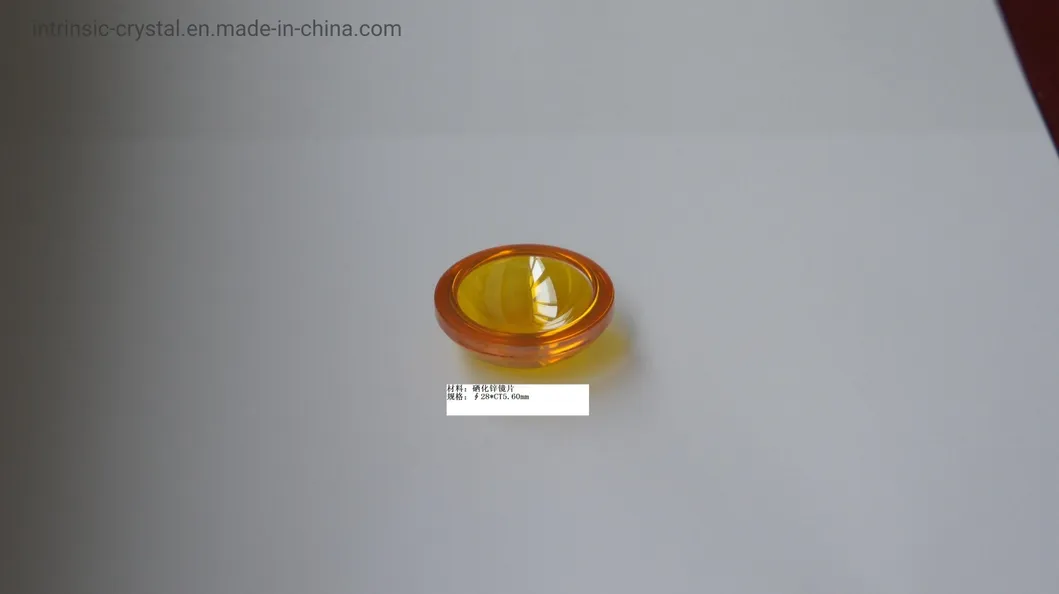

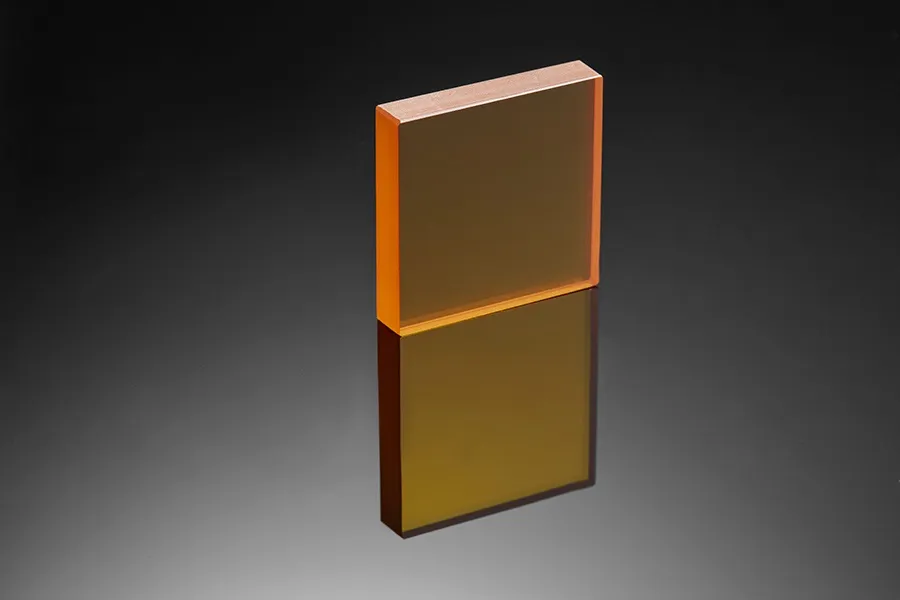

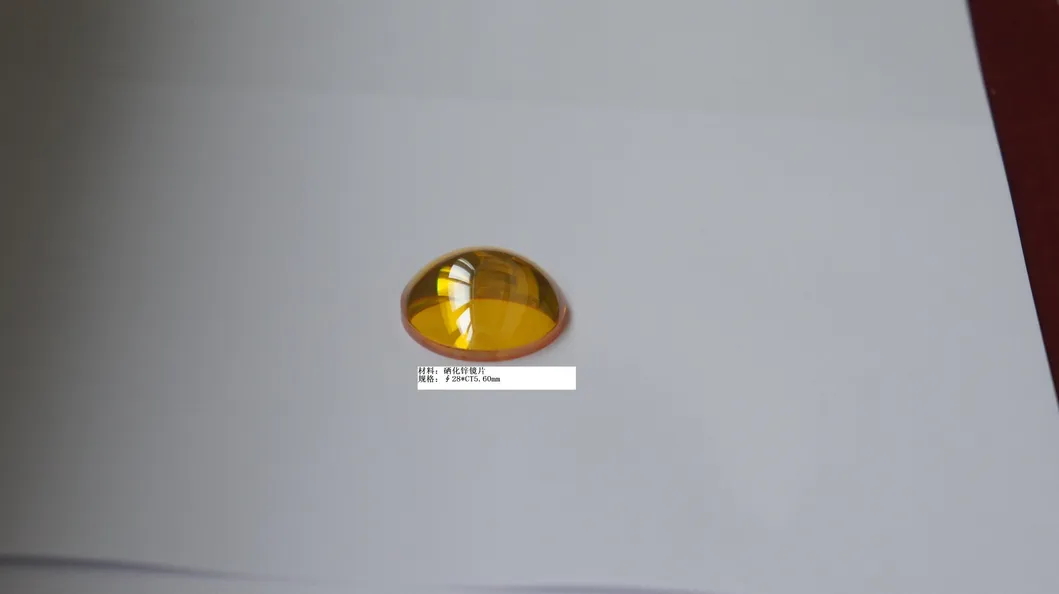

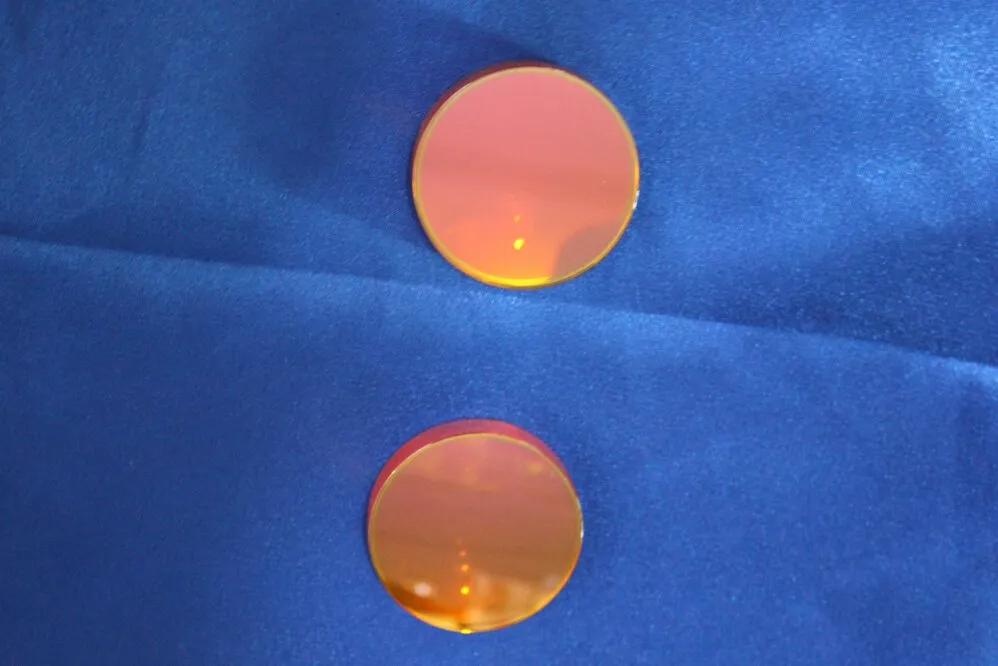

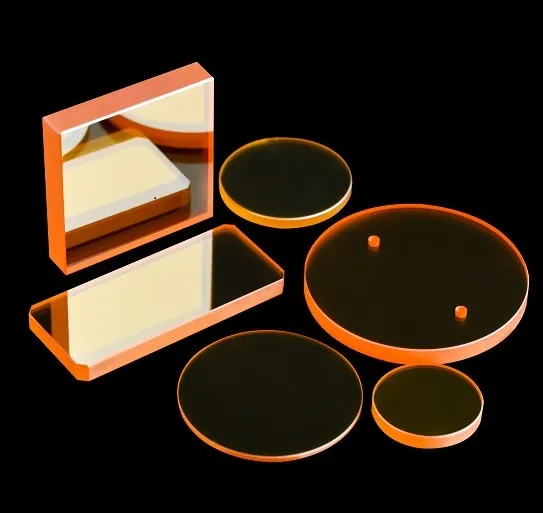

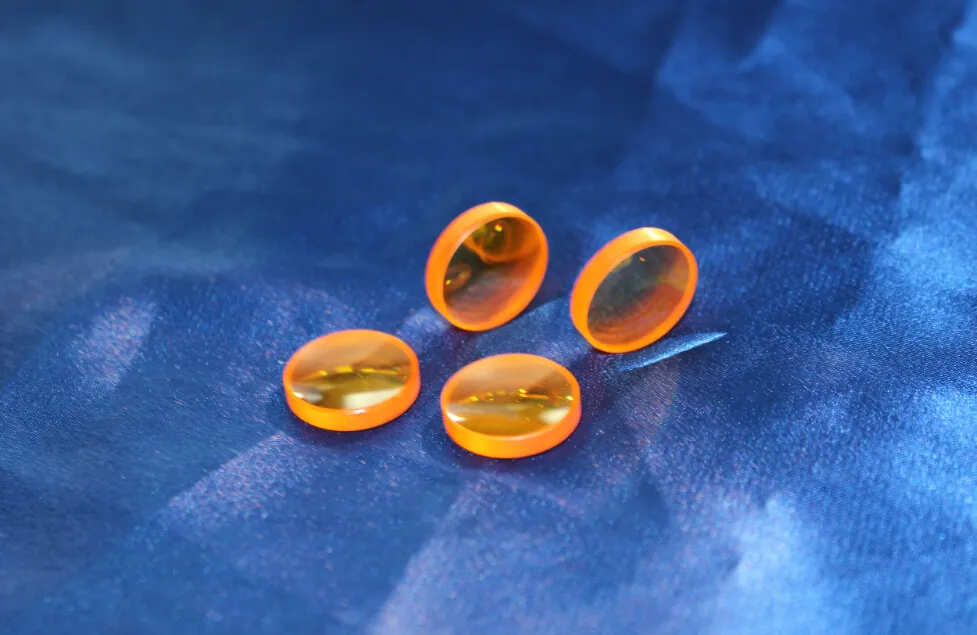

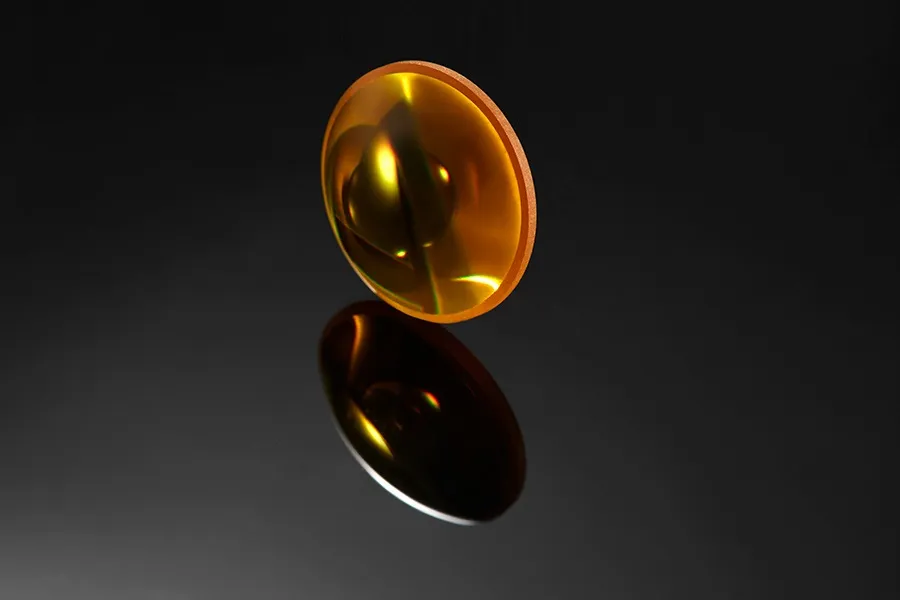

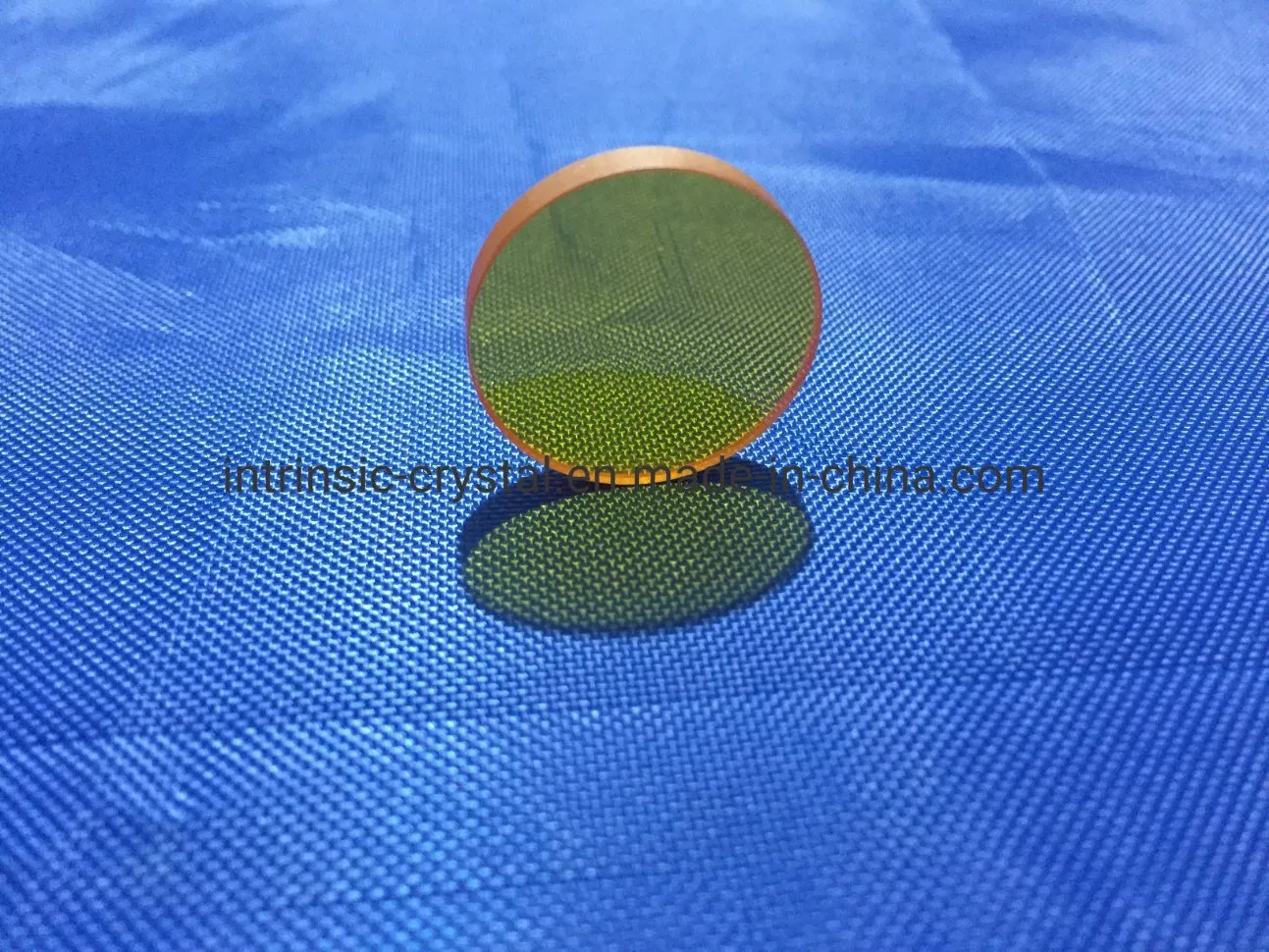

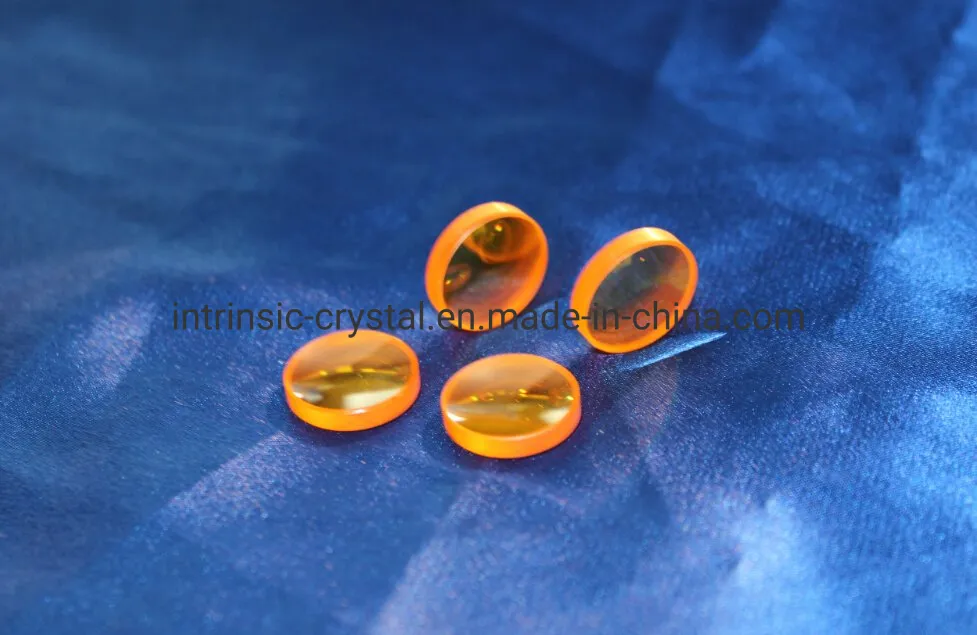

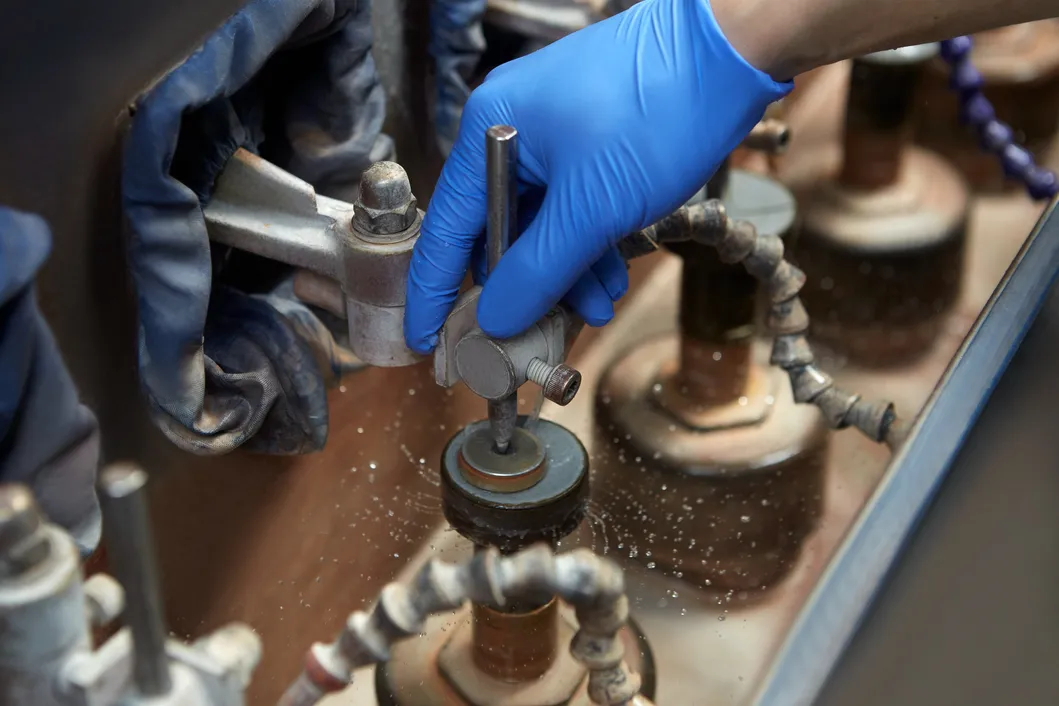

Znse CVD Znse Cylinder Lense, Optical Lens
PARAMETER VALUE Surface figure 3 Lambda at 633 nm per inch Scratch-Dig 60 - 40 Diameter tolerance ± 0.1 mm Paraxial Focal Length Tolerance ± 2% Centration less than 5 arc minutes Clear aperture 90 % Bevels (0.2+0.3) mm x 45° D, mm FLx, mm R, mm tc, mm tem......
Send Inquiry
Product Description
| PARAMETER | VALUE | |||
| Surface figure | 3 Lambda at 633 nm per inch | |||
| Scratch-Dig | 60 - 40 | |||
| Diameter tolerance | В± 0.1 mm | |||
| Paraxial Focal Length Tolerance | В± 2% | |||
| Centration | less than 5 arc minutes | |||
| Clear aperture | 90 % | |||
| Bevels | (0.2+0.3) mm x 45В° | |||
| D, mm | FLx, mm | R, mm | tc, mm | temin, mm | Part Number | |||||||
| 12,7 | 25,0 | 75,0 | 2,3 | 2,0 | CCX14-01 | |||||||
| 12,7 | 50,0 | 150,0 | 2,1 | 2,0 | CCX14-02 | |||||||
| 25,4 | 25,0 | 75,0 | 3,1 | 2,0 | CCX14-03 | |||||||
| 25,4 | 50,0 | 150,0 | 2,5 | 2,0 | CCX14-04 | |||||||
| 25,4 | 75,0 | 225,0 | 2,4 | 2,0 | CCX14-05 | |||||||
| 25,4 | 100,0 | 300,0 | 2,3 | 2,0 | CCX14-06 | |||||||
| 25,4 | 150,0 | 450,0 | 2,2 | 2,0 | CCX14-07 | |||||||
| 25,4 | 200,0 | 600,0 | 2,1 | 2,0 | CCX14-08 | |||||||
| 25,4 | 250,0 | 750,0 | 2,1 | 3,0 | CCX14-09 | |||||||
| 50,8 | 50,0 | 150,0 | 5,2 | 3,0 | CCX14-10 | |||||||
| 50,8 | 100,0 | 300,0 | 4,1 | 3,0 | CCX14-11 | |||||||
| 50,8 | 150,0 | 450,0 | 3,7 | 3,0 | CCX14-12 | |||||||
| 50,8 | 200,0 | 600,0 | 3,5 | 3,0 | CCX14-13 | |||||||
| 50,8 | 250,0 | 750,0 | 3,4 | 3,0 | CCX14-14 | |||||||
| 50,8 | 500,0 | 1500,0 | 3,2 | 3,0 | CCX14-15 | |||||||
