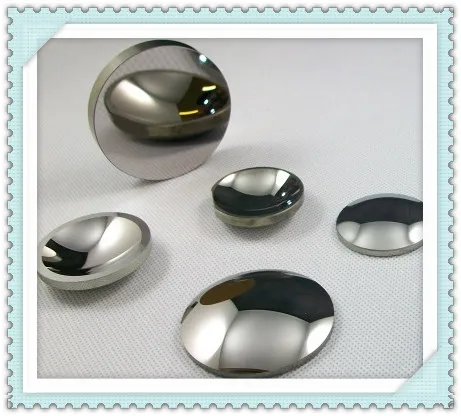

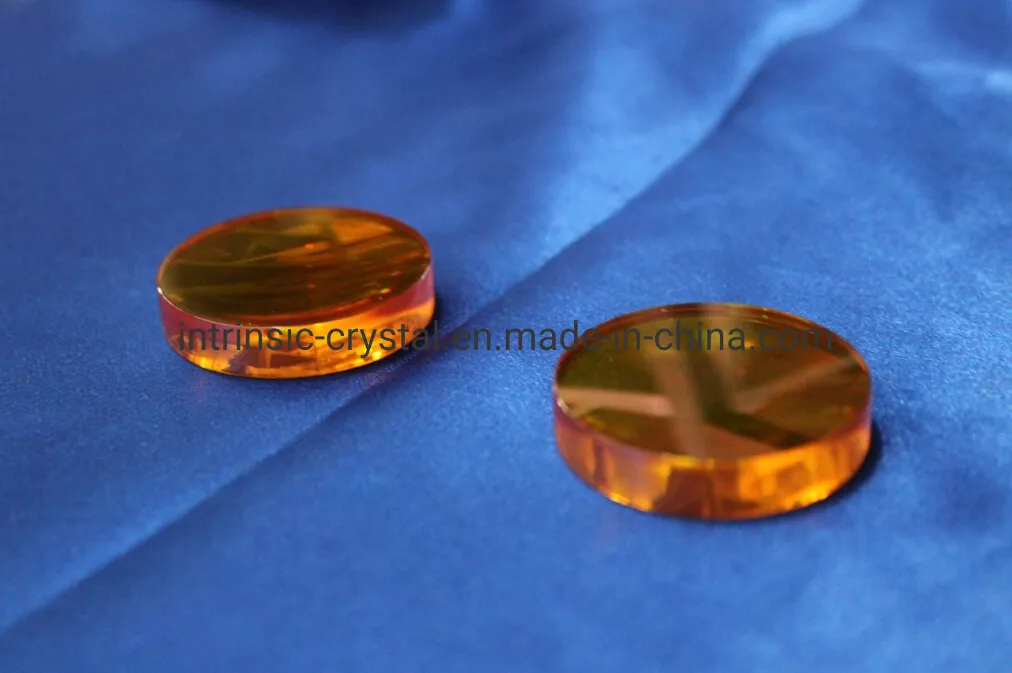

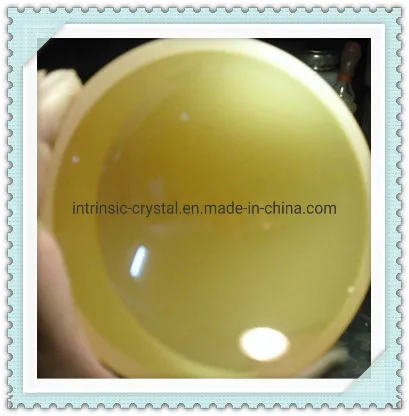

Znse Plano Convex Cylindrical Lens, Optical Lens
Zinc Sulfide (ZnS), Regular Grade. A Chemically Vapor Deposited (CVD) material, ZnS (regular) has good imaging quality over the 8-12µm band. It also transmits in the 3-5µm band, but with higher absorption and scatter. The material exhibits high strength and hardness, and good res......
Send Inquiry
Product Description
Zinc Sulfide (ZnS), Regular Grade. A Chemically Vapor Deposited (CVD) material, ZnS (regular) has good imaging quality over the 8-12µm band. It also transmits in the 3-5µm band, but with higher absorption and scatter. The material exhibits high strength and hardness, and good resistance to hostile environments. The ZnS regular is 50% harder than ZnS, multi-spectral grade and twice and hard as ZnSe. ZnS regular does not transmit well in the visible spectral region. It has the relatively low cost of about 2/3 the price of ZnS, multi-spectral grade or ZnSe. Zinc Sulfide is mainly used for windows and lenses in the 8µm to 12µm range. The reflective index is near 2.2. Zinc Sulfide is particularly strong and can be used for infrared windows in high speed aircraft and vacuum applications.

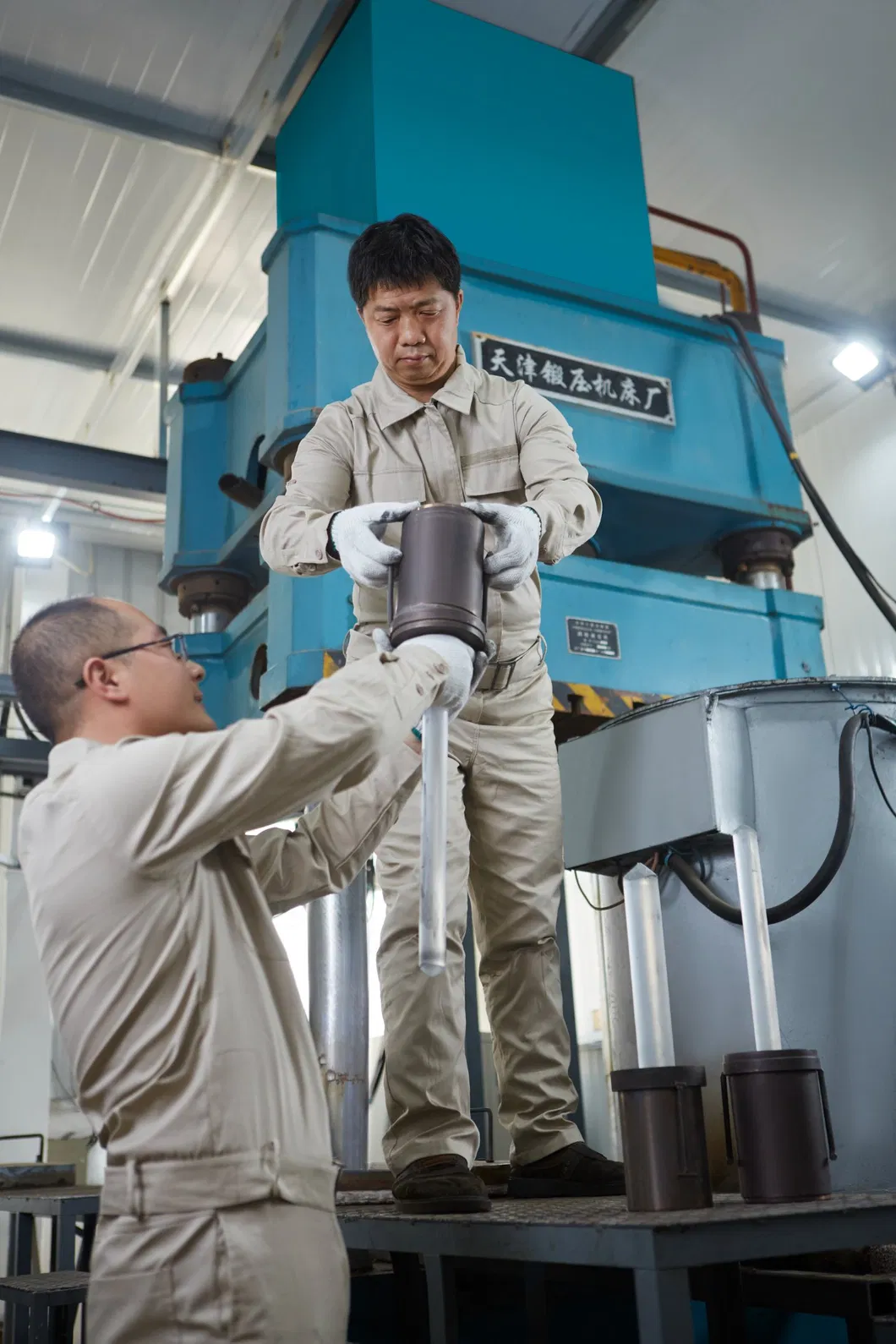

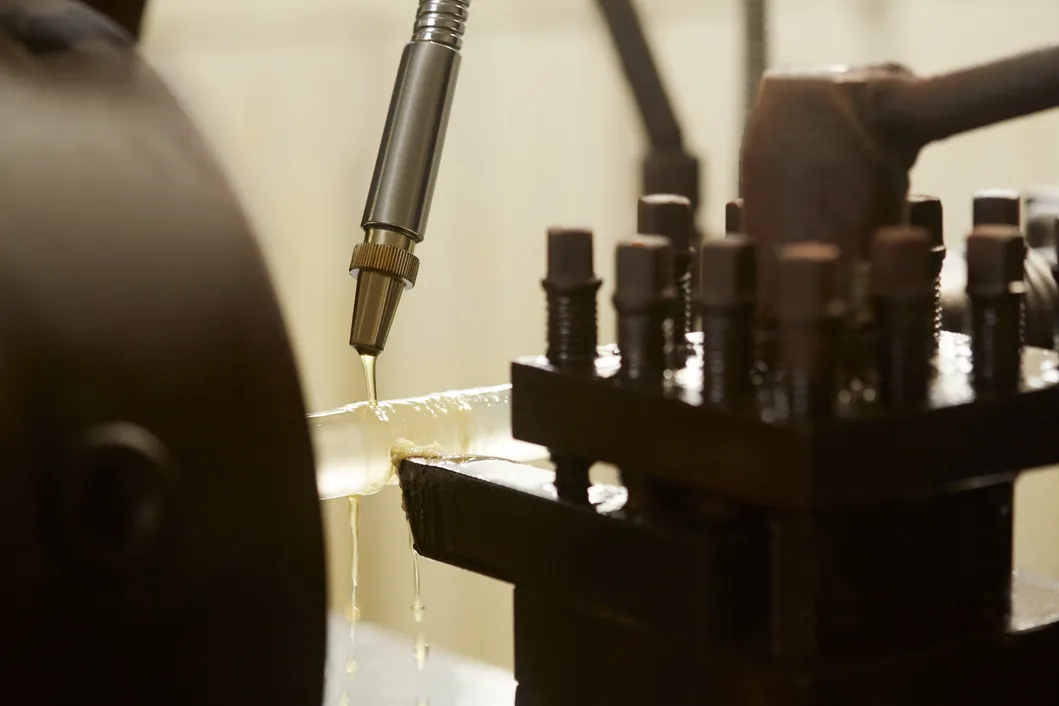

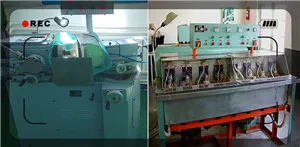

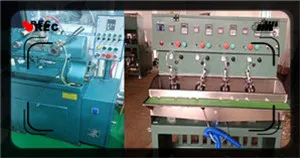

Processing machine

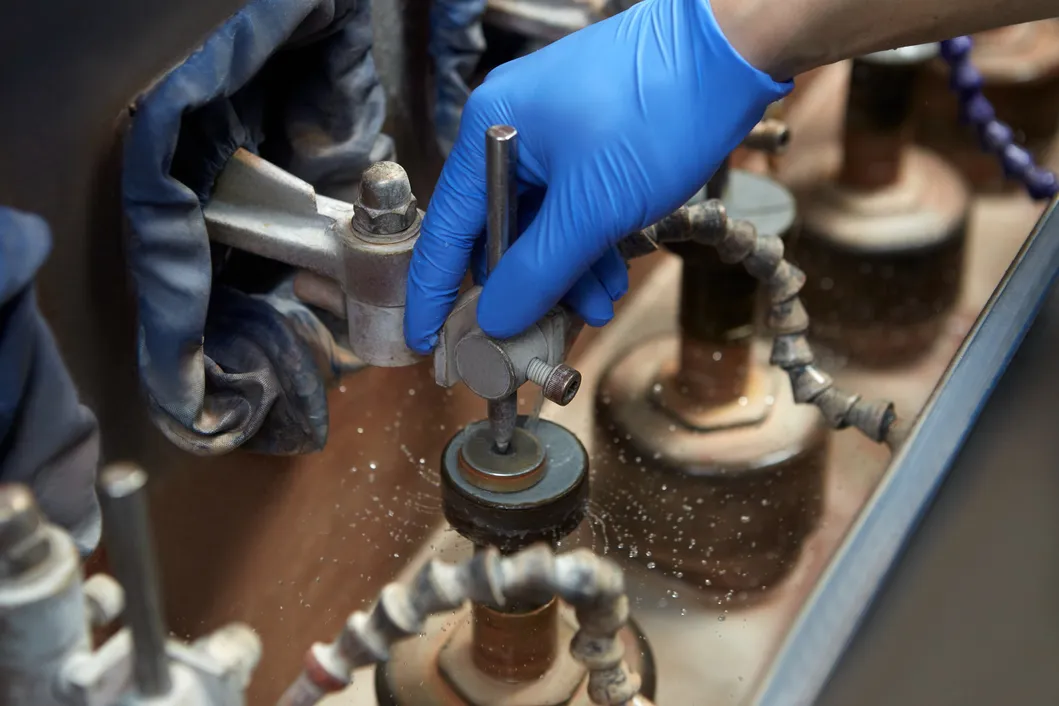

Processing machine
| UV-VIS material | CDGM, Corning ,SCHOTT,HOYA,OHARA , and so on |
| IR material: | ZnSe,ZNS,CaF2 and so on |
| Diameter: | From 1mm ~100 mm |
| Design Wavelength: | Customized |
| Diameter Tolerance: | +0.0/-0.1mm or Customized |
| Paraxial Focal Length: | ±2% or customized |
| Centration: | ≥1arc minutes |
| Surface Figure : | λ/4 -λ/10@ 632.8 nm |
| Surface Quality: | 60/40-10/5 |
| Clear Aperture: | >90% |
| Bevel: | <0.25mm X 45° |
| Coating: | AR&HR |
| Customized |
