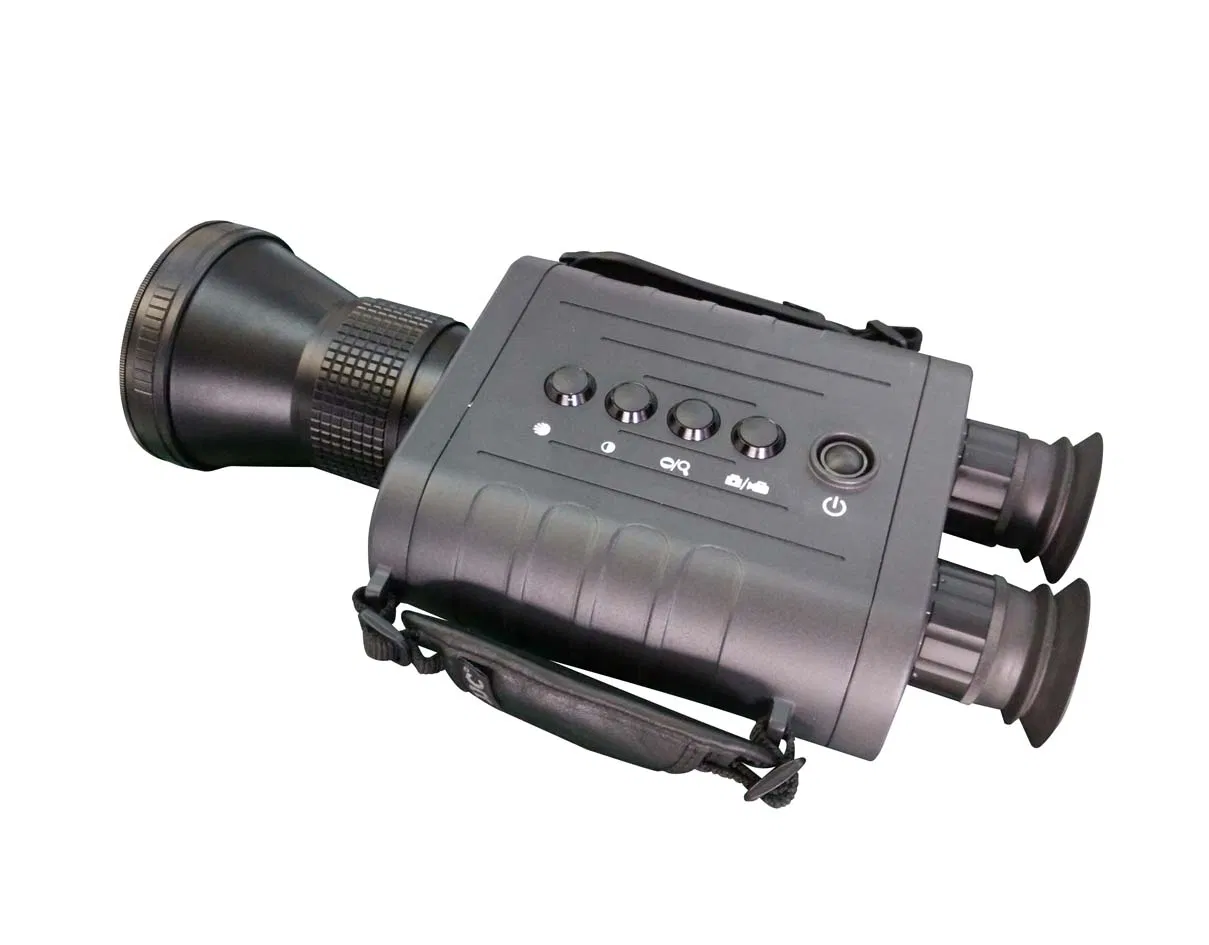

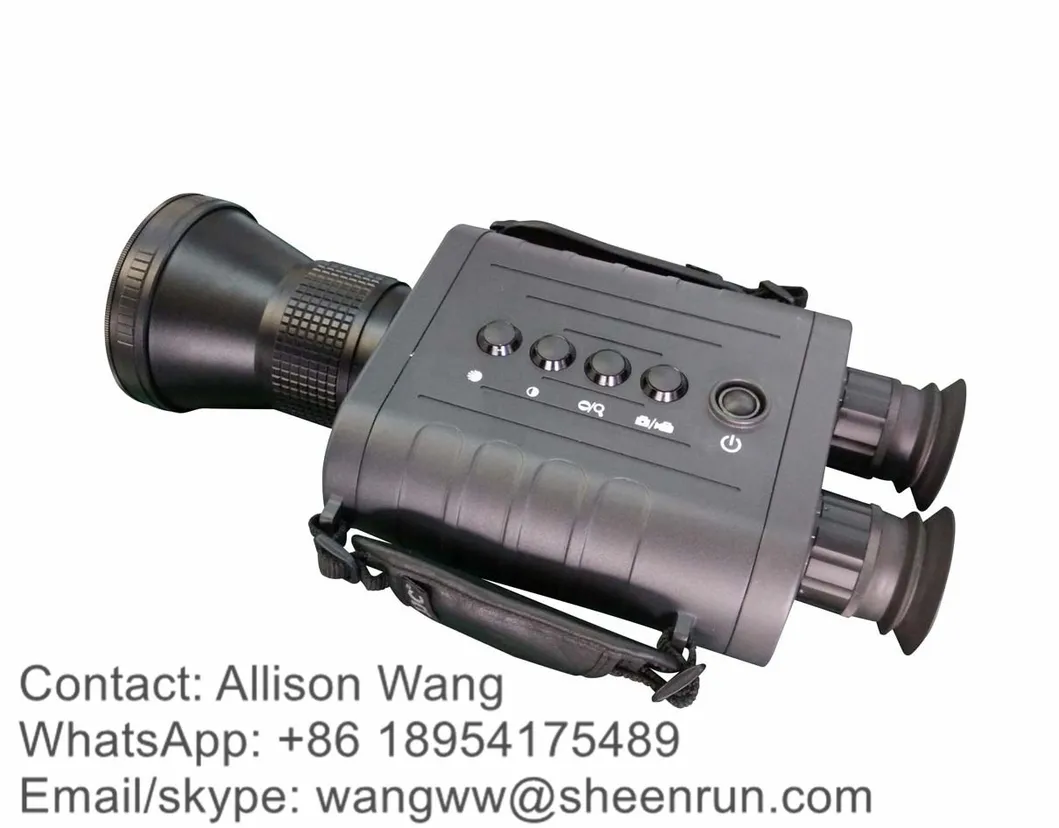

7km Military Portable Handheld Thermal Imager
Features1 324x256 resolution, uncooled Vox detector. 2 25μm, can obtain clear details, and realize longer distance monitoring.3 NETD 50mk.4 First developed 25~100mm 4x continuous optical zooming, can realize large- scale search and also identify distant target. 5 Adopts Image Denoisin......
Send Inquiry
Product Description
Features
1 324x256 resolution, uncooled Vox detector.
2 25μm, can obtain clear details, and realize longer distance monitoring.
3 NETD 50mk.
4 First developed 25~100mm 4x continuous optical zooming, can realize large- scale search and also identify distant target.
5 Adopts Image Denoising tech, DDE tech, output black hot/white hot/palette colors.
6 Low power consumption, quick start, steady performance, clear and smooth images.
7 RS485, analog signal.
8 Easy to operate and maintain.
9 High aluminum alloy shell with nitrogen inside, can work under harsh
environment 24/7.
Technical indicators
Effecting Distance | Detecting distance: 6600m for vehicles, 2400m for people ; Recognition:1650m for vehicles,600m for people Identification:800m for vehicles,300m for people |
Detector | Fourth generation of uncooled focal plane infrared detector; resolution at 324×256 pixels; spectrum range 8~14μm; NETD 50mk |
Lens | F1.2 GE lens, FOV 6.2°×4.7°~24.6°×18.5°; Lens: 25~100mm GE ; Electric focusing |
Image Processing | 1.Built-in correcting circuits, no need of TEC; working temperature -40~+75ºC, good picture uniformity 2. Dynamic Detail Enhancer(DDE) 3. 9 pseudo color and hot black/hot white formats 4. Automatic Gain Control(AGC) technology 5. 2x digital magnification |
Interface | 1. RS485(PELCO D protocol, Baud rate 2400bps/s), RS-232(optional) 2. OSD menu 3. PAL compound video output 4. AC220V/AC24V/DC12V(optional) 5. waterproof navigation outlet |
Size and Weight | 1.size: 300mm × 150mm × 150mm 2.weight: 5Kg |
Others | 1.working temperature: -25ºC~+60ºC 2.storage temperature: -40ºC~+85ºC 3. under PH6.5~7.2, continuous spraying fog for 48 hours 4. power consumption: 8w(normal) 5. anti-vibration 15m/s² 5~200Hz 6. anti-impact: 150m/s²11ms |

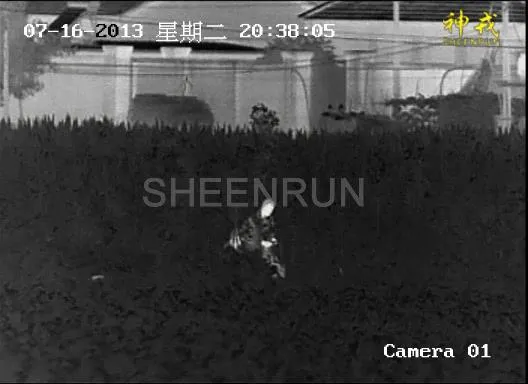

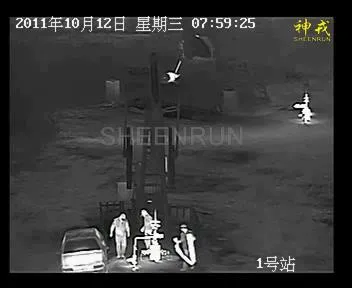

Effect Demo
Our Services
(1) We generally offer one year warranty. Extended warranty is also available.
(2) Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed.
(3) We accept OEM.
(4) We offer customized product.

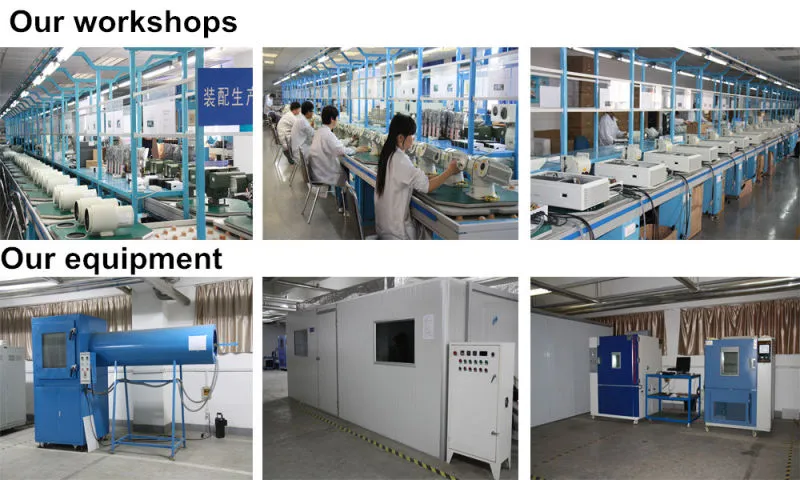

Company Introduction
China Sheenrun Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, Sheenrun adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market.
